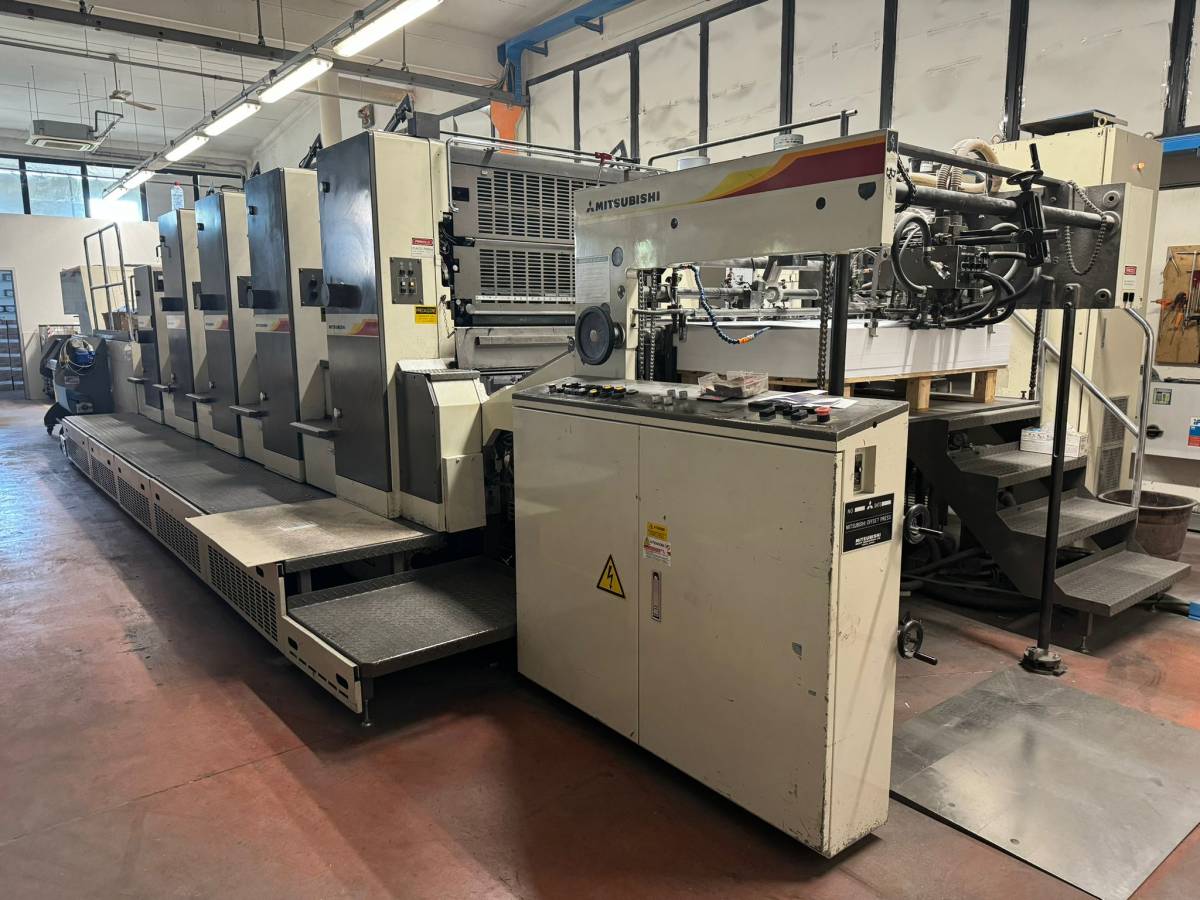

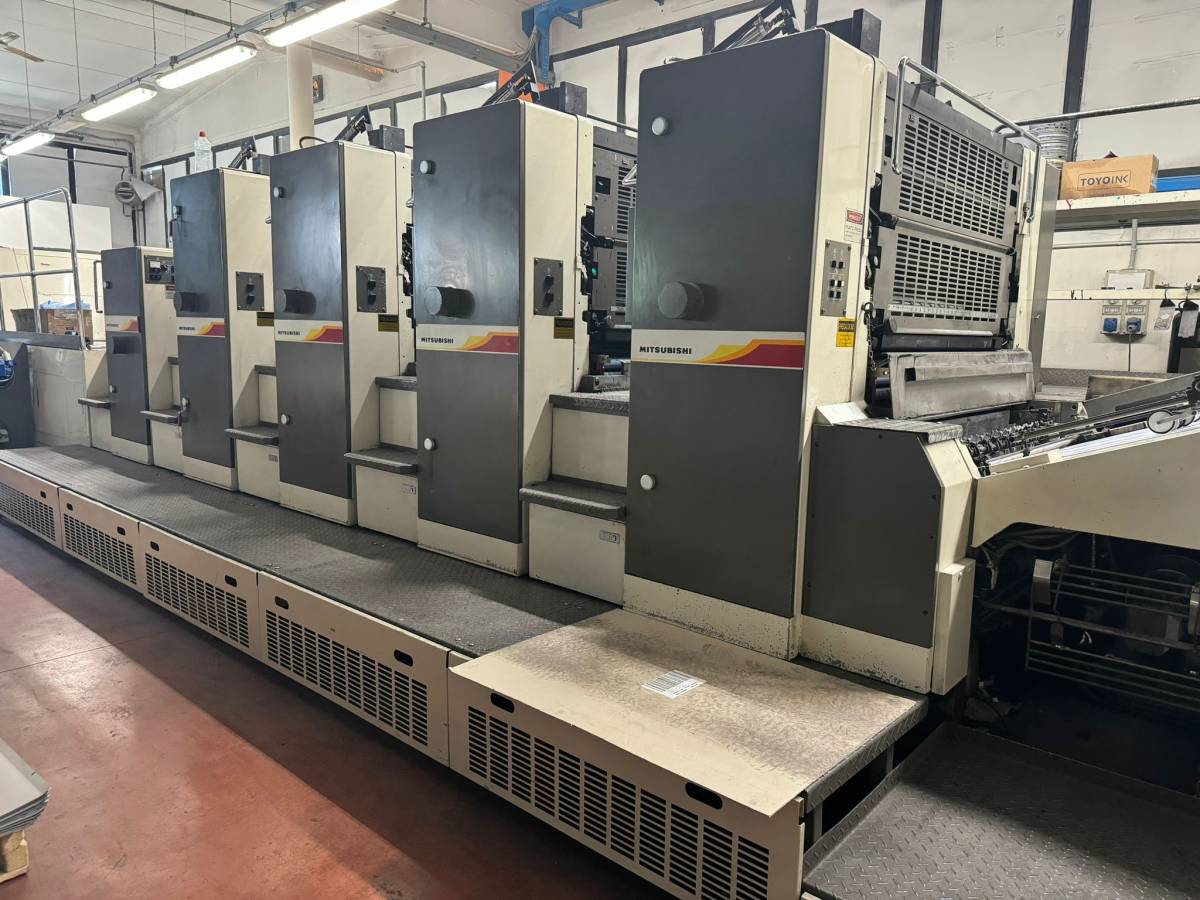

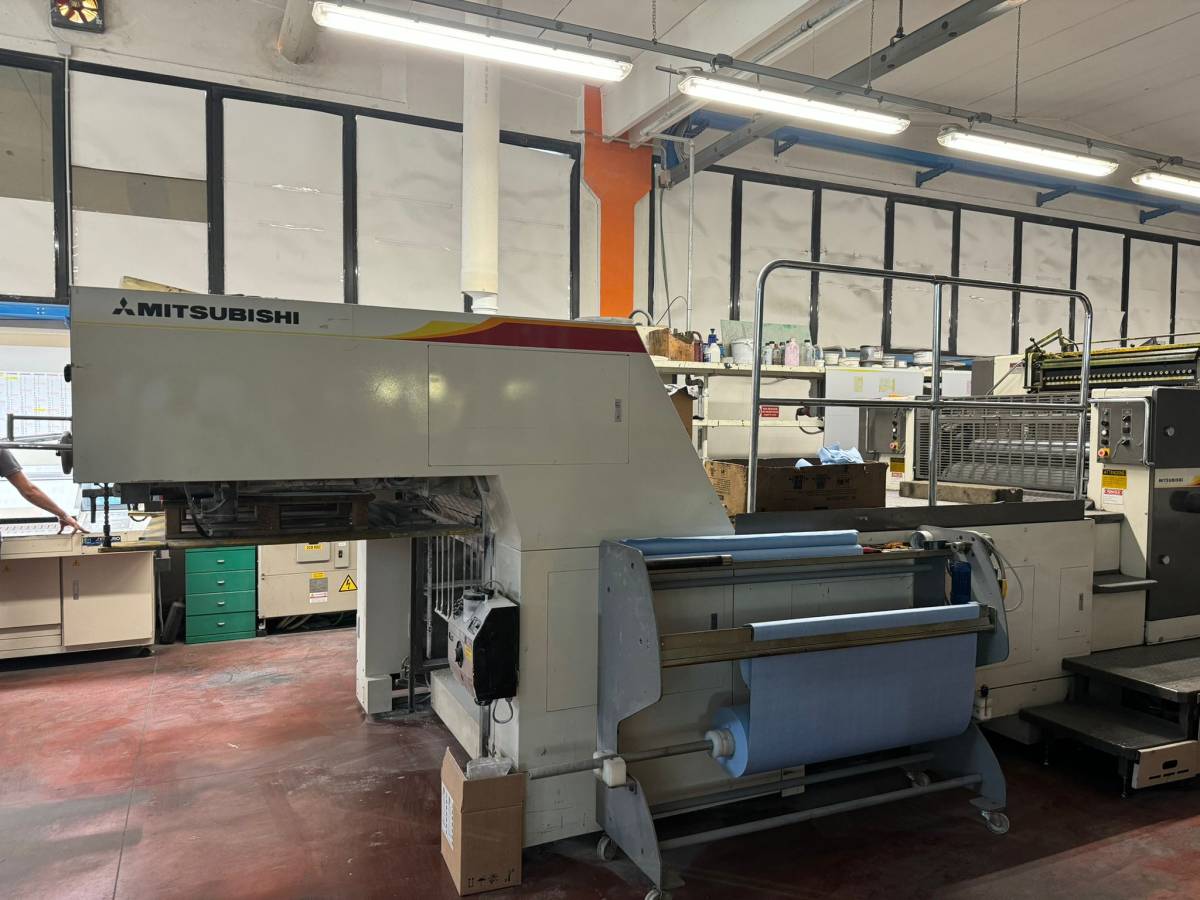

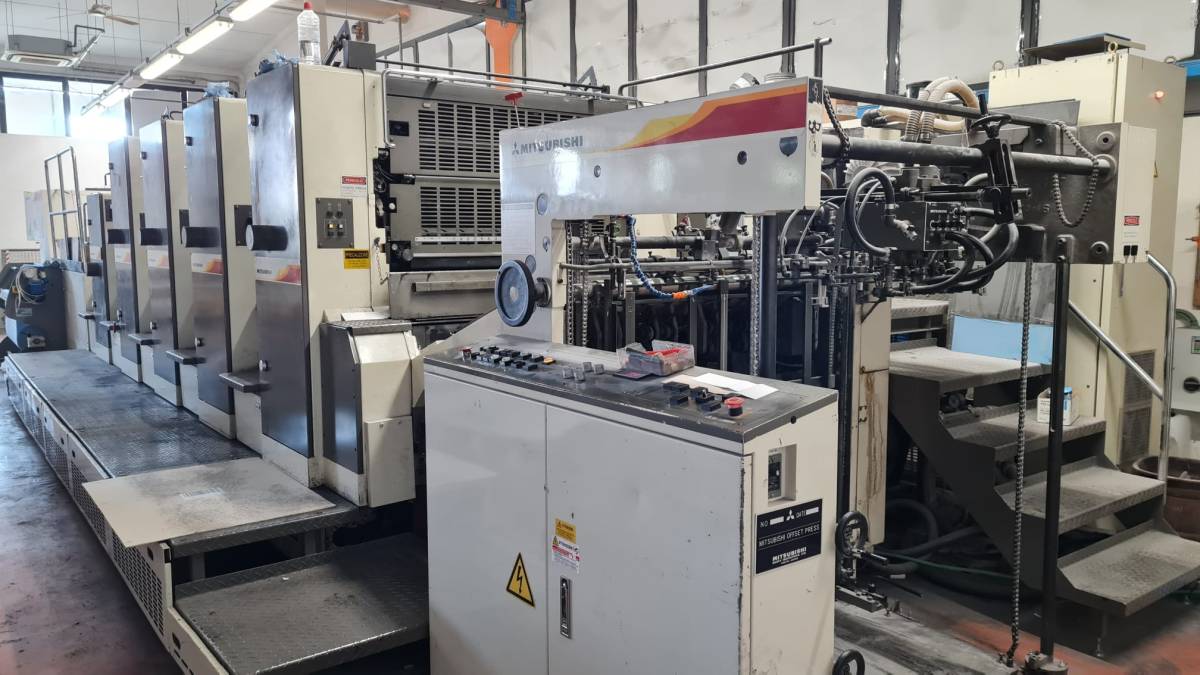

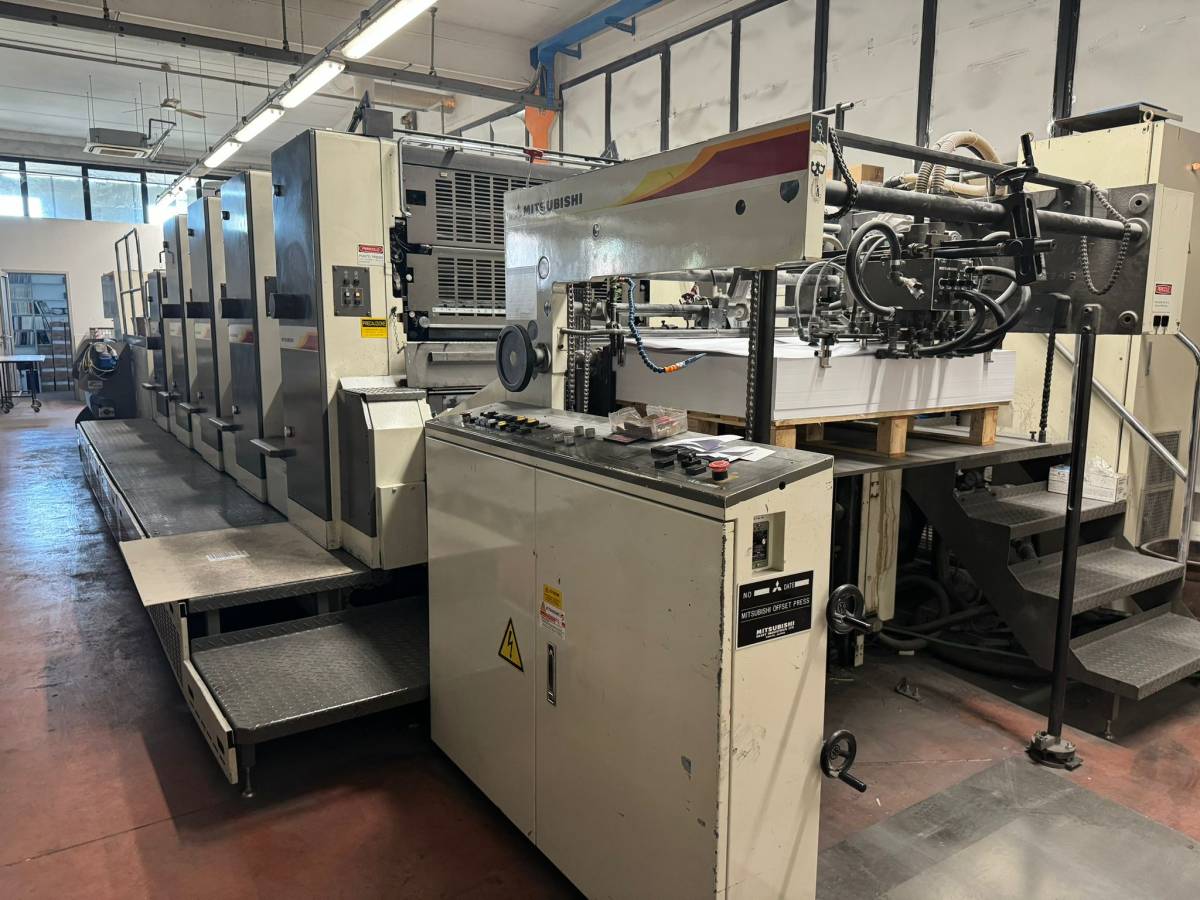

Mitsubishi 3F-4 TC-ED + L
| Reference | 24036439 |
|---|---|
| Type | Sheetfed Offset/Offset a foglio |
| Manufacturer | Mitsubishi |
| Model | 3F-4 TC-ED + L |
| Year | 1998 |
| Serial Number | 3F 1501 |

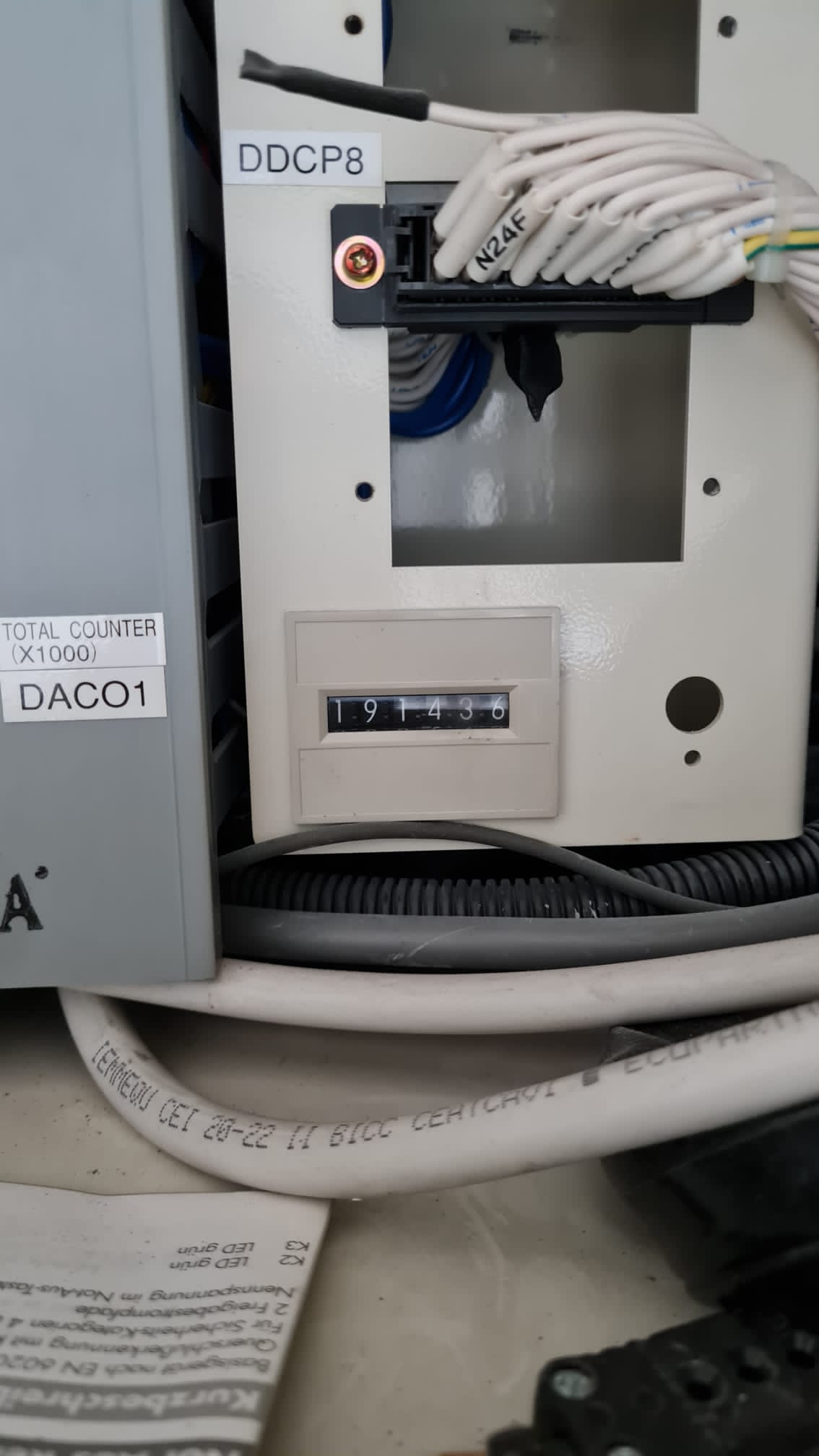

| N.of Impressions | 191 |
DETAILS
| Visible | In production |
|---|---|
| Availability | 02/12/2024 |
| Max sheet size | 720 x 1020 |
| Min sheet size | 360 x 540 |
| Max print size | 710 x 1020 |
| Material Thickness | 0,04 - 0,6 |
Accessories

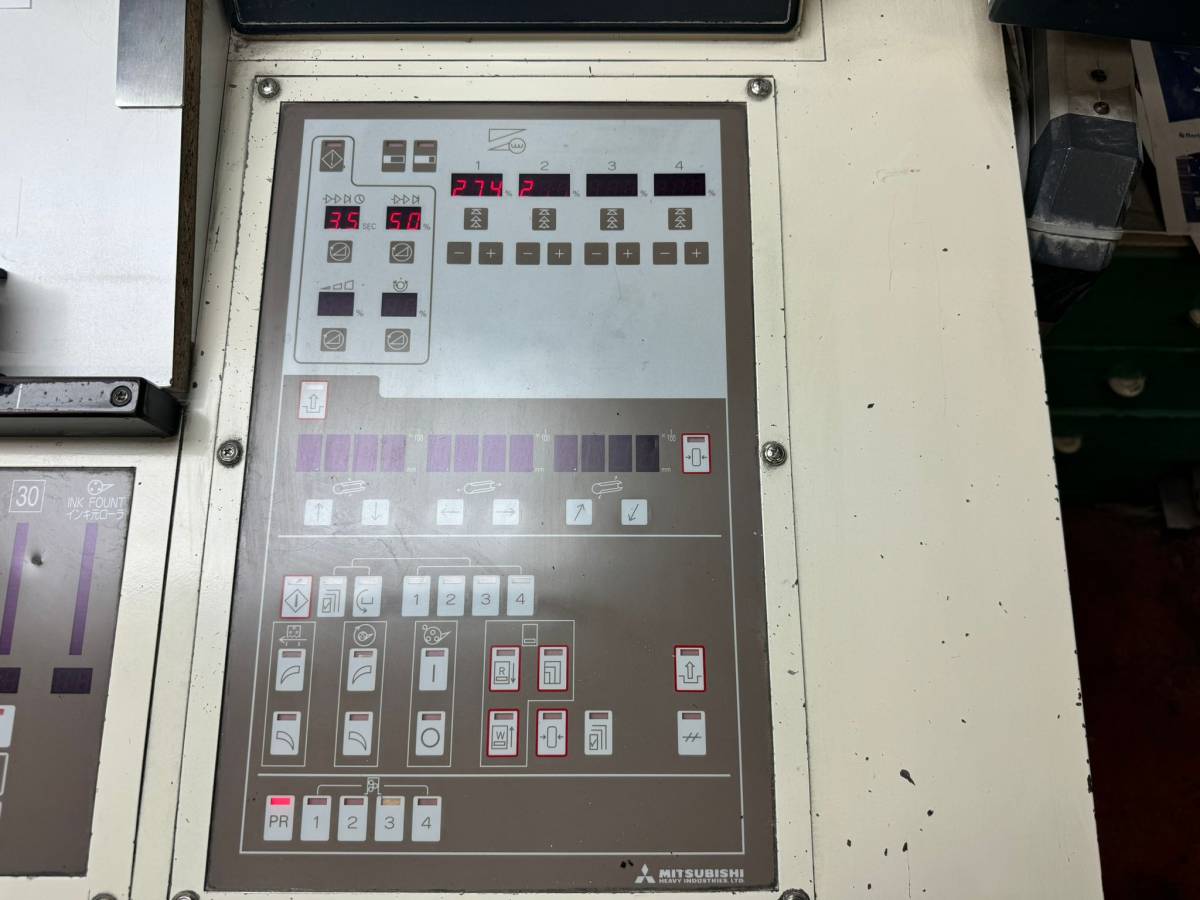

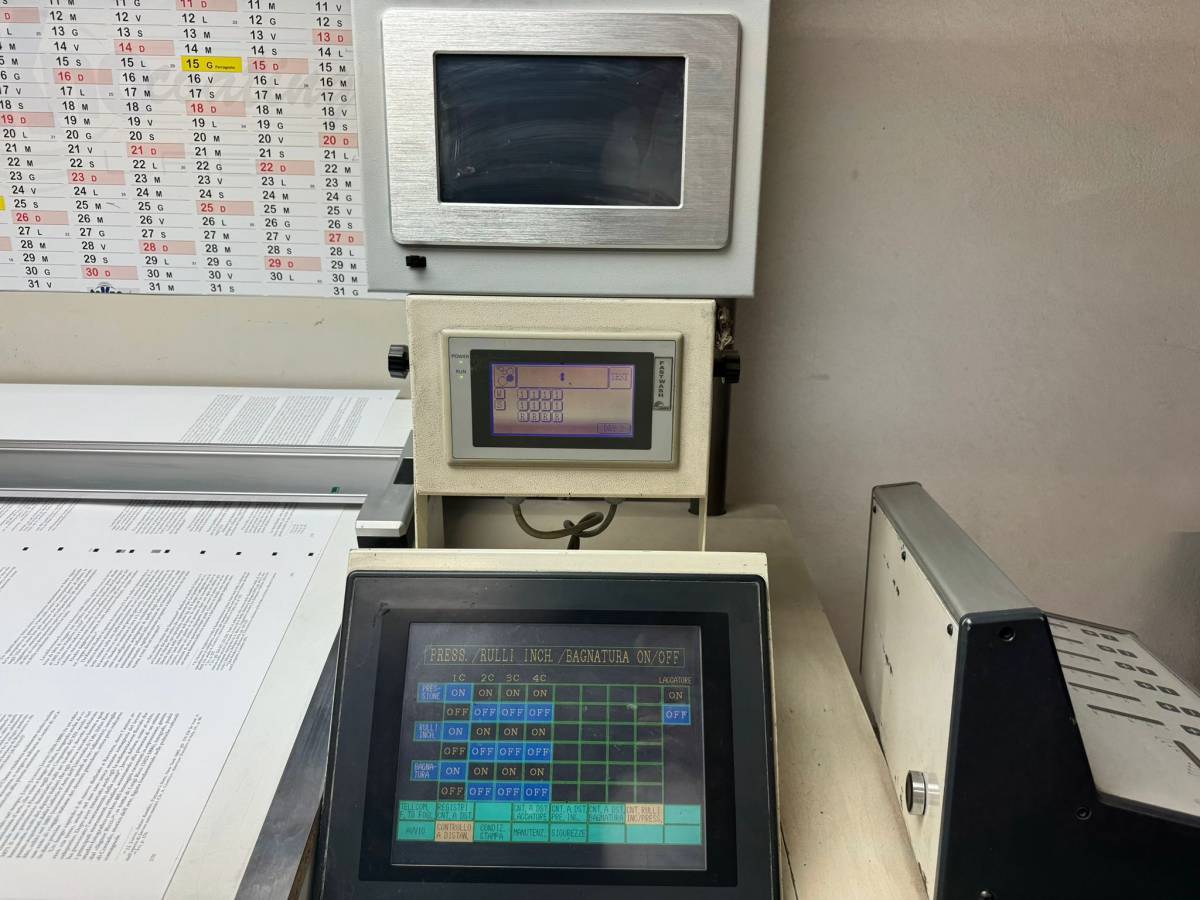

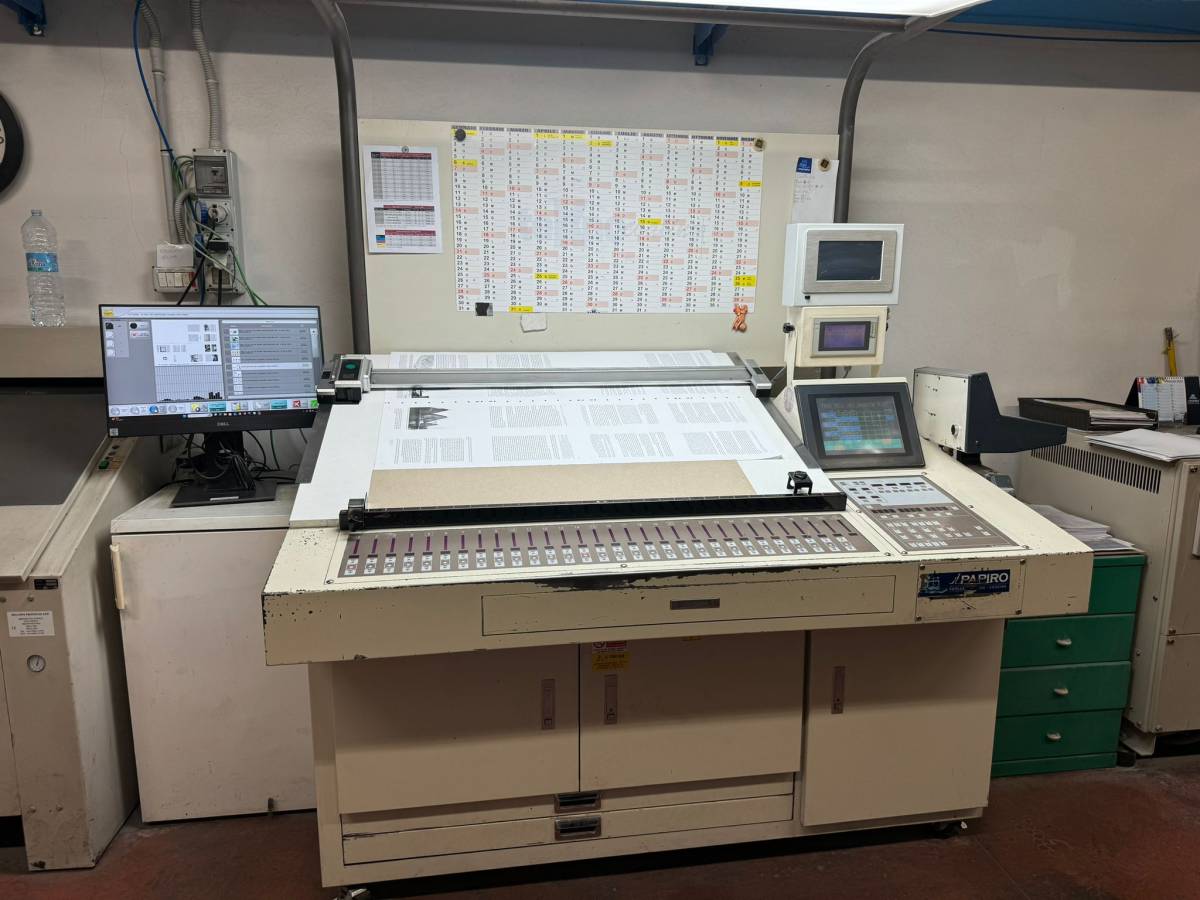

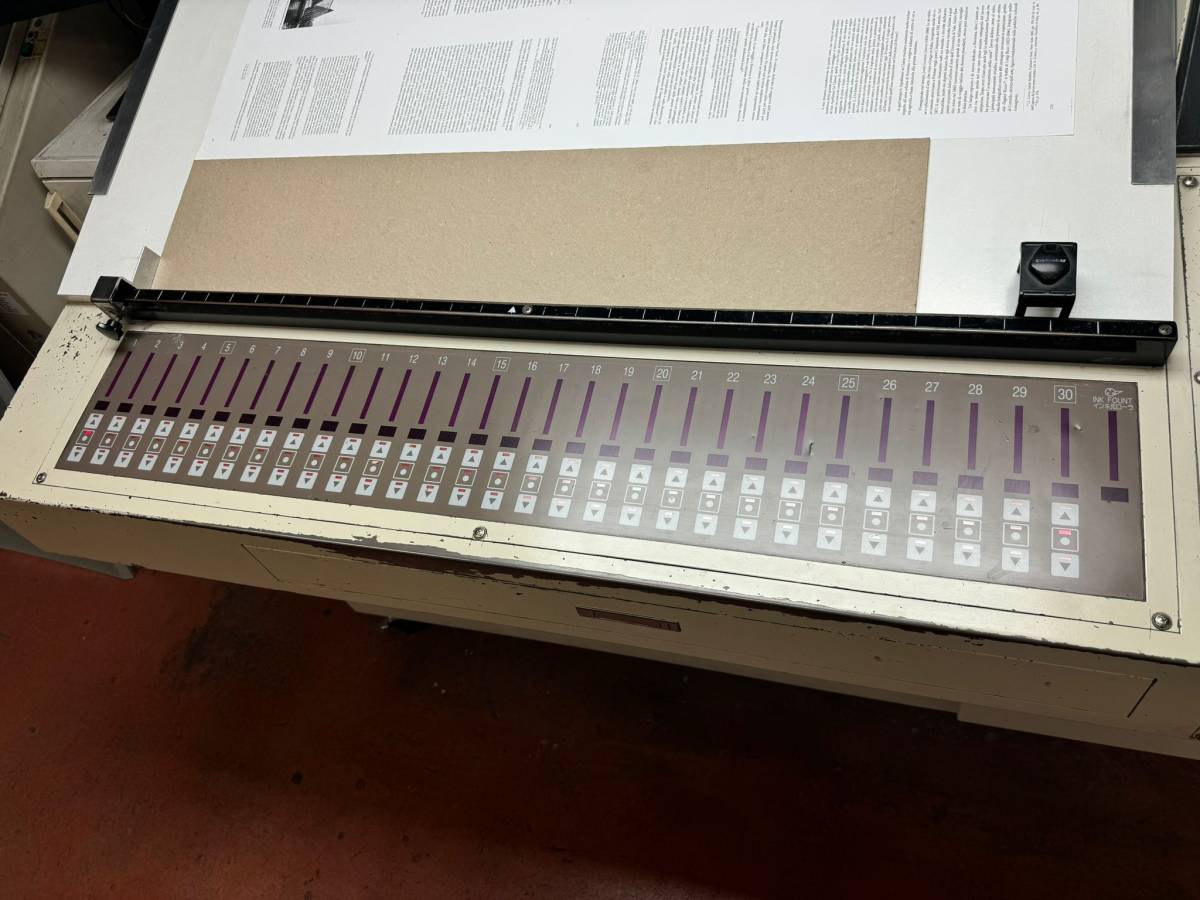

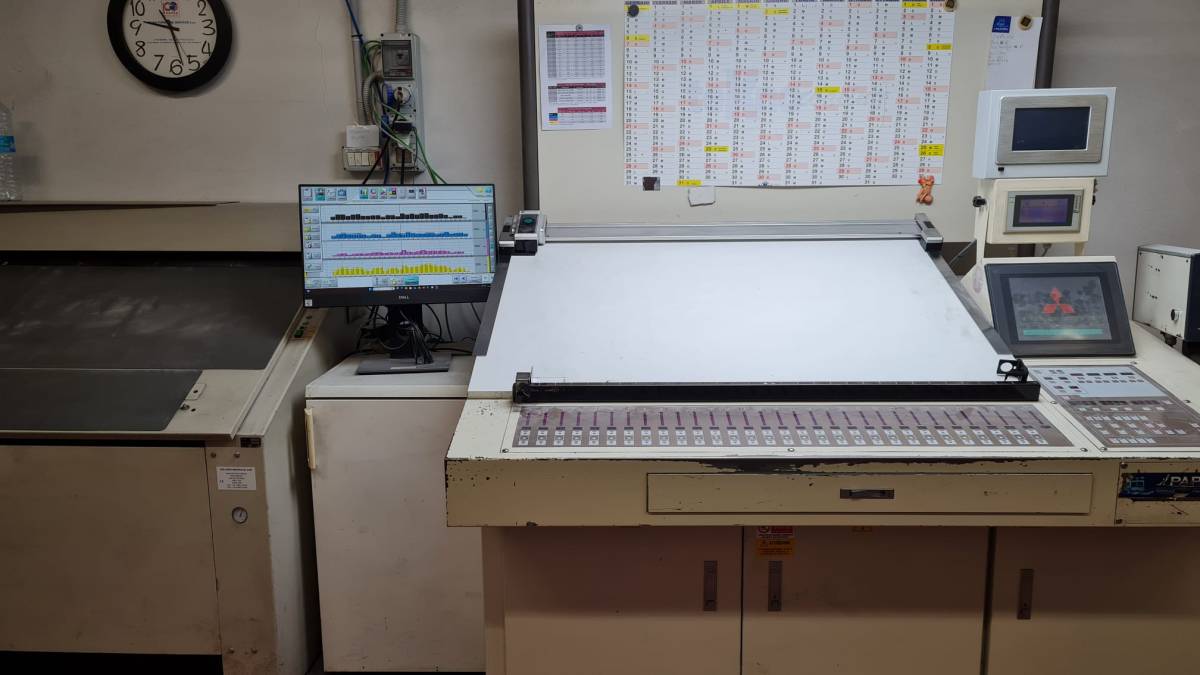

- Comrac: Console ink, axial, circumferential diagonal remote control
- Mechanic double sheet control
- Steel infeed table with sheet-blocking suction

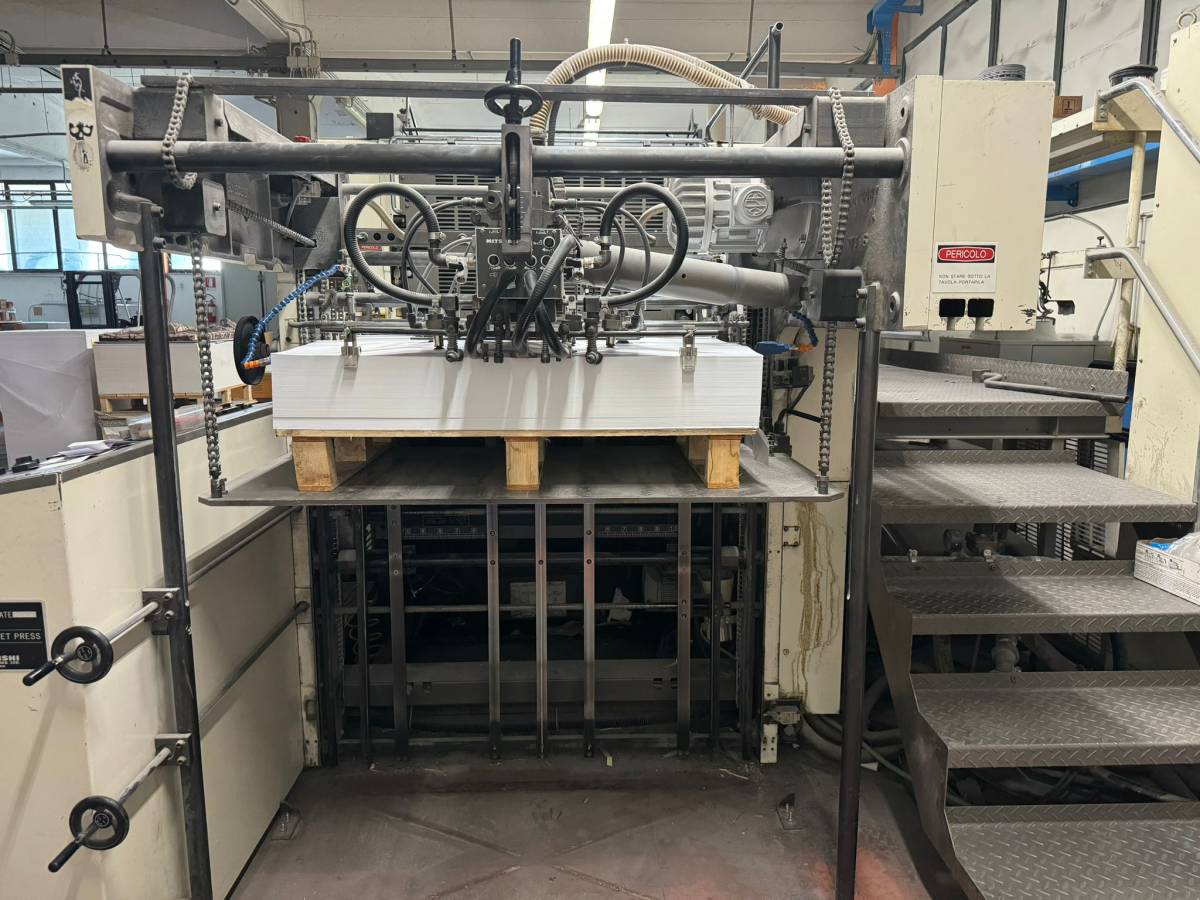

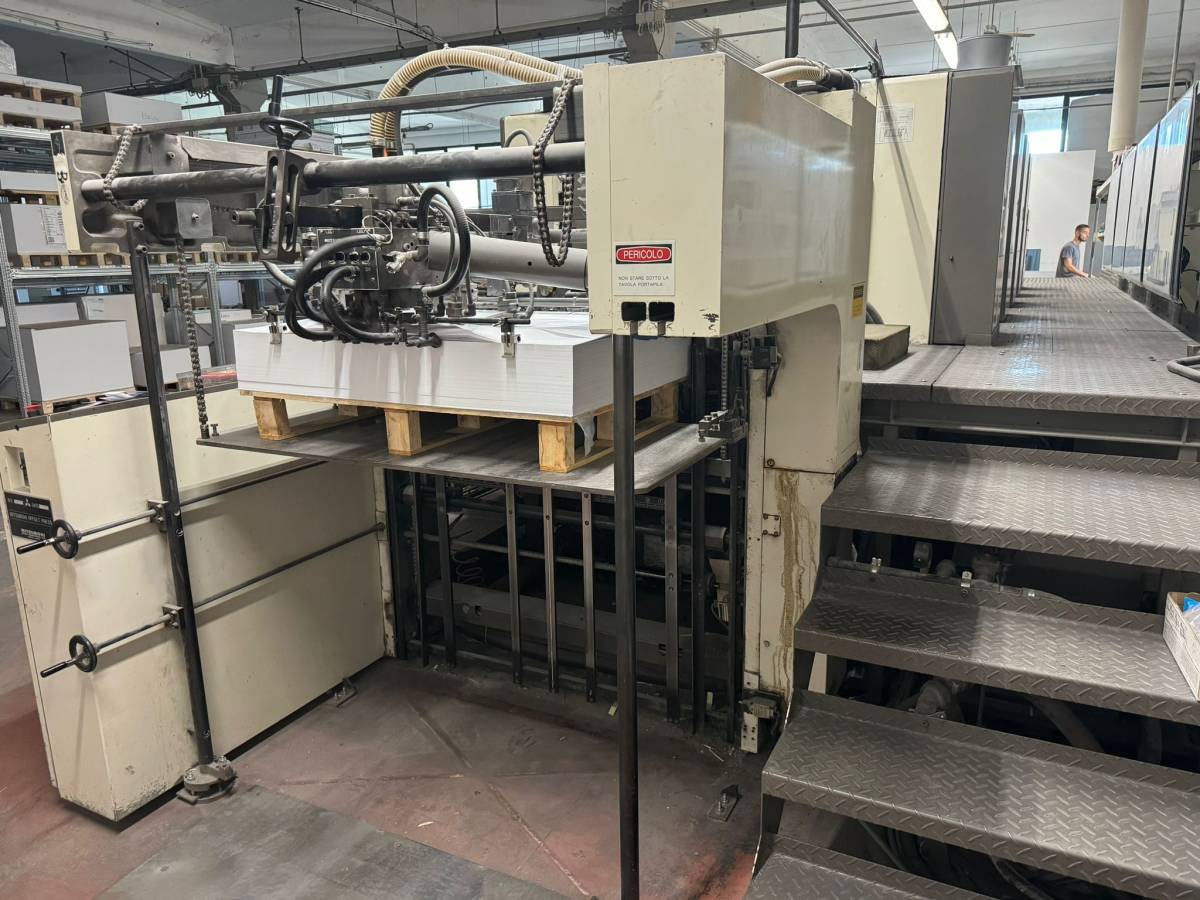

- Original Head feeder MHI
- Sheet deceleration system on front registers
- Antistatico on feeder
- Remote controlled feeder timing system
- Non-stop on feeder
- SAPC Autoplate
- Automatic roller wash-up device
- Blanket cylinder with anti-shock damping system
- Plate and blanket cylinders in metallic steel
- Self-adjusting double conic bearing cylinder support
- Sectors ink blades
- Ink zone reset procedure
- Automatic blanket wash-up device with cloths
- Double diameter impression cylinders
- Double diameter transfer with ICP covering
- Special grippers and pad-grippers for IR Dryer
- Automatic positioning of plate cylinders for Autoplate
- Cylinder arrangement 7 o'clock: Transfer of fully printed sheet from print cylinder to transfer cylinder
- Hybrid rollers

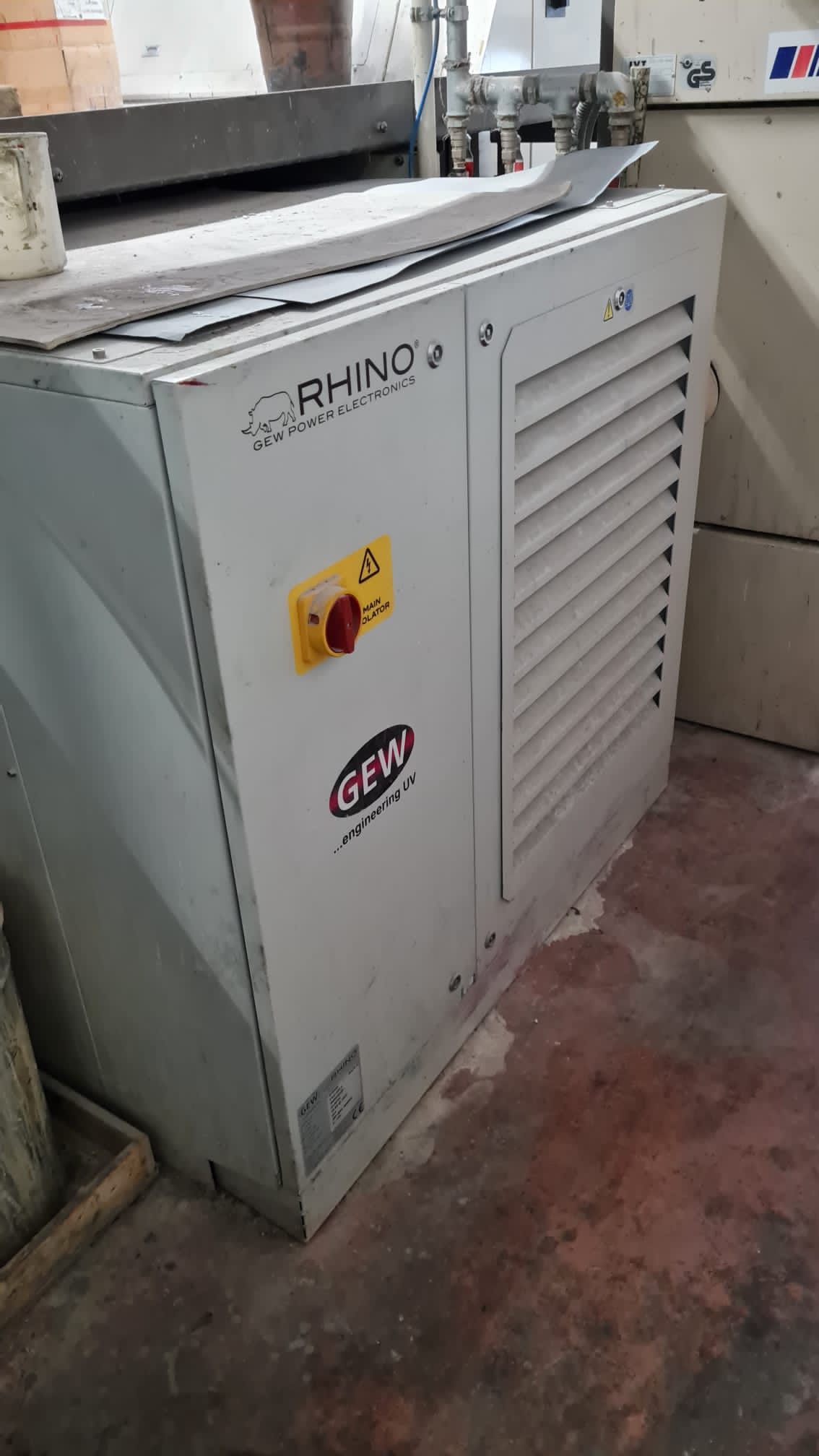

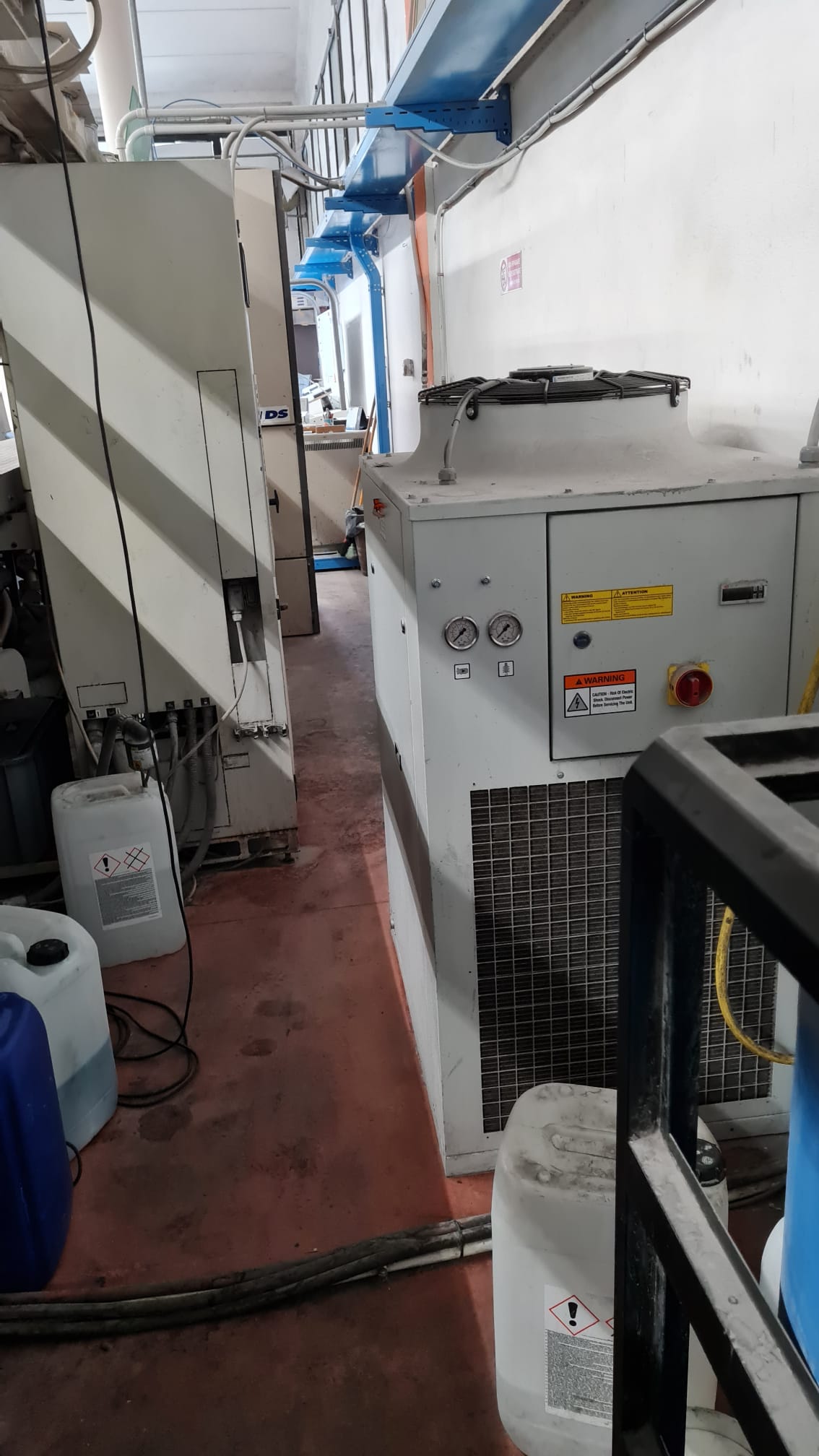

- GEW LED UV System with 2 interdeck with chiller
- Alcool Mitsubishi trivalent damping

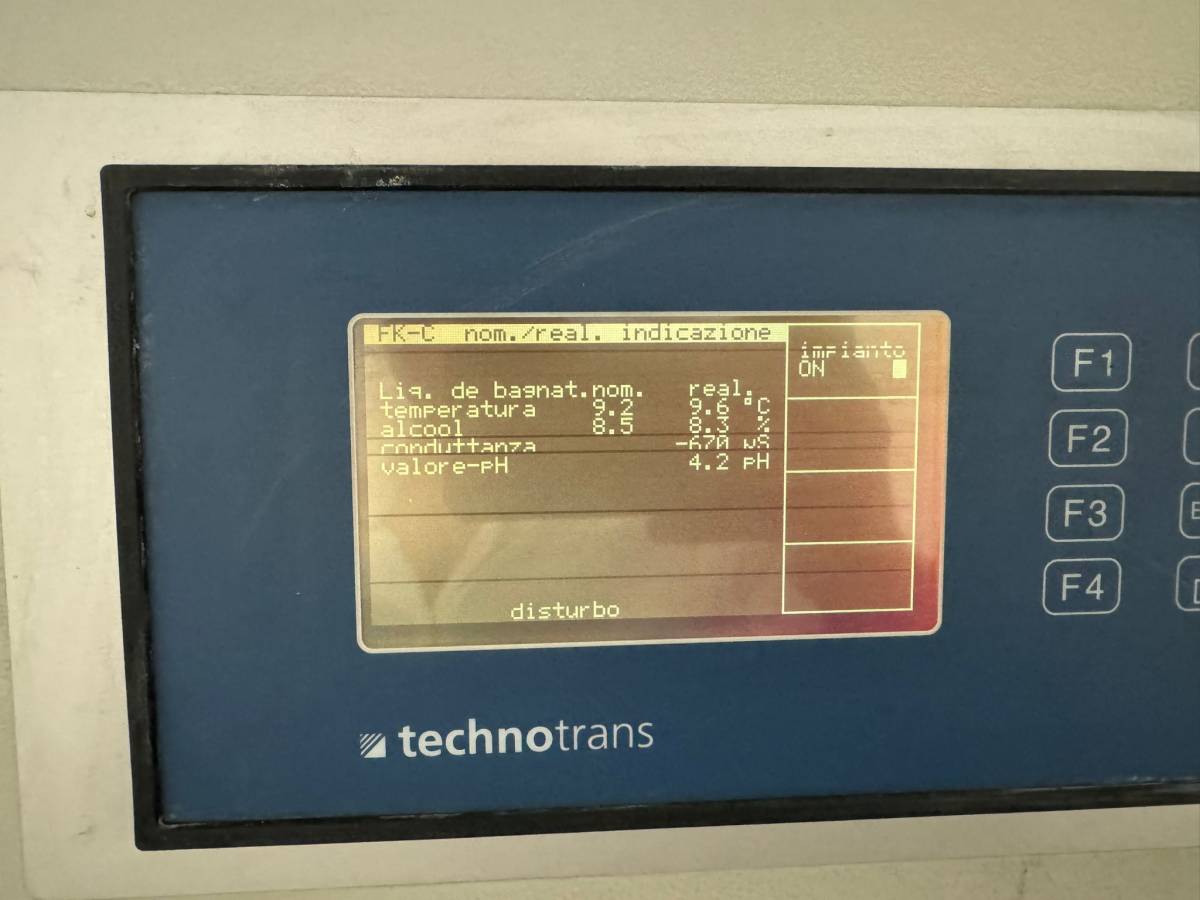

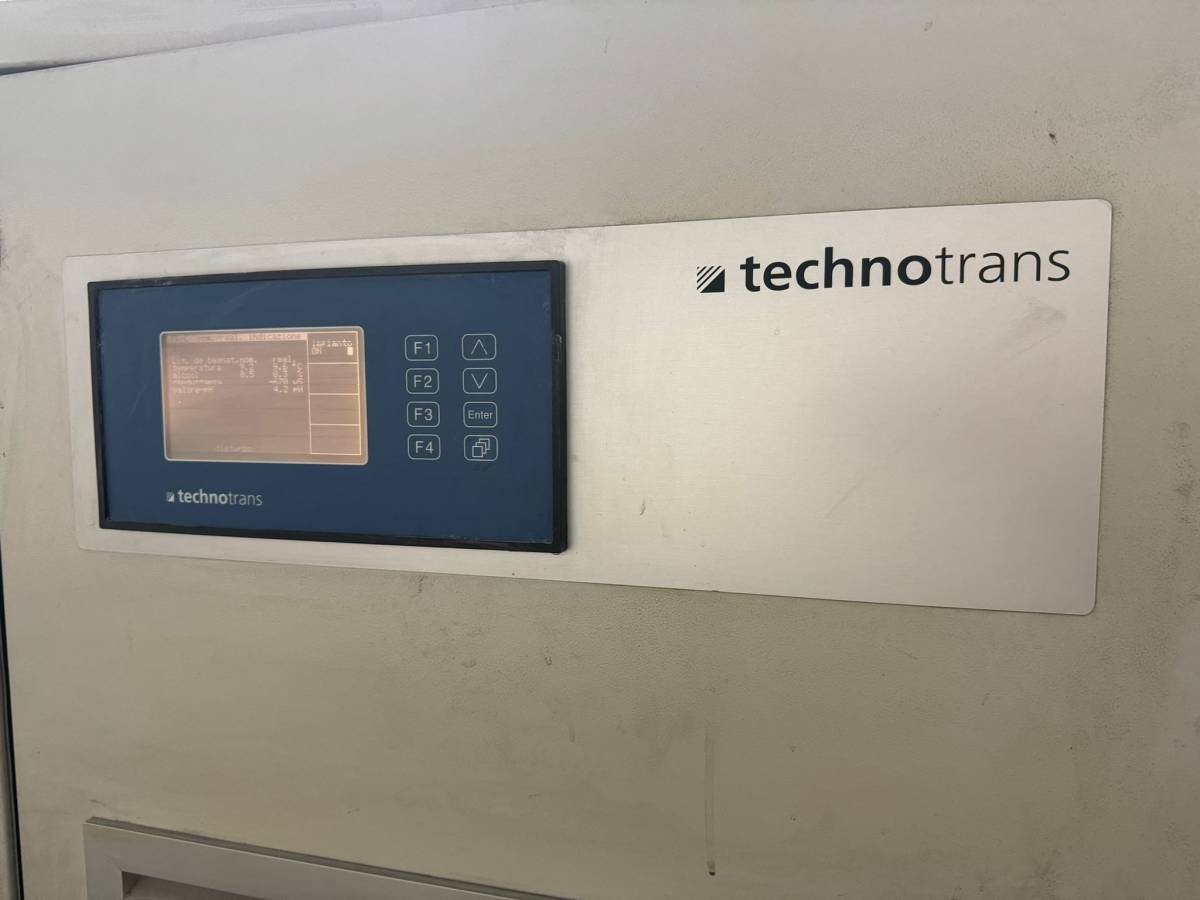

- Technotrans cabin for damping and ink temperature control
- Coating Unit with rollers

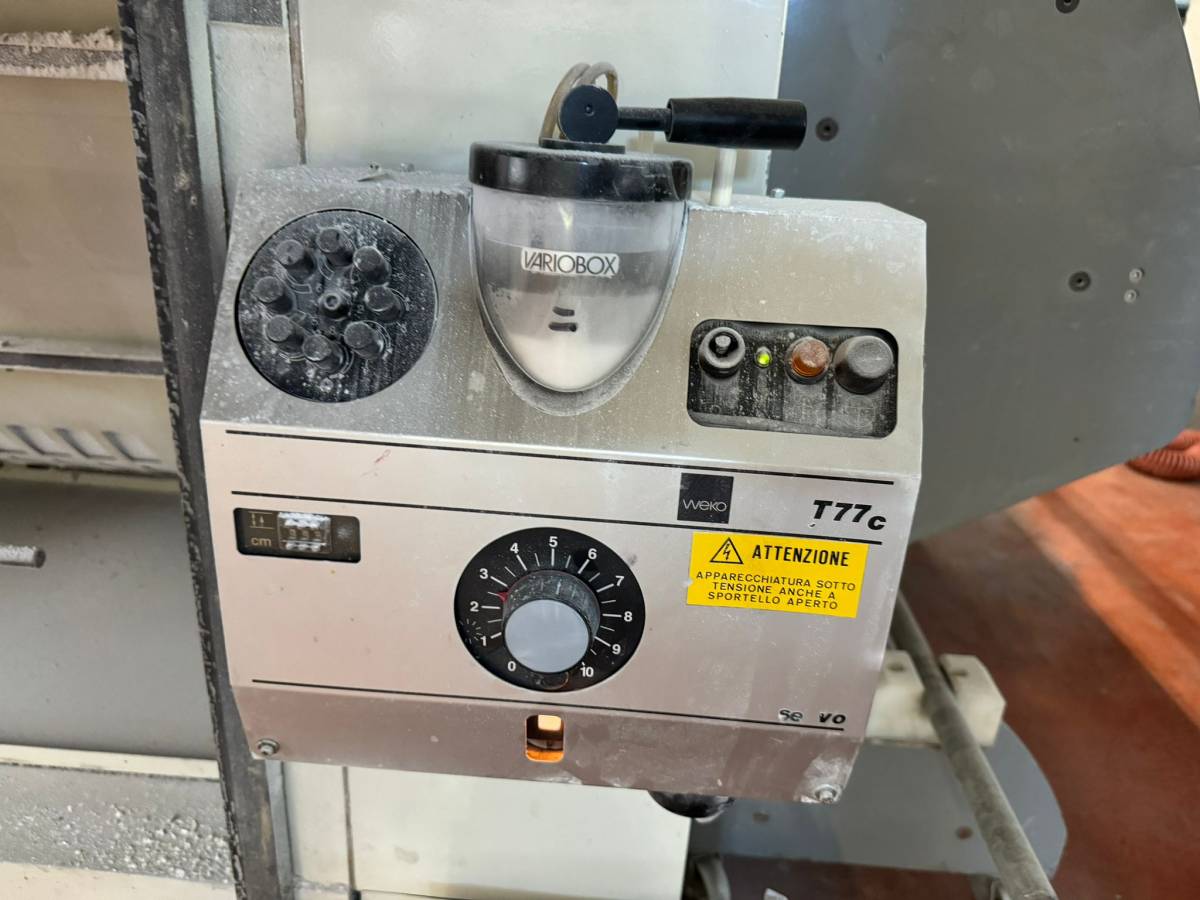

- Weko T77c powder spray

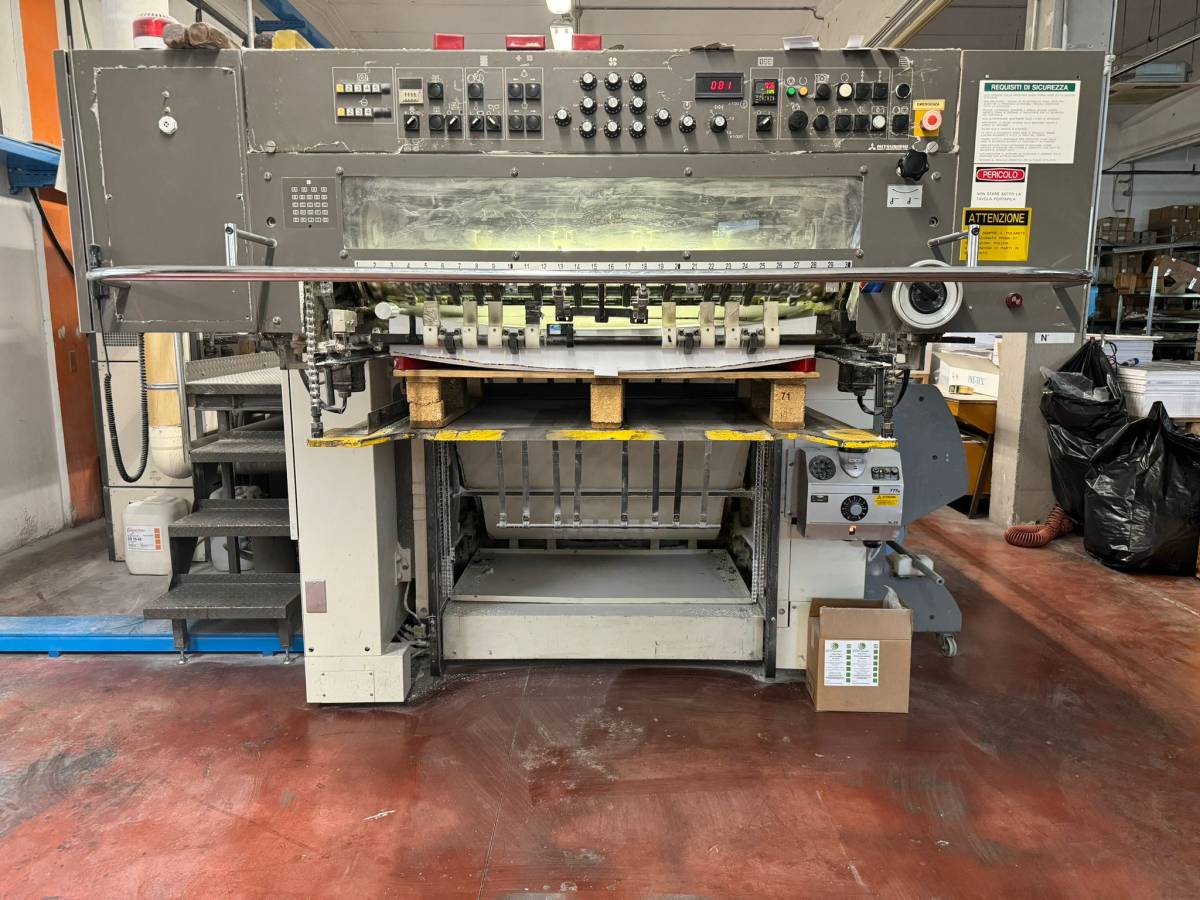

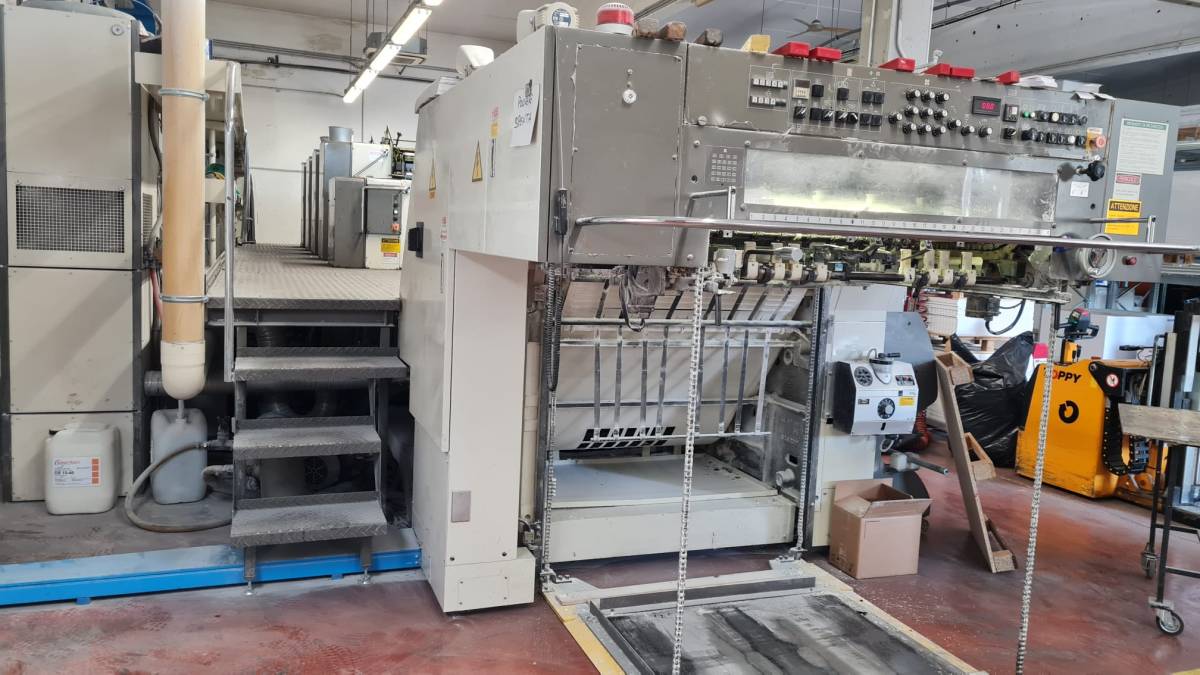

- Extended Delivery
- Variable speed suction brakes longitudinal laying
- Sheet brake
- 3-sided stack extraction
- Automatic lubrication of chains on delivery
- Non-stop on delivery
- Light paper device on delivery device with fans

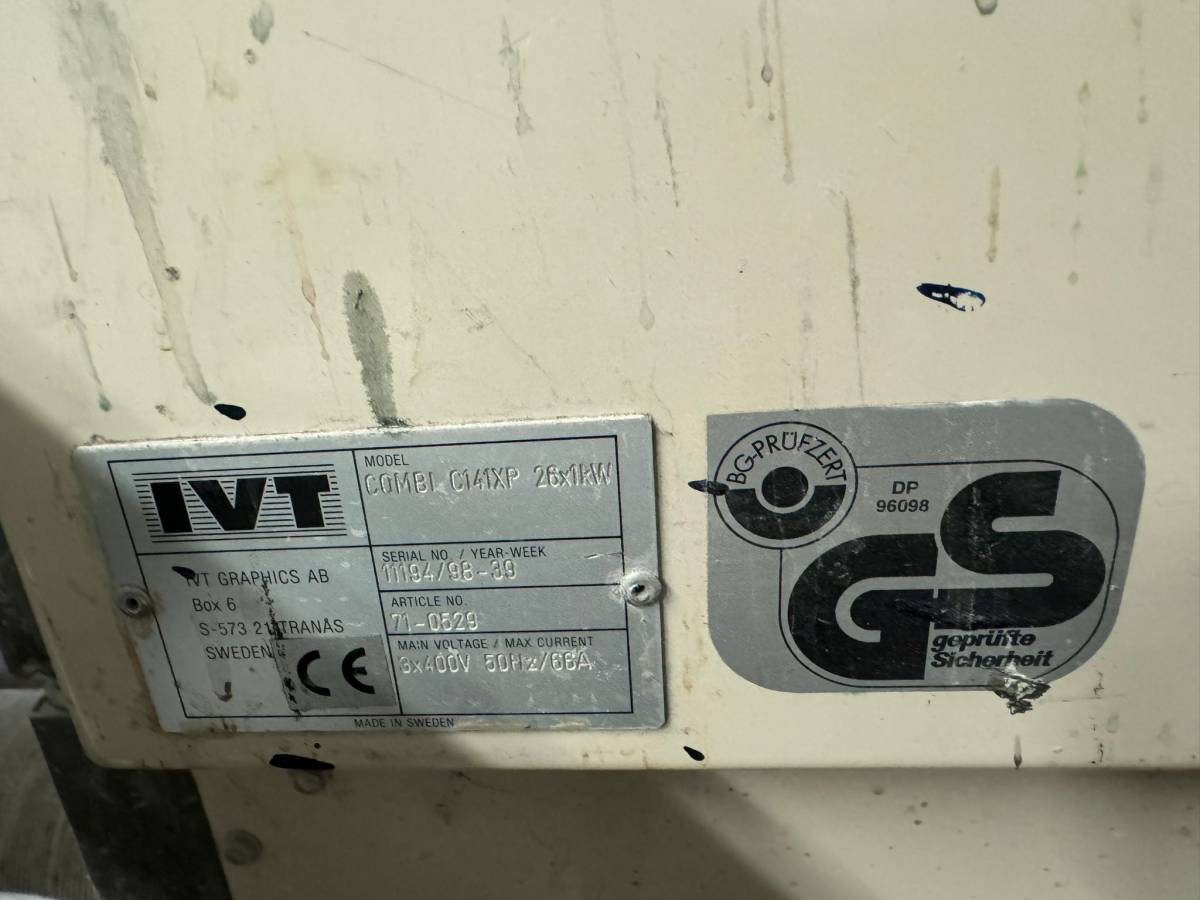

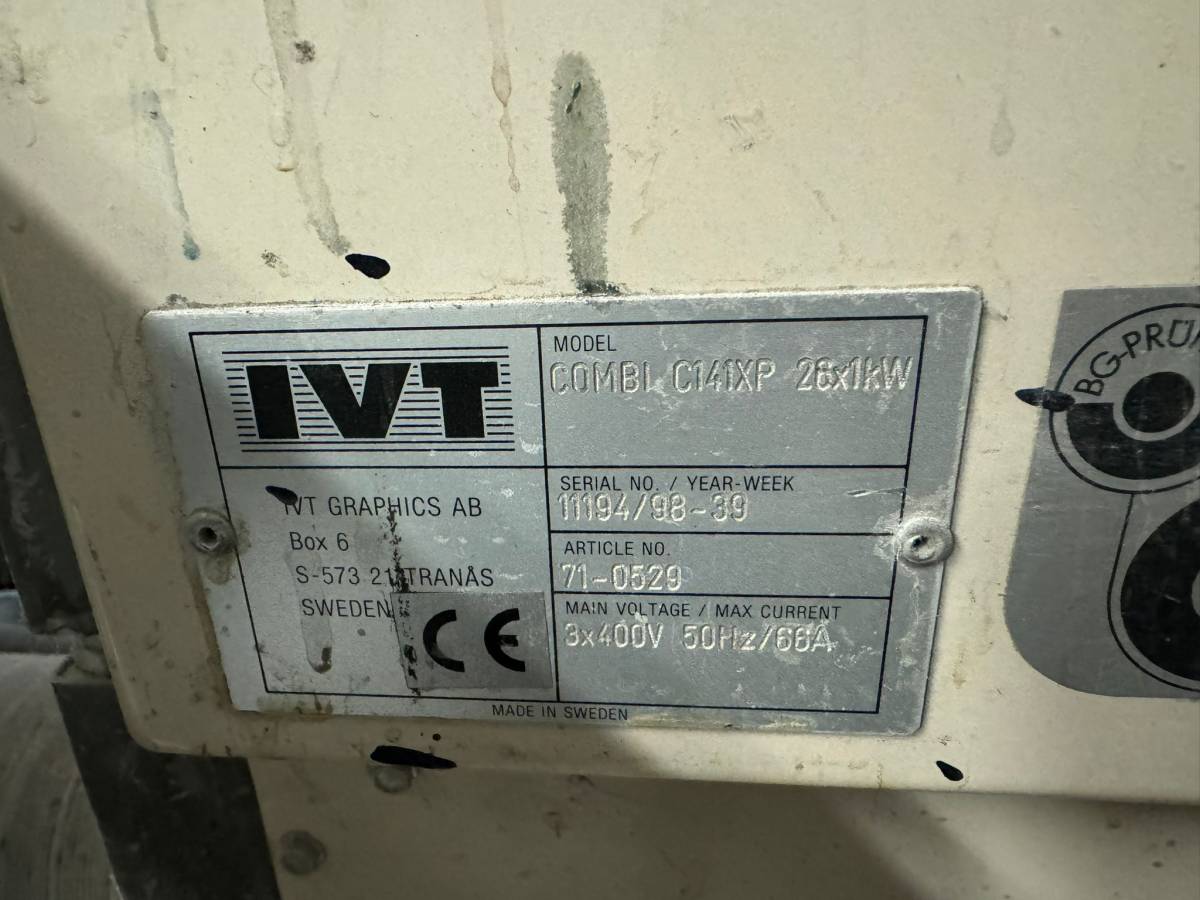

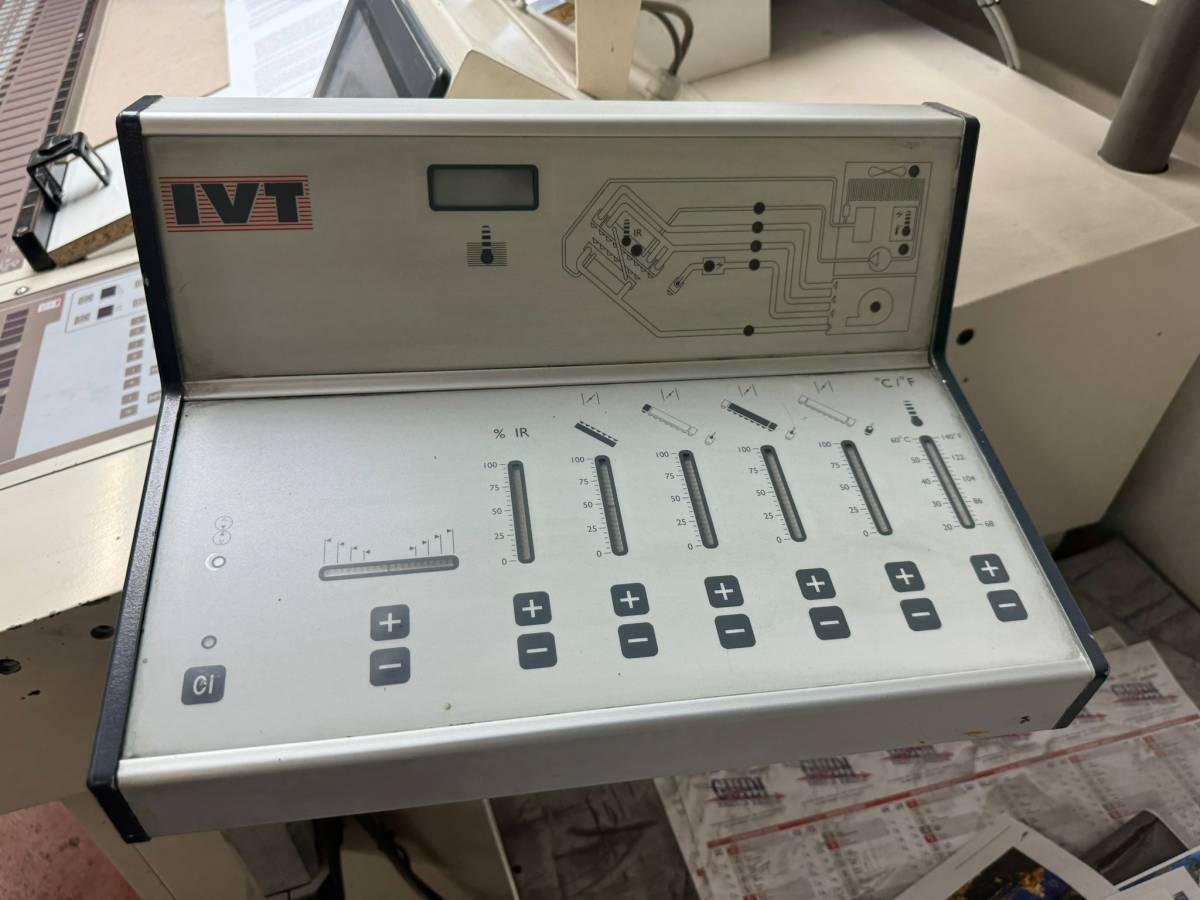

- IR/Hot Air IVT Combi C111
- 13.000 speed/h
- Printable tickness capacity from 0.04 to 0,6 mm.
- LED UV lamps NOT included
- Dimensions in mm.: 11.600 x 3.800 x 2.100
- Automatic centralized forced oil lubrication system
- Torque wrench for inkwell closing and rubber pulling
