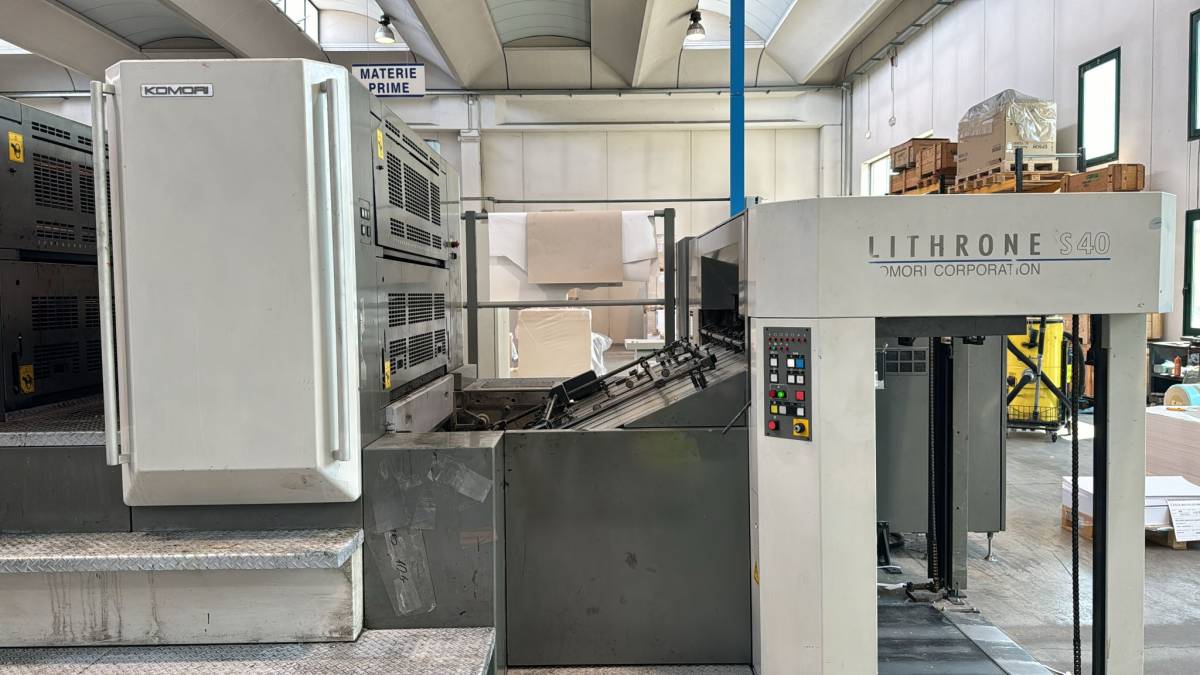

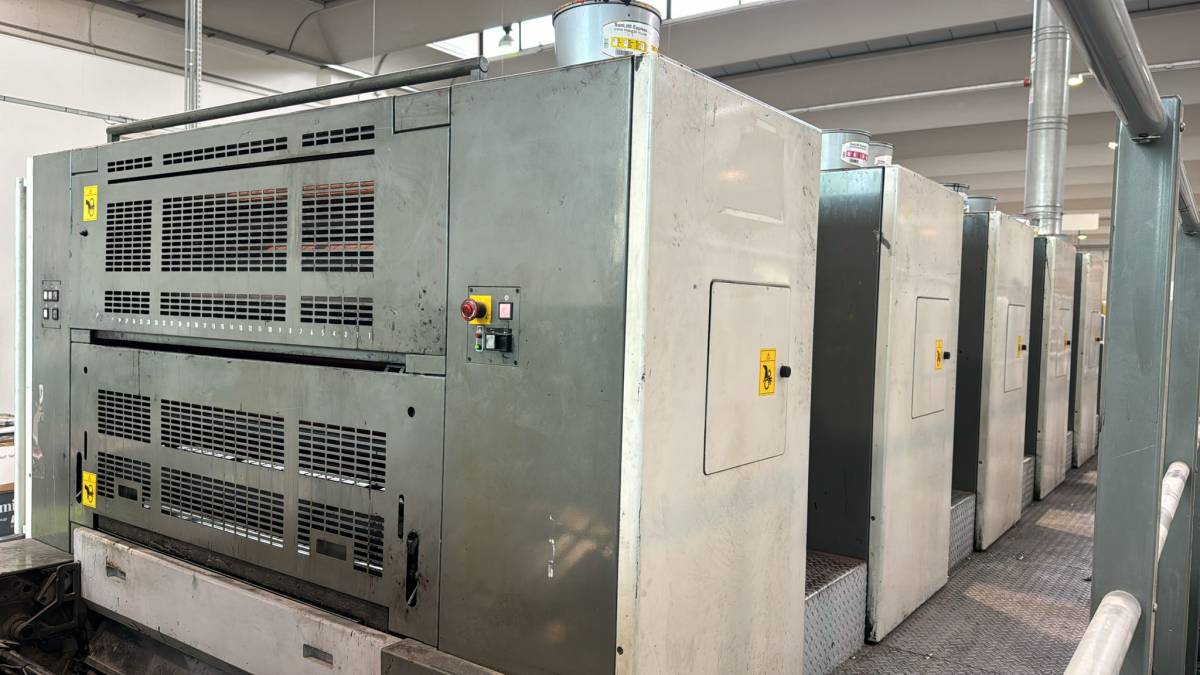

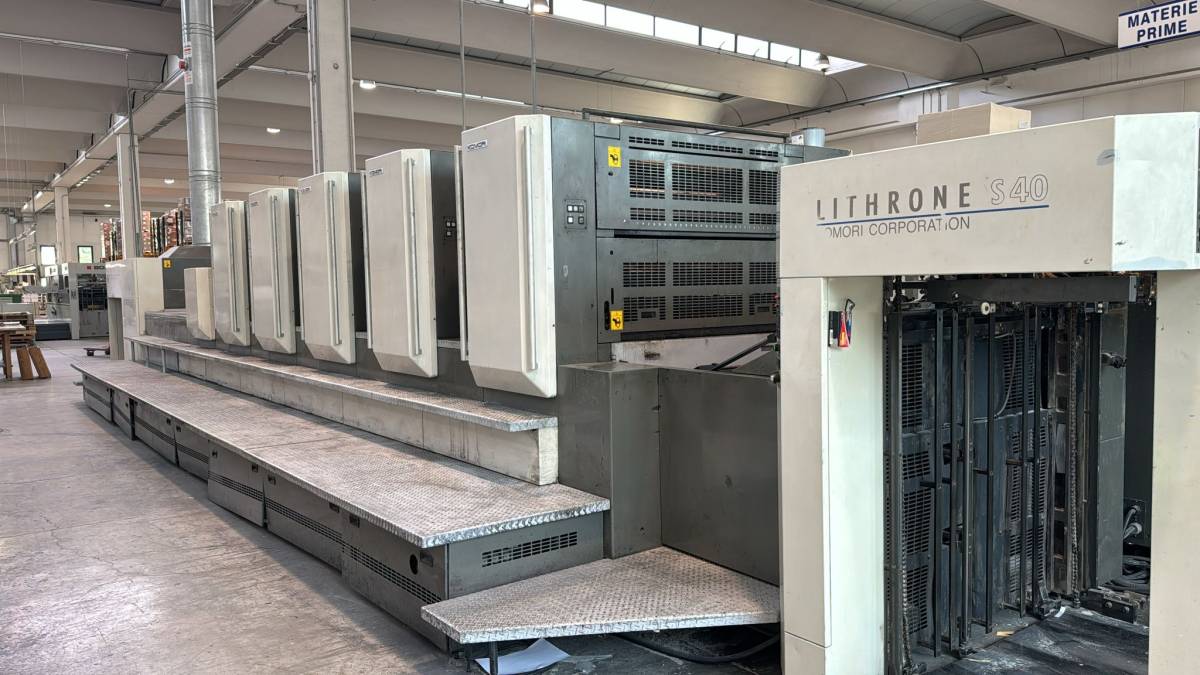

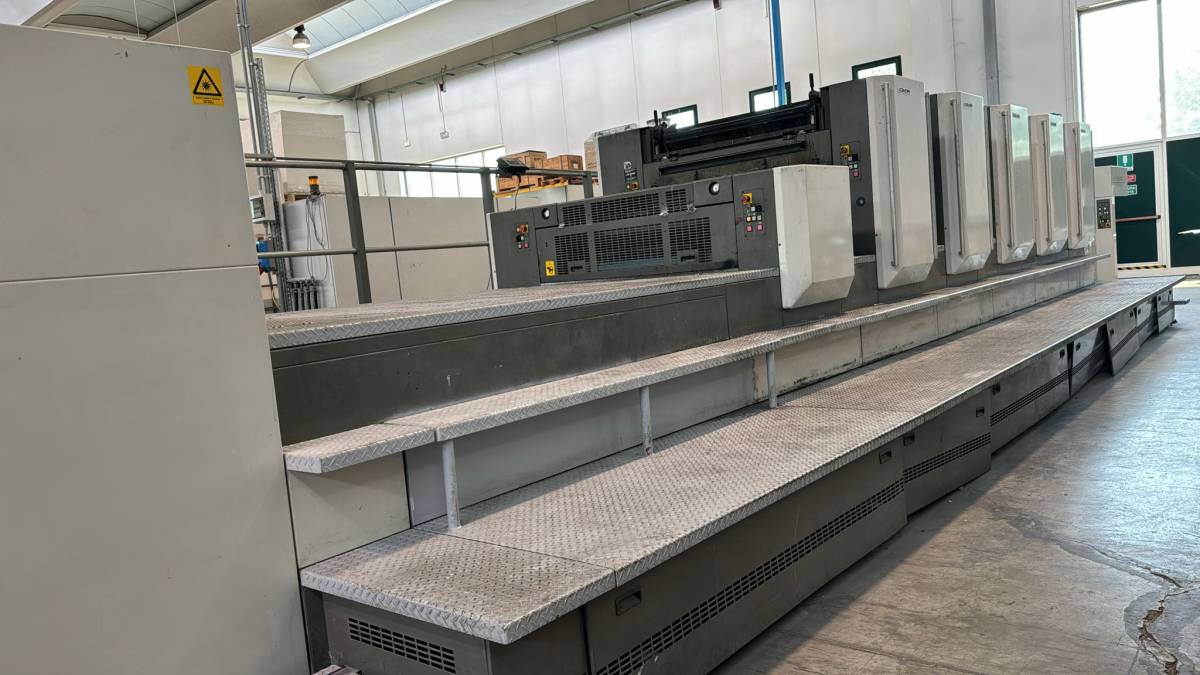

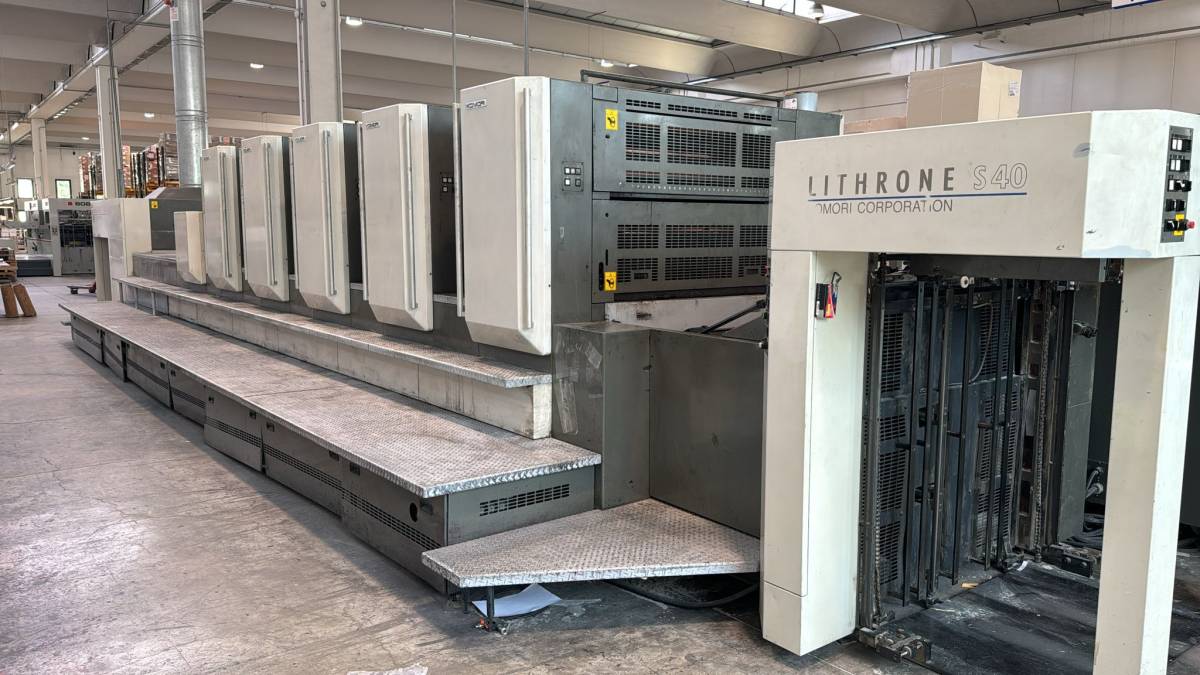

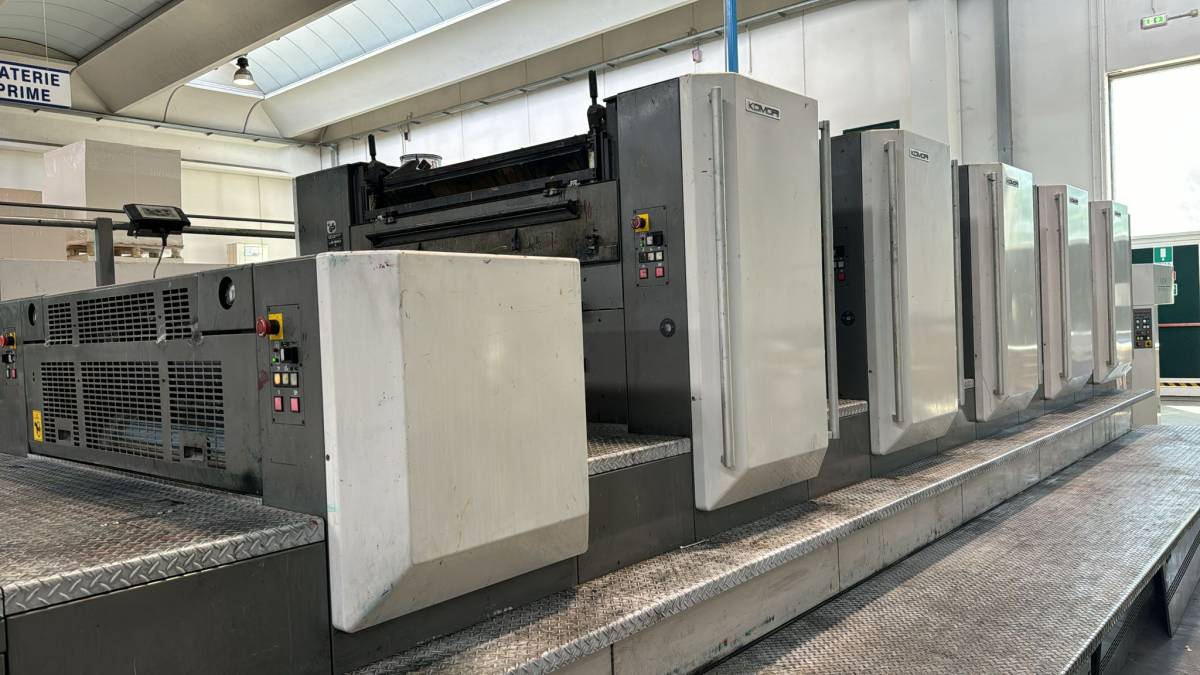

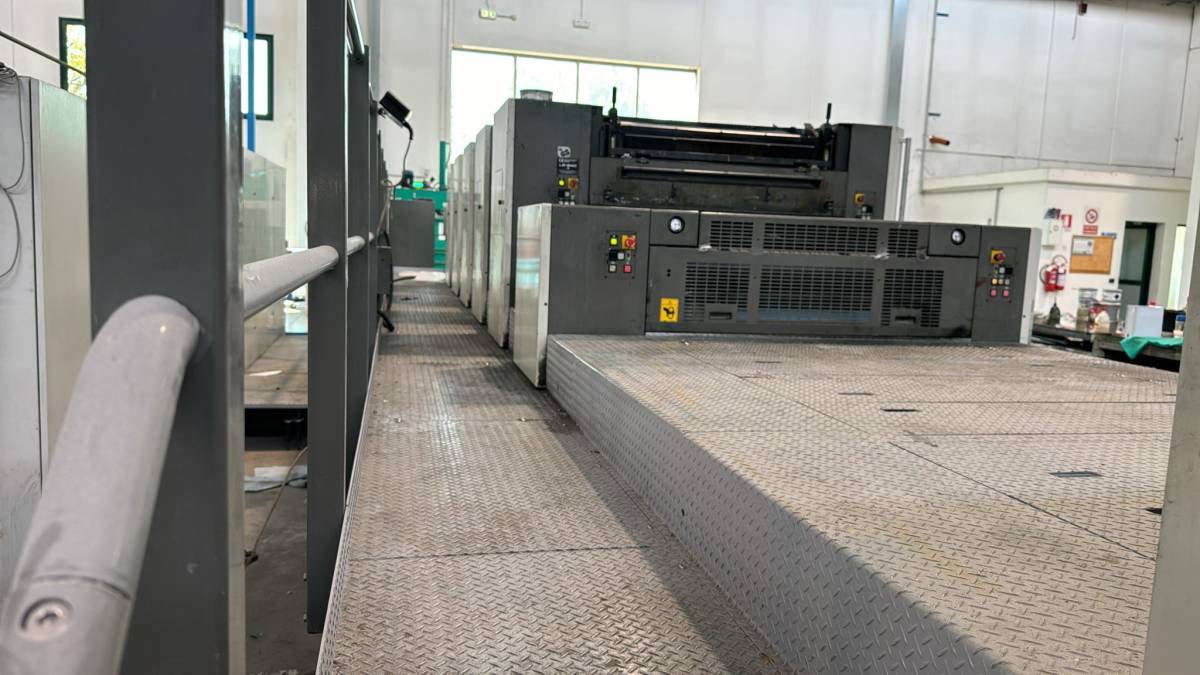

Komori LITHRONE LS 40-5 HC
The machine was selected and carefully inspected by our engineers prior to purchase. Subsequently, it underwent a rigorous overhaul process, based on a well-established working protocol. This process involves disassembly in our specialized workshop, thorough cleaning, repainting of components and units, accurate reassembly, and the overhaul or replacement of all non-conforming or damaged parts and mechanisms according to our long and established experience. Each component is adjusted with centesimal precision to ensure compliance with original factory parameters. Finally, the machine is reassembled and subjected to thorough functionality tests and inspections for the best result according to our high quality standards.
MACHINE SPECIFICATION
| Manufacturer | Komori |
|---|---|
| Model | LITHRONE LS 40-5 HC |
| Type | Sheetfed Offset/Offset a foglio |
TECHNICAL DATA
| Max sheet size | 72 x 103 |
|---|---|
| Min sheet size | 36 x 52 |
| Max print size | 71 x 102 |
| Material Thickness | 0,04 / 1.0 mm |
| Plate size | 80 x 103 |
Accessories

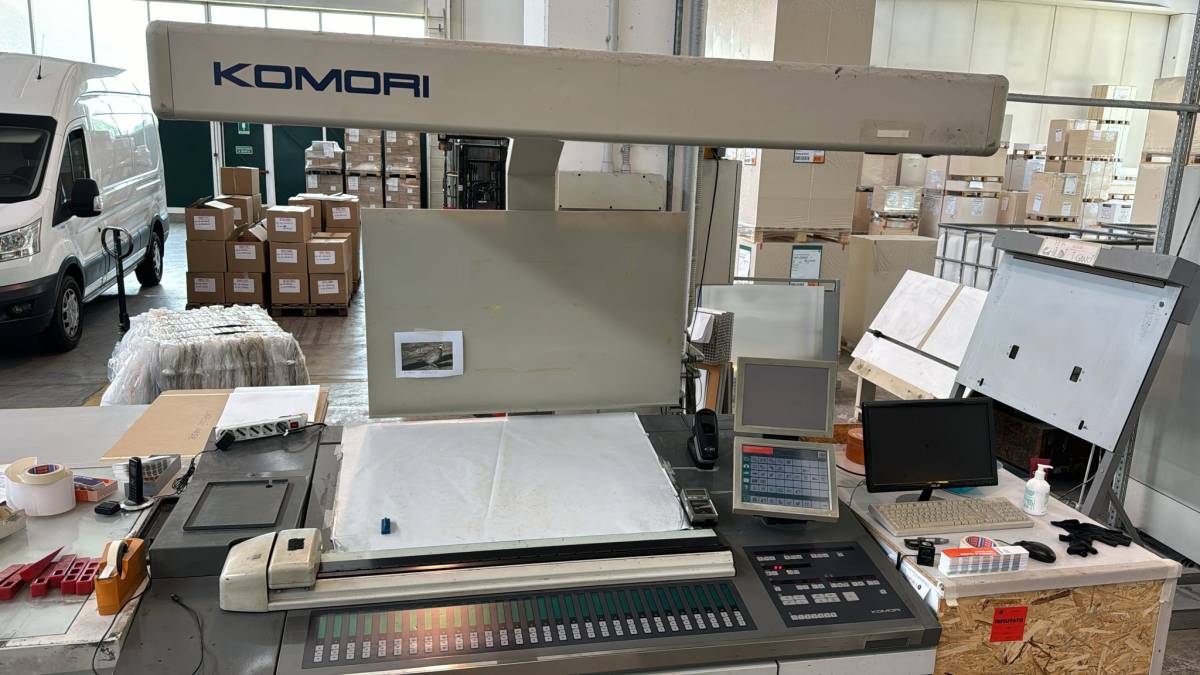

- Console

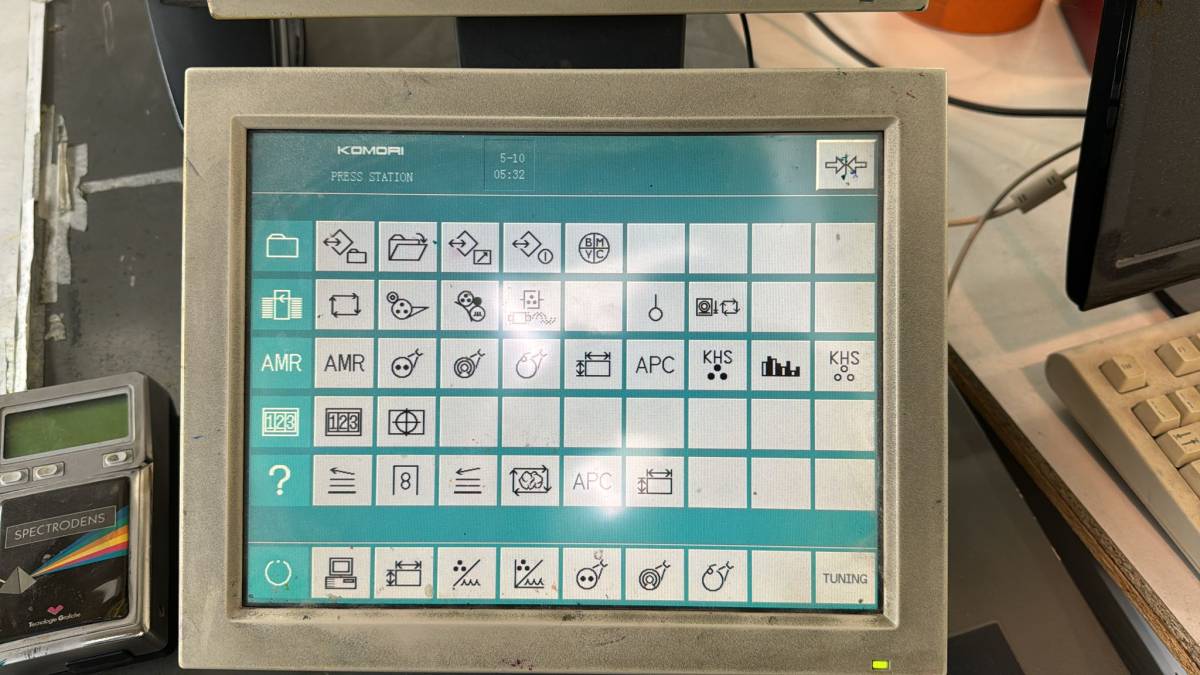

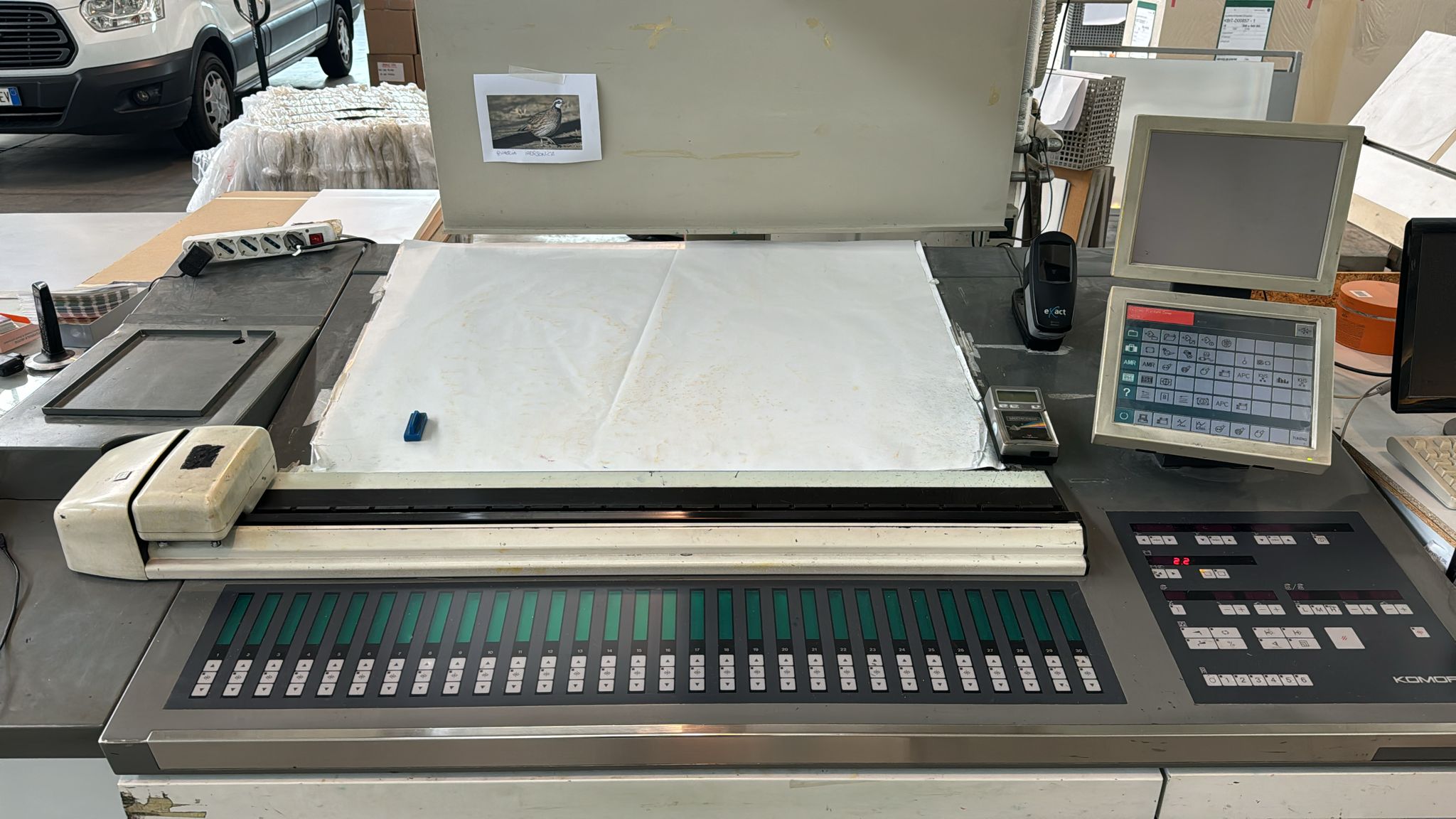

- PQC: console for ink, axial, circumferential diagonal remote control
- AMR (Automatic Make Ready): automatic preset for pressure, paper size and thickness setting
- KMS : Komori Management System
- KHS : Komori High Performance System
- PDC : Auto Tracking Color Control

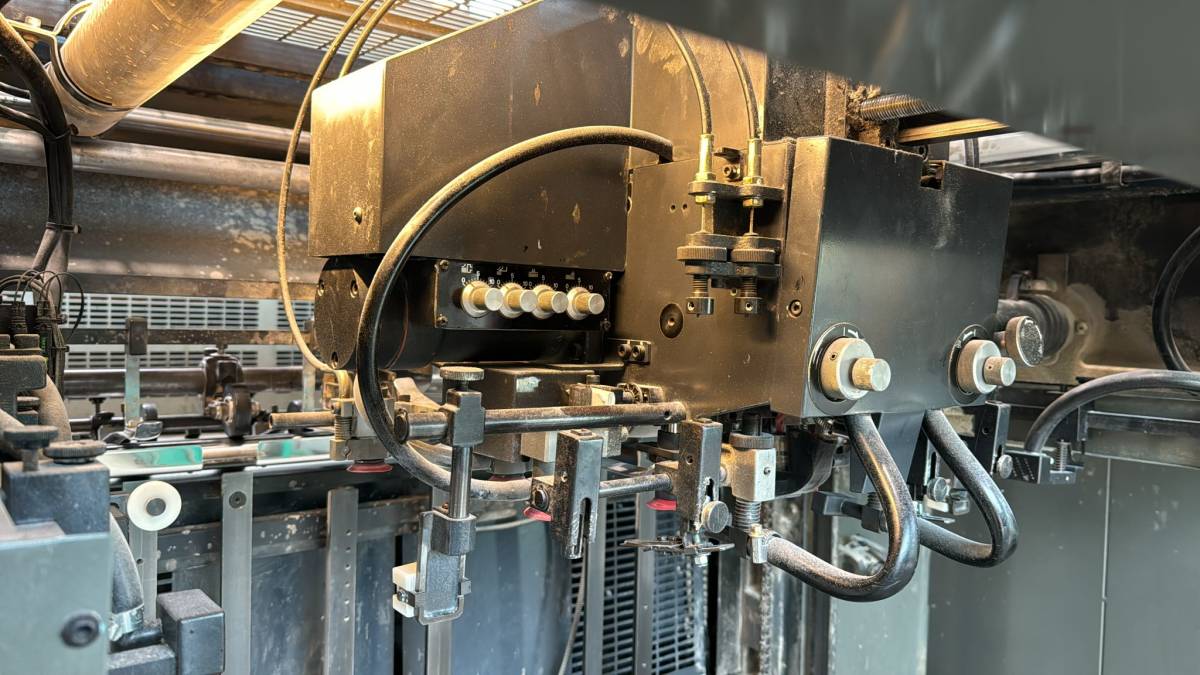

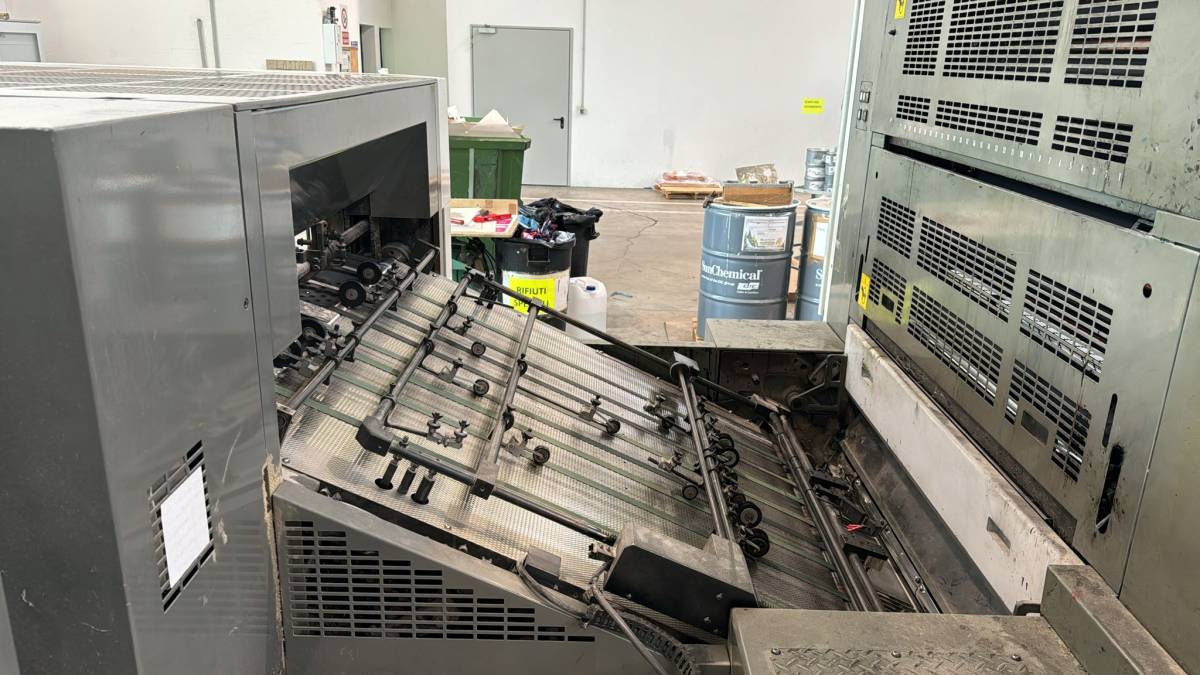

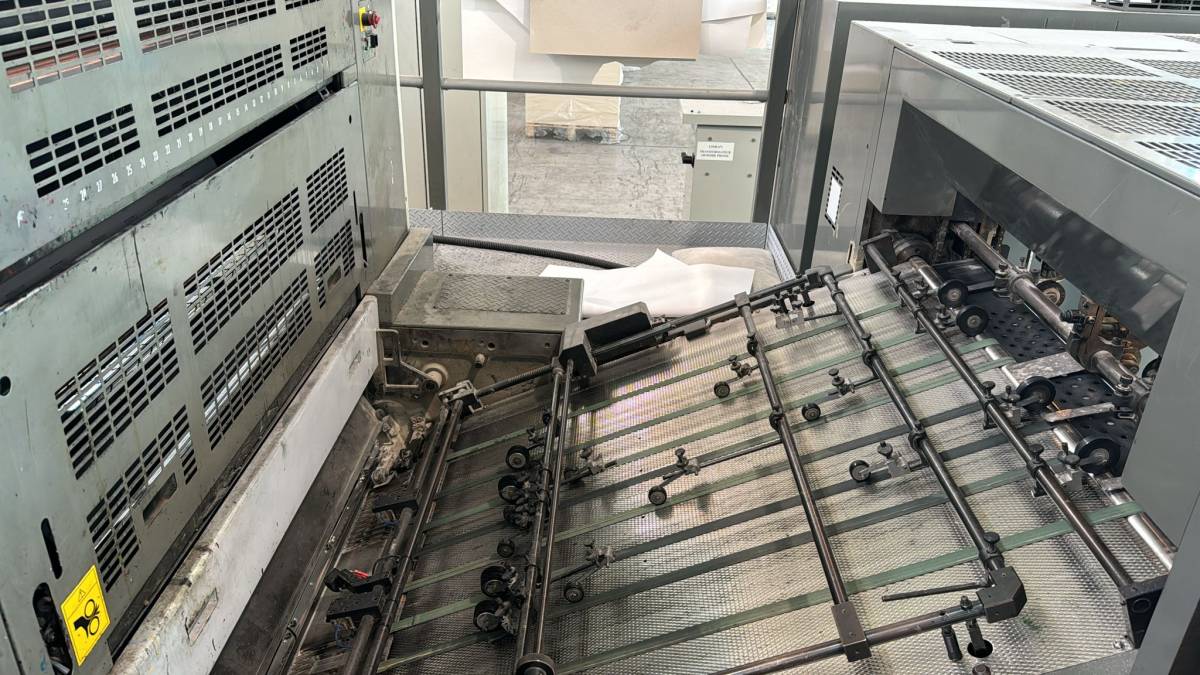

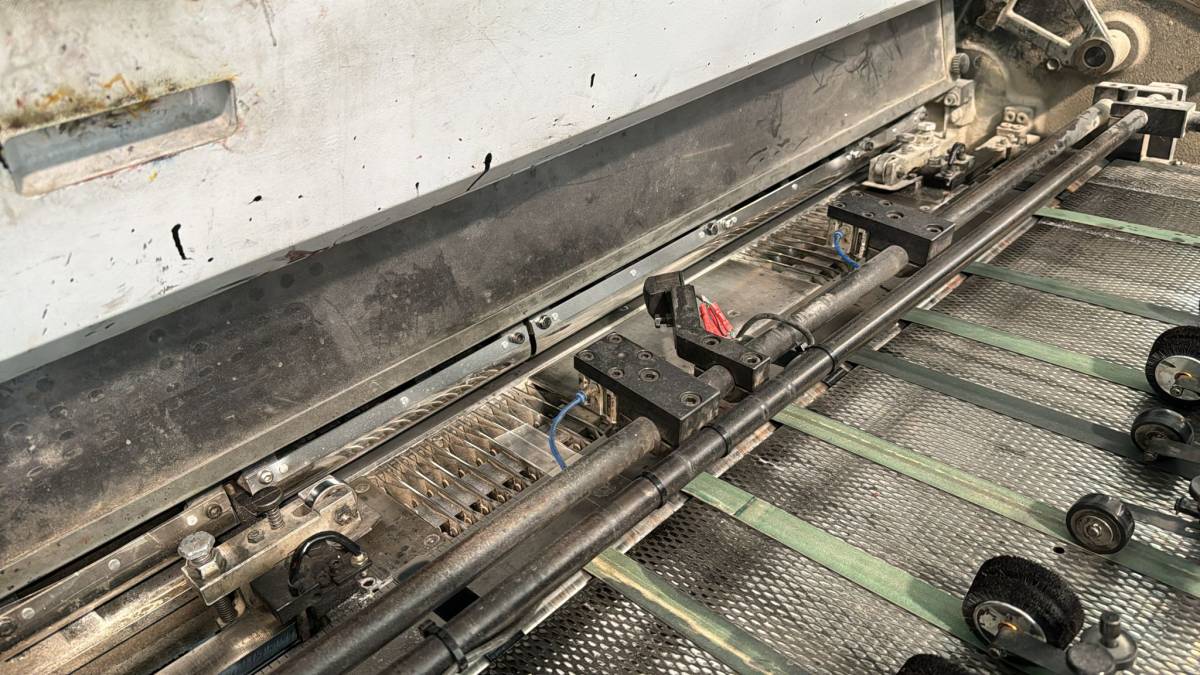

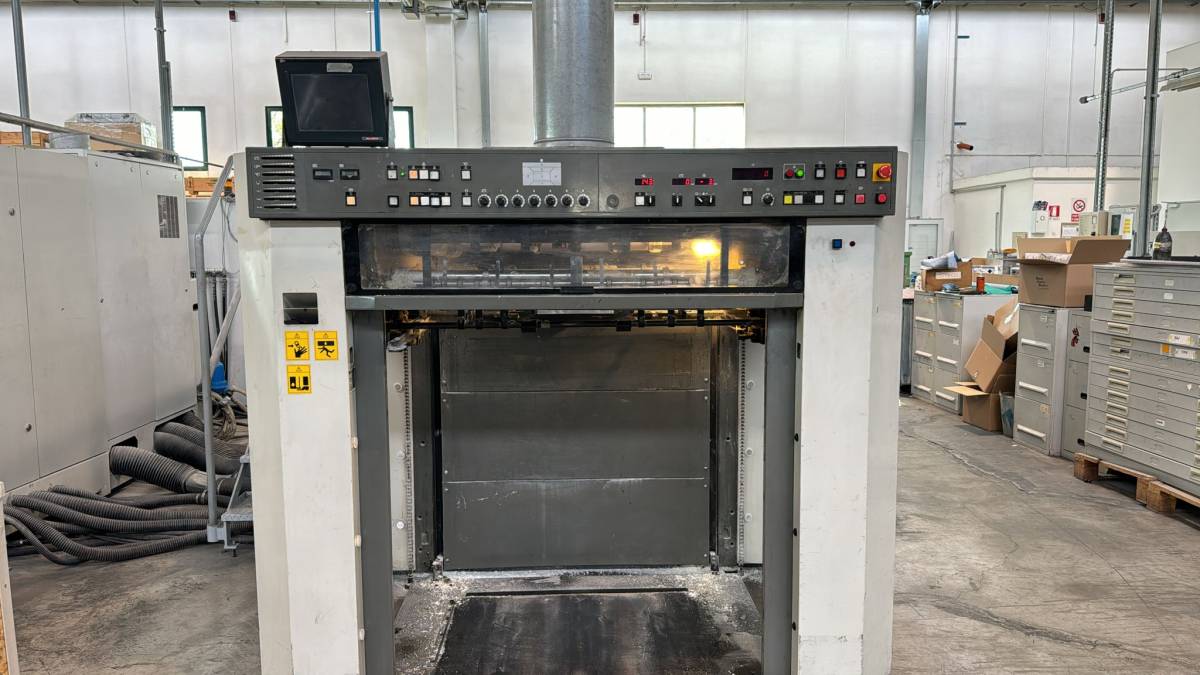

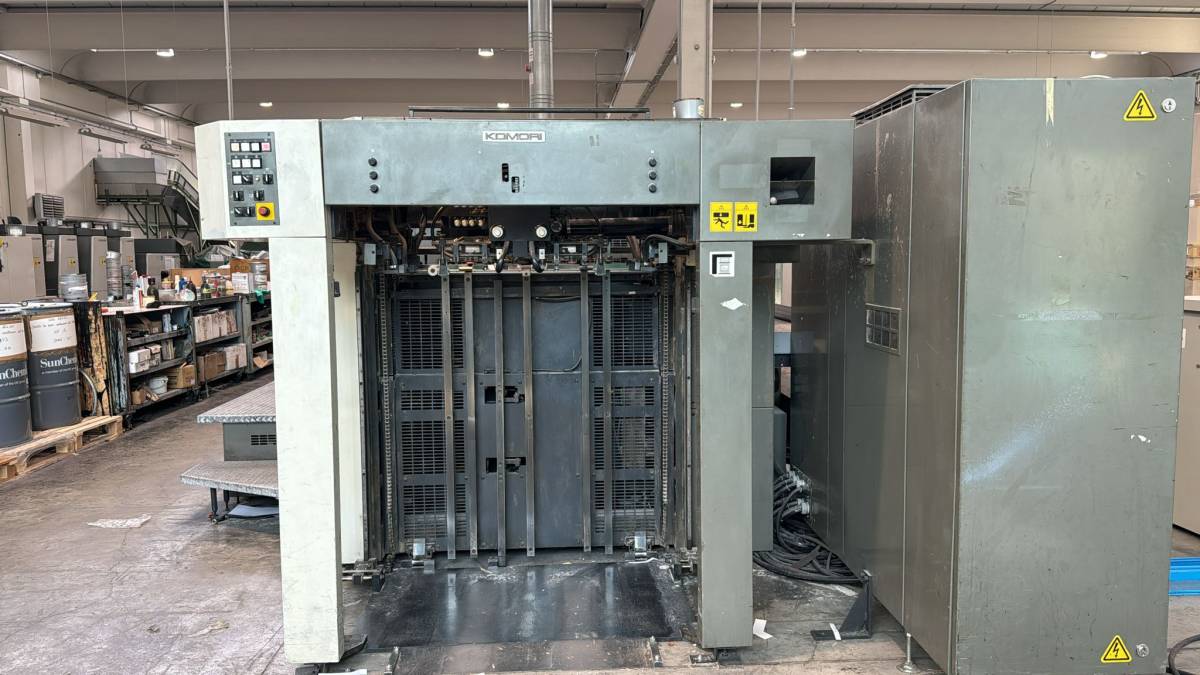

- Feeder
- Pile alignment on feeder
- Micrometric adjustment of the lateral pull pay by touch panel +/- 3 mm.
- Optical fiber precision photocell system for front and side control + safety photocell for the sheet in advance
- Paper deformation compensator placed on the infeed cylinder with remote control
- Mechanical sheet stop in case of misregistration or crooked sheet
- Feeler foot with double ionizing antistatic blower: for a good sheet separation on the back side of the pile
- Antistatic on feeder
- Preloader on feeder
- Double sheet electronic detection

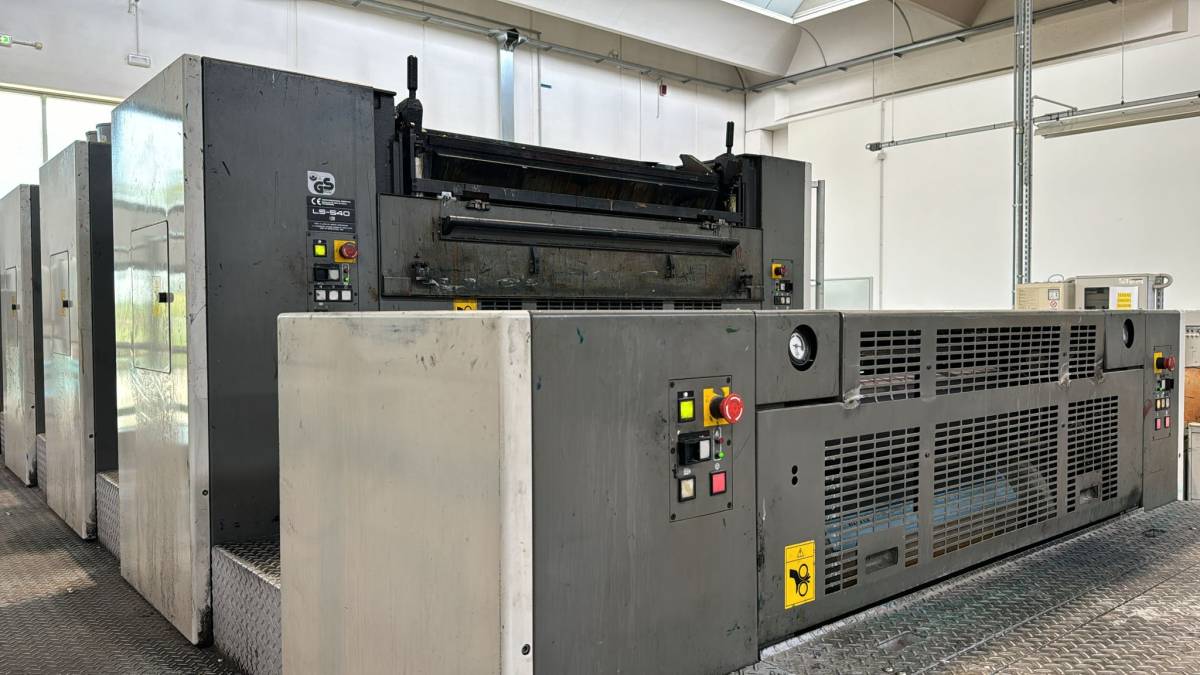

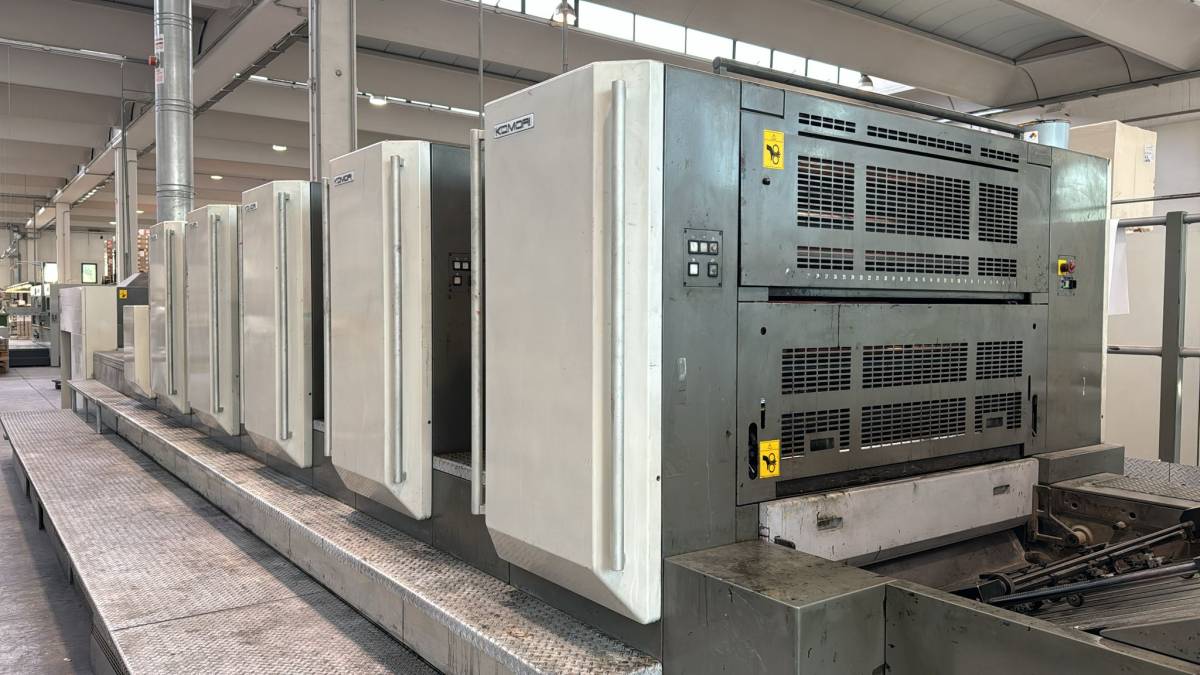

- Printing Units
- Speed Reduction : dampening roller with reduced peripheral speed
- Komorimatic damping

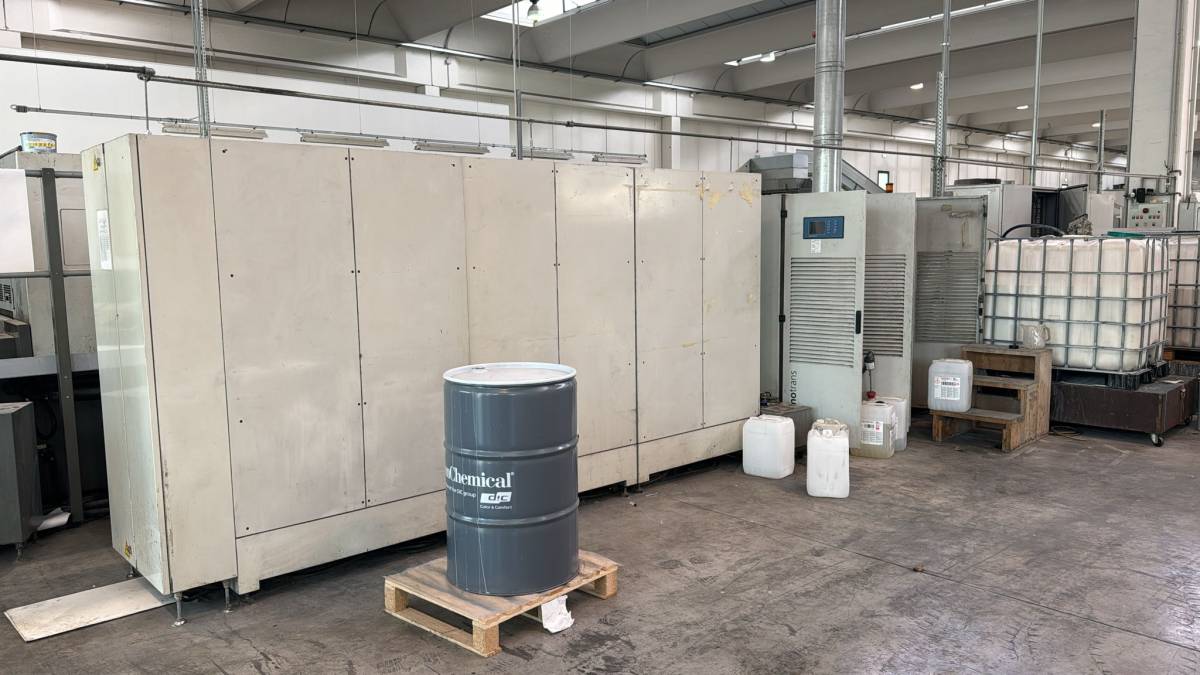

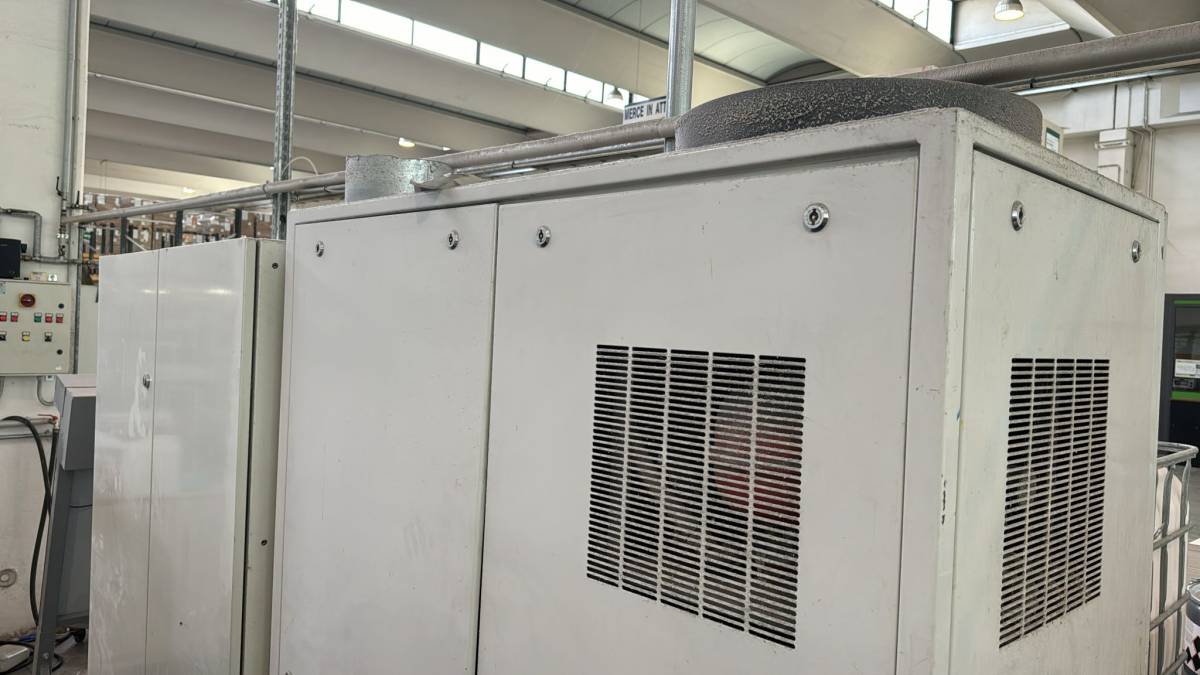

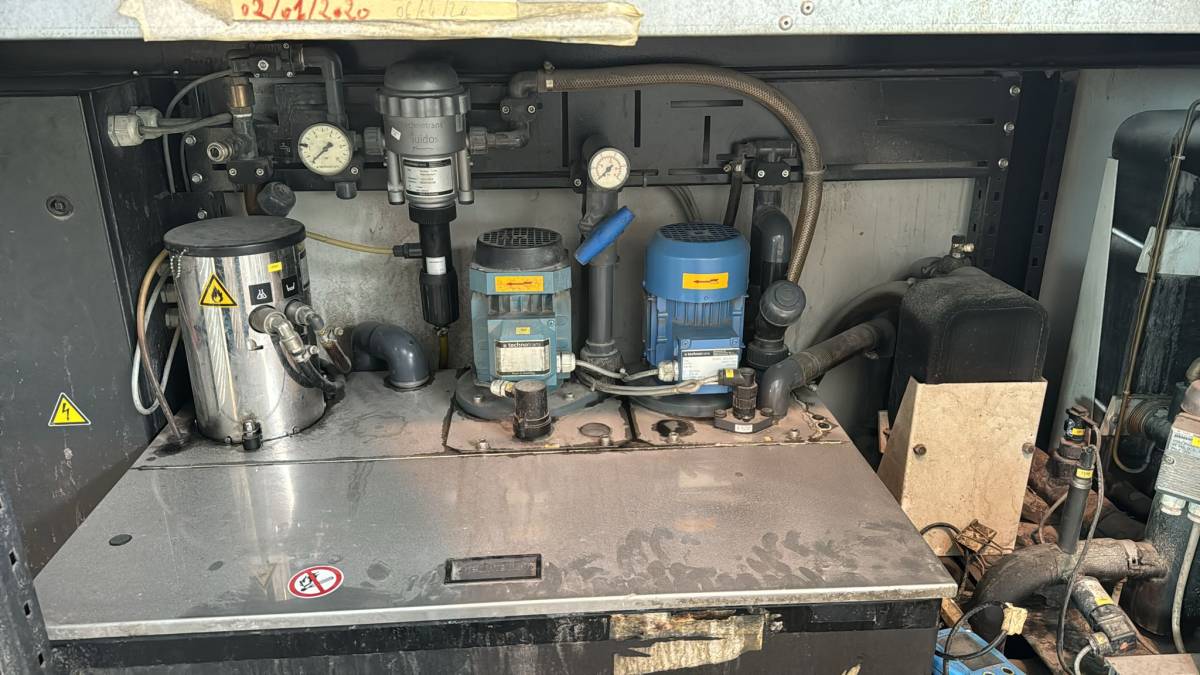

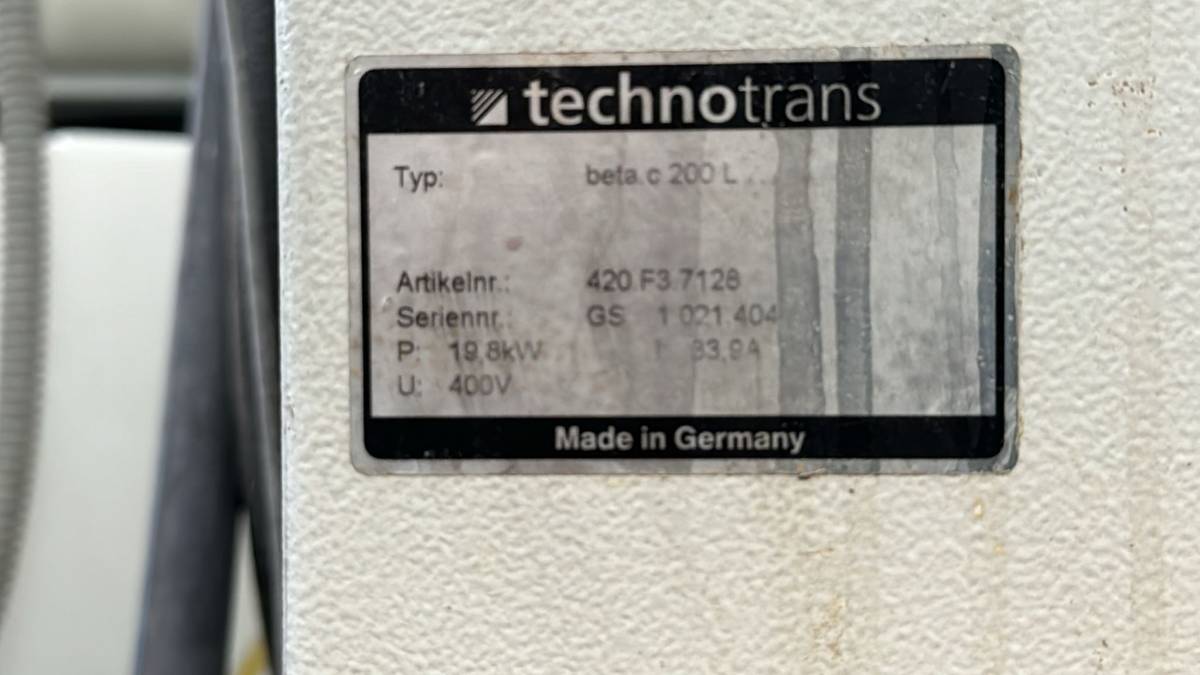

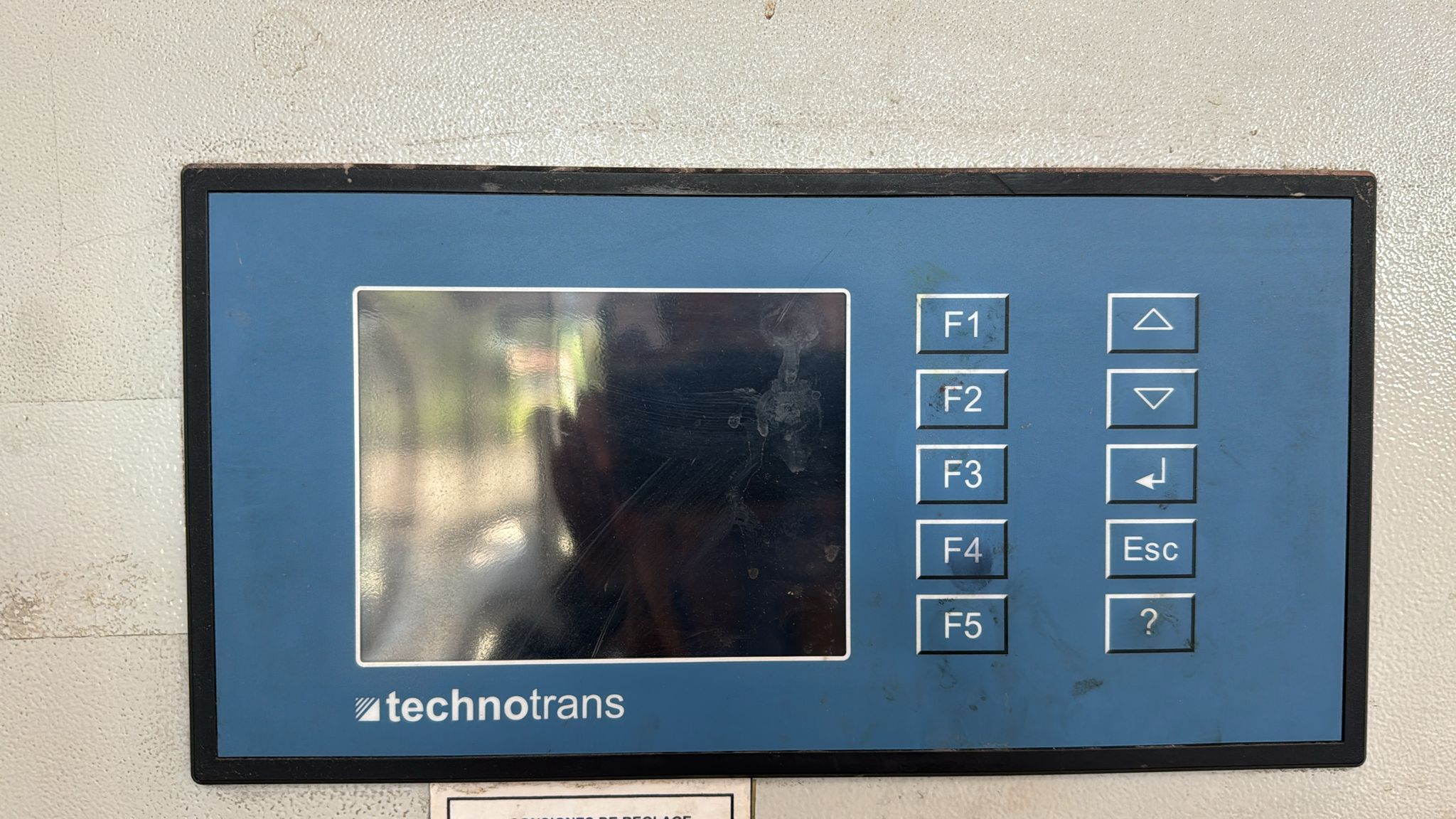

- Technotrans Beta.c 200 ink temp control combined with damping refrigeration + Automix
- FAPC fully automatic plate change
- Inks de-clutching device on 1° and 5° printing units

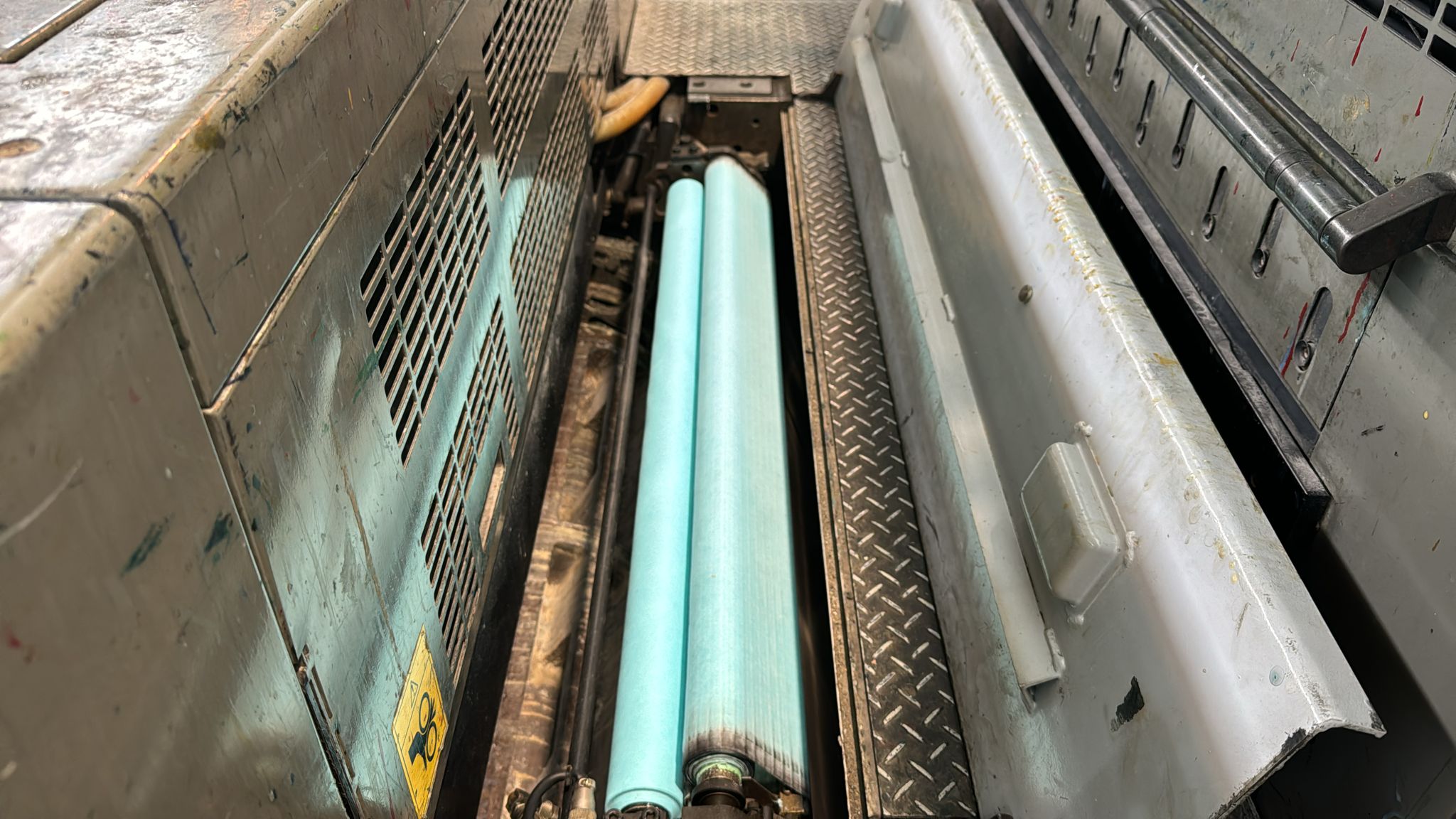

- Automatic roller wash-up device
- Automatic blanket washers with cloth
- Automatic impression cylinder washers with cloth
- Skeleton Transfer cylinders with with manual adjustment movement, pick-up pad grippers with vacuum system
- Double diameter impression cylinders
- Varnishing units

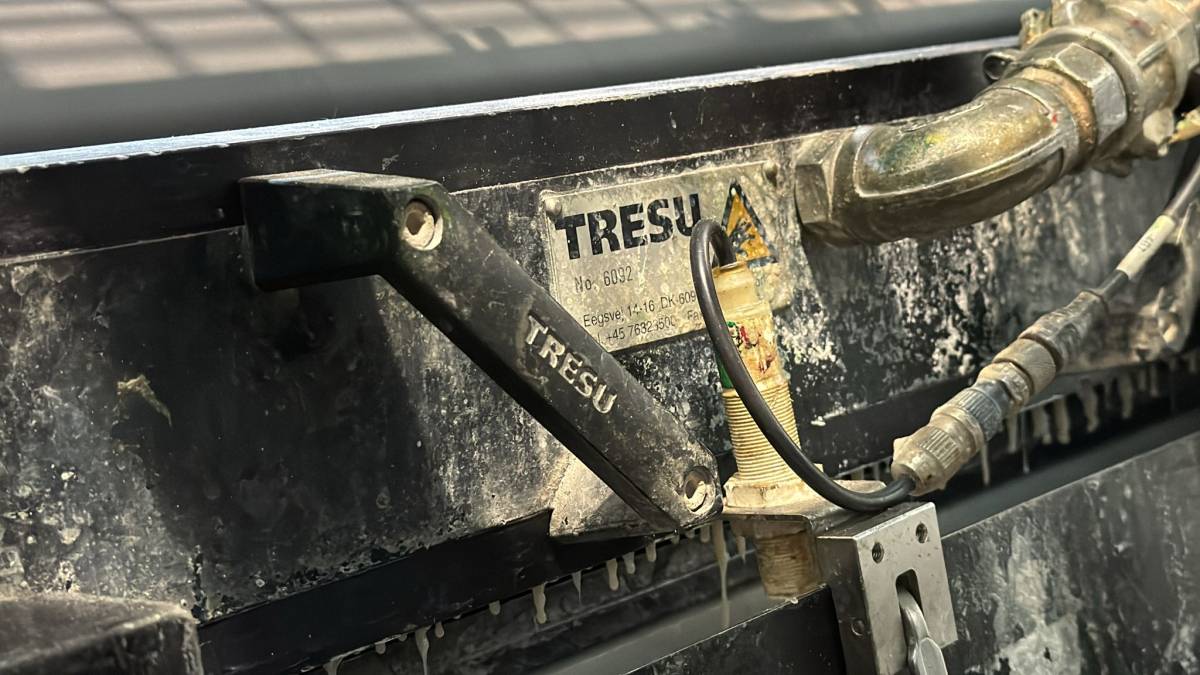

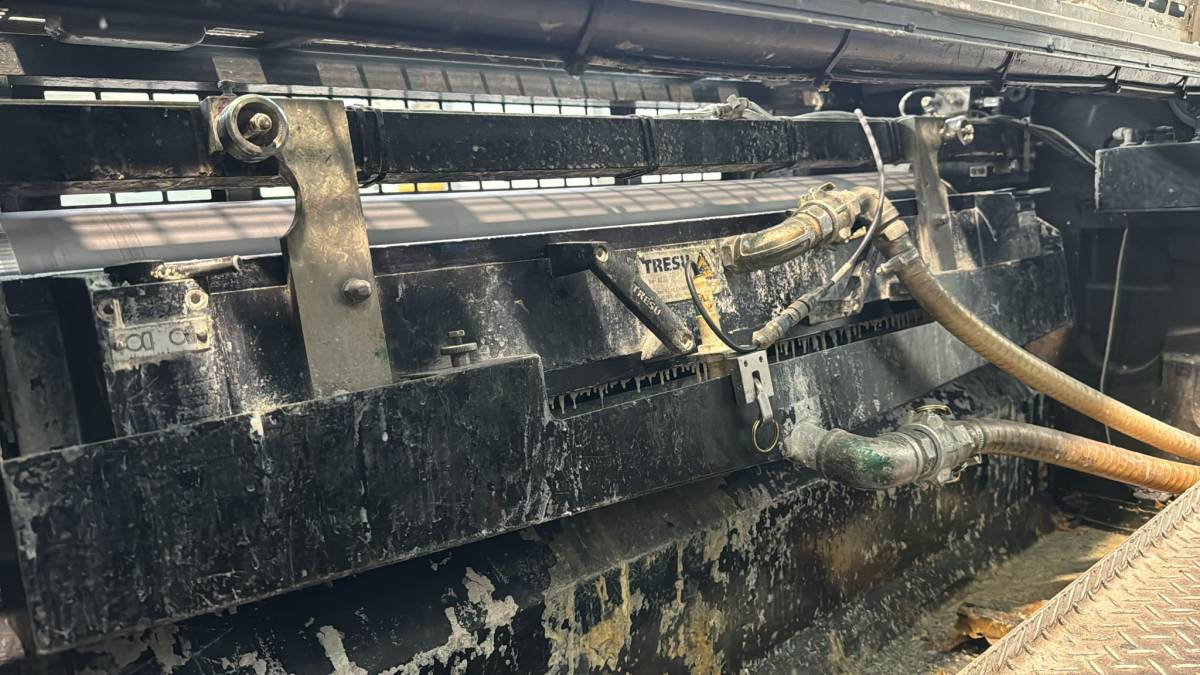

- Varnishing unit, Tresu chambered doctor blade system, with anilox roller

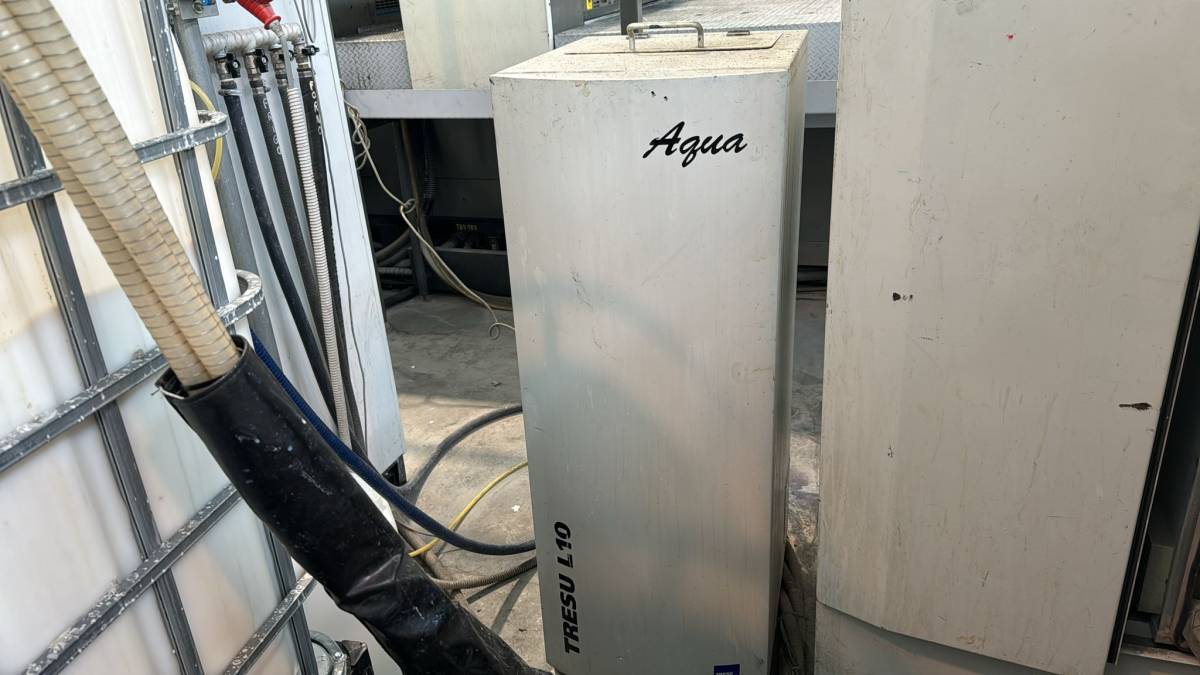

- TRESU AQUA L10 Coating Circulator

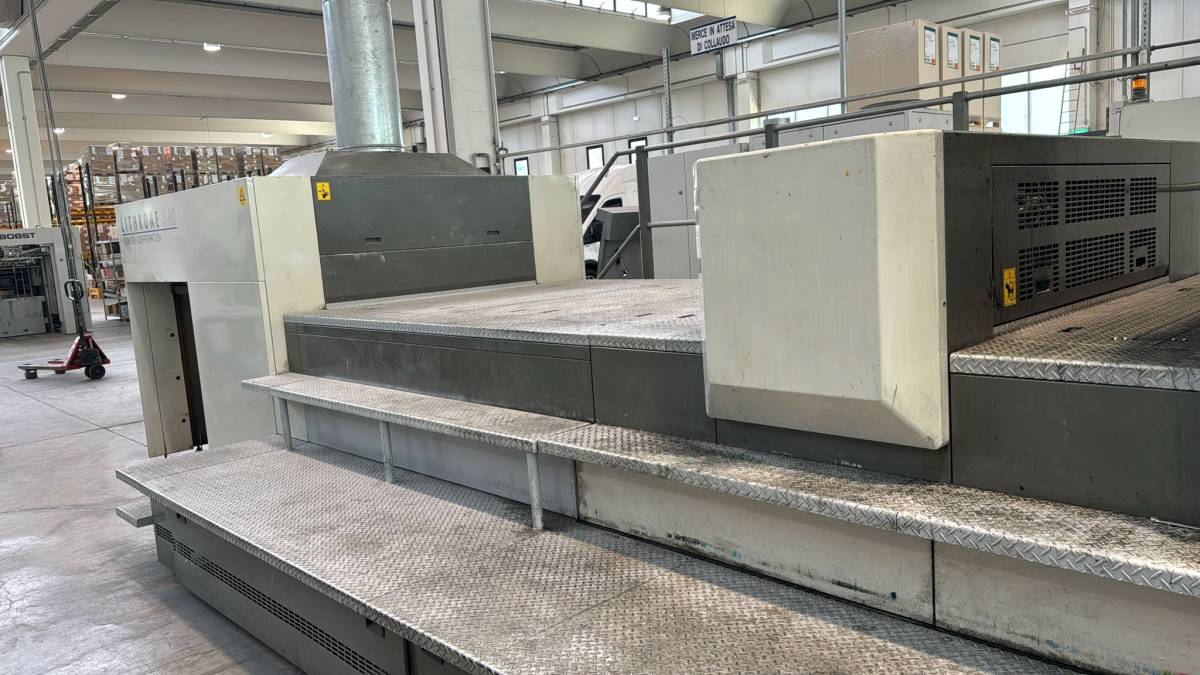

- Delivery
- Extended delivery 2 meters

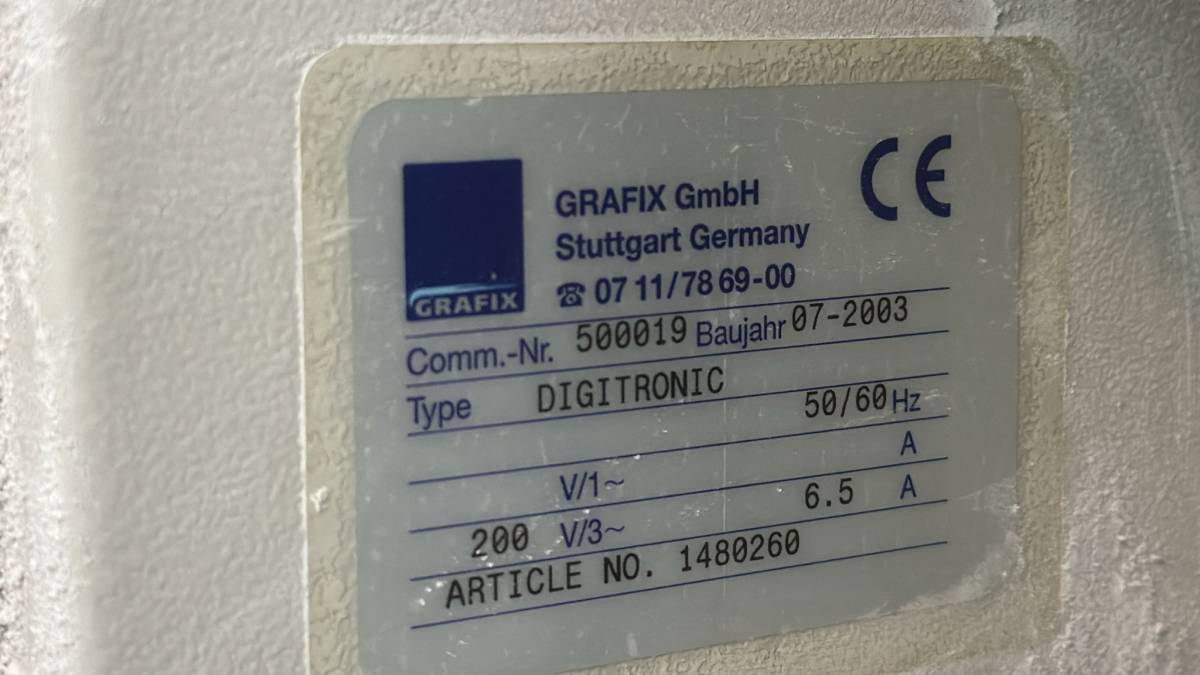

- Grafix Digitronic powder spray

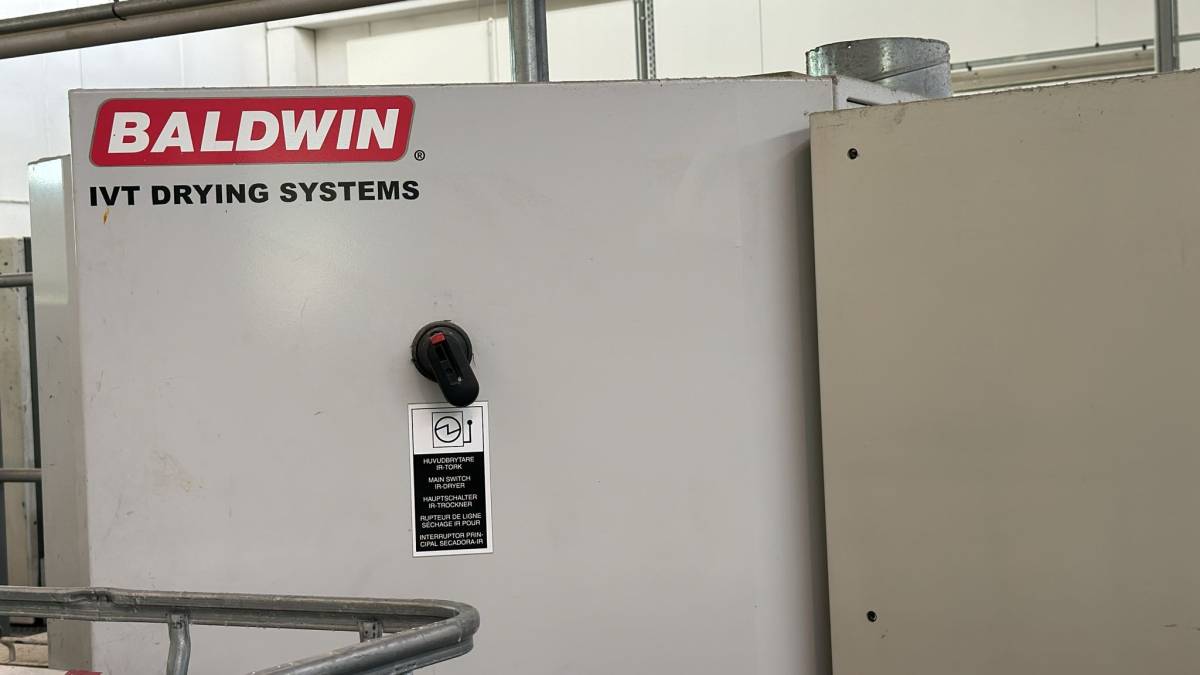

- IR/HOT AIR GraphiSet4 IVT Baldwin dryer
- Non-Stop in delivery
- Perimeter sensors in delivery
- Antistatic in delivery
- Various
- 15.000 speed/h
- Thickness Material: 0,04 / 1.0 mm
Machine overview

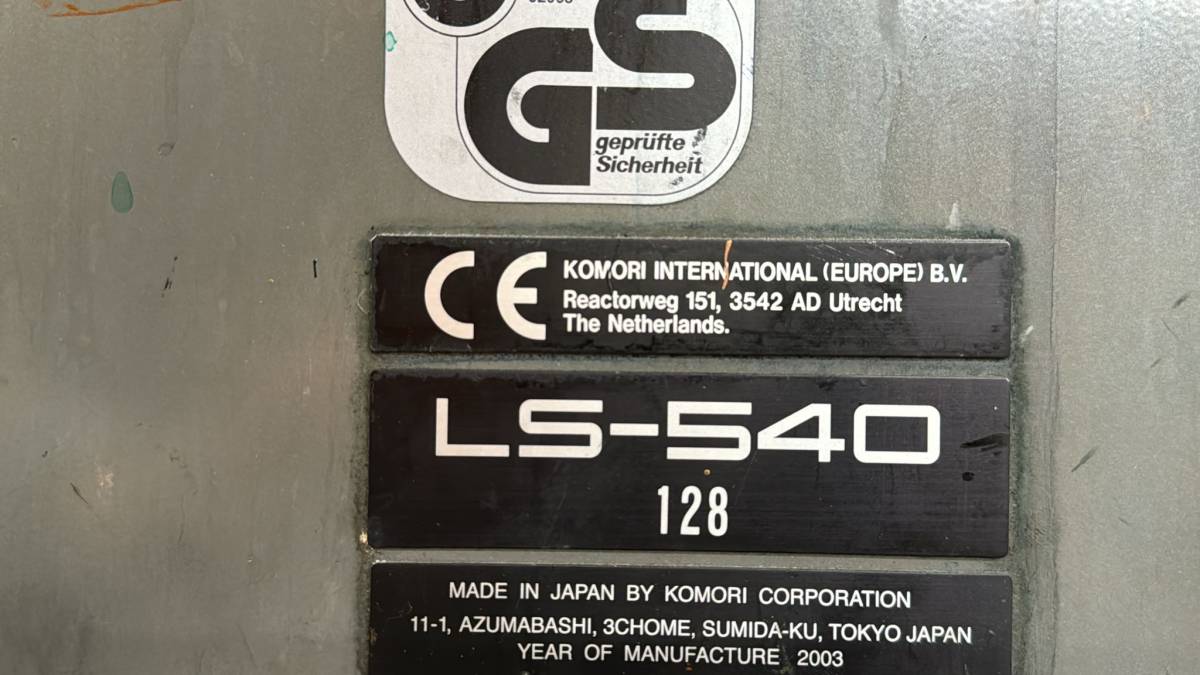

| Year | 2003 |
|---|---|
| Serial Number | 128 |
| N.of Impressions | 130.0 mio. |
“EXTRA” Accessories Overview
- PDC : Auto Tracking Color Control
- Preloader on feeder
- Double sheet electronic detection
- FAPC fully automatic plate change
- Inks de-clutching device on 1° and 5° printing units
- Skeleton Transfer cylinders with with manual adjustment movement, pick-up pad grippers with vacuum system
- Varnishing unit, Tresu chambered doctor blade system, with anilox roller
- TRESU AQUA L10 Coating Circulator
- Extended delivery 2 meters
- Non-Stop in delivery
- Perimeter sensors in delivery
- Antistatic in delivery
- Thickness Material: 0,04 / 1.0 mm
Reference Overview
| Reference | 21036027 |
|---|---|
| Visible | Camporese Rebuilding Center of Limena (PD) |
| Availability | Immediately |
