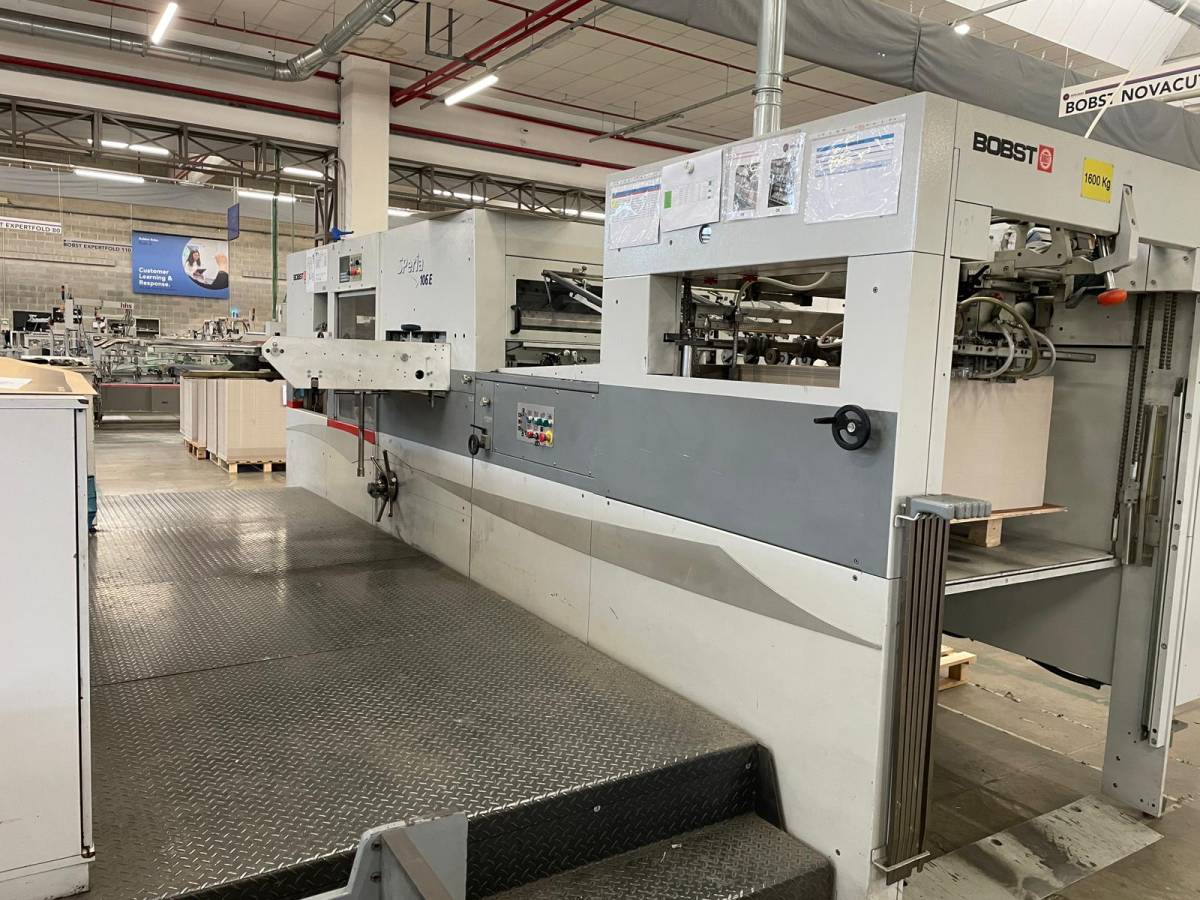

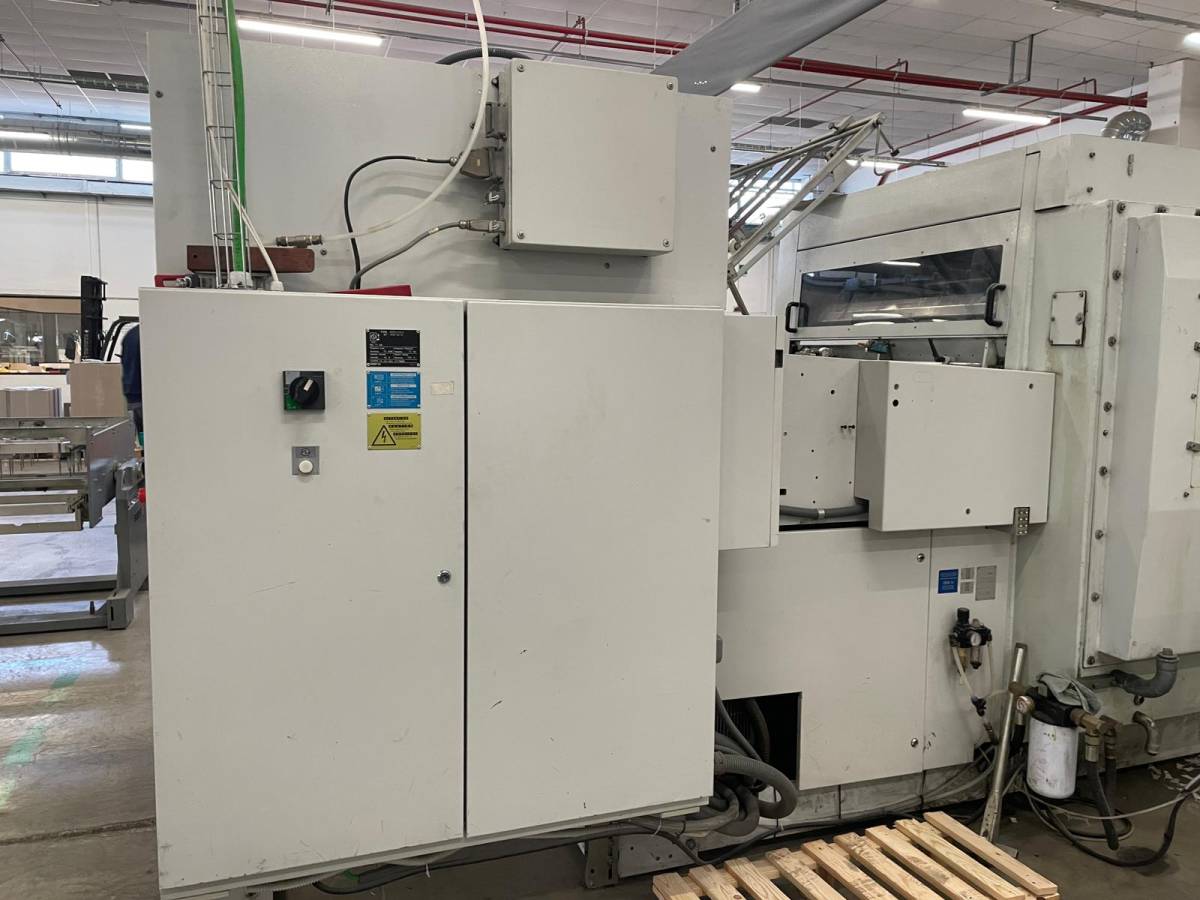

Bobst SPERIA 106 E
The machine was selected and carefully inspected by our engineers prior to purchase. Subsequently, it underwent a rigorous overhaul process, based on a well-established working protocol. This process involves disassembly in our specialized workshop, thorough cleaning, repainting of components and units, accurate reassembly, and the overhaul or replacement of all non-conforming or damaged parts and mechanisms according to our long and established experience. Each component is adjusted with centesimal precision to ensure compliance with original factory parameters. Finally, the machine is reassembled and subjected to thorough functionality tests and inspections for the best result according to our high quality standards.
MACHINE SPECIFICATION
| Manufacturer | Bobst |
|---|---|
| Model | SPERIA 106 E |
| Type | Die Cutting/fustellatrici |
TECHNICAL DATA
| Max sheet size | 106 x 74 |
|---|---|
| Min sheet size | 40 x 35 |
Accessories
- Console

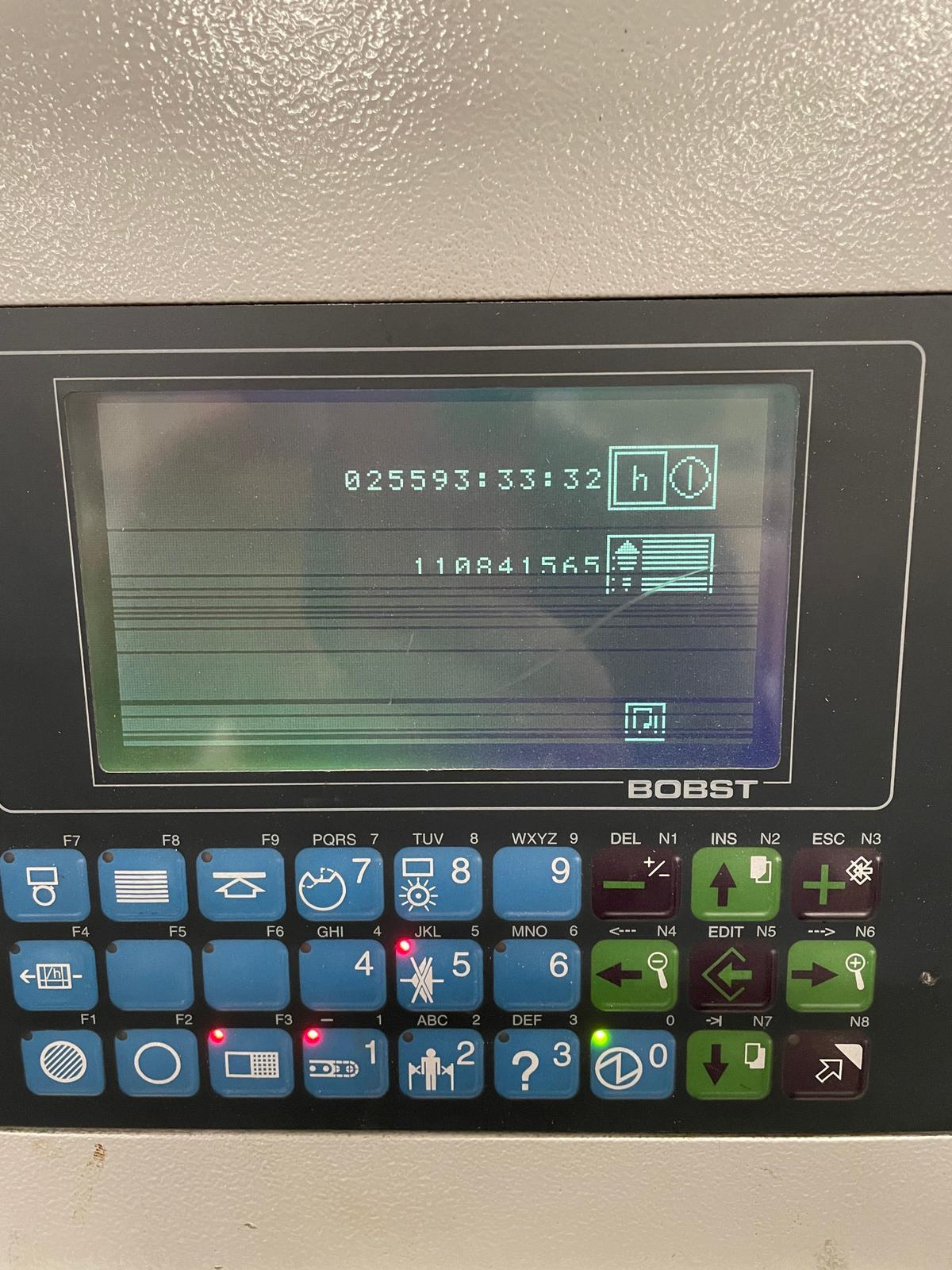

- CUBE control system
- Centerline system for quick job changeover

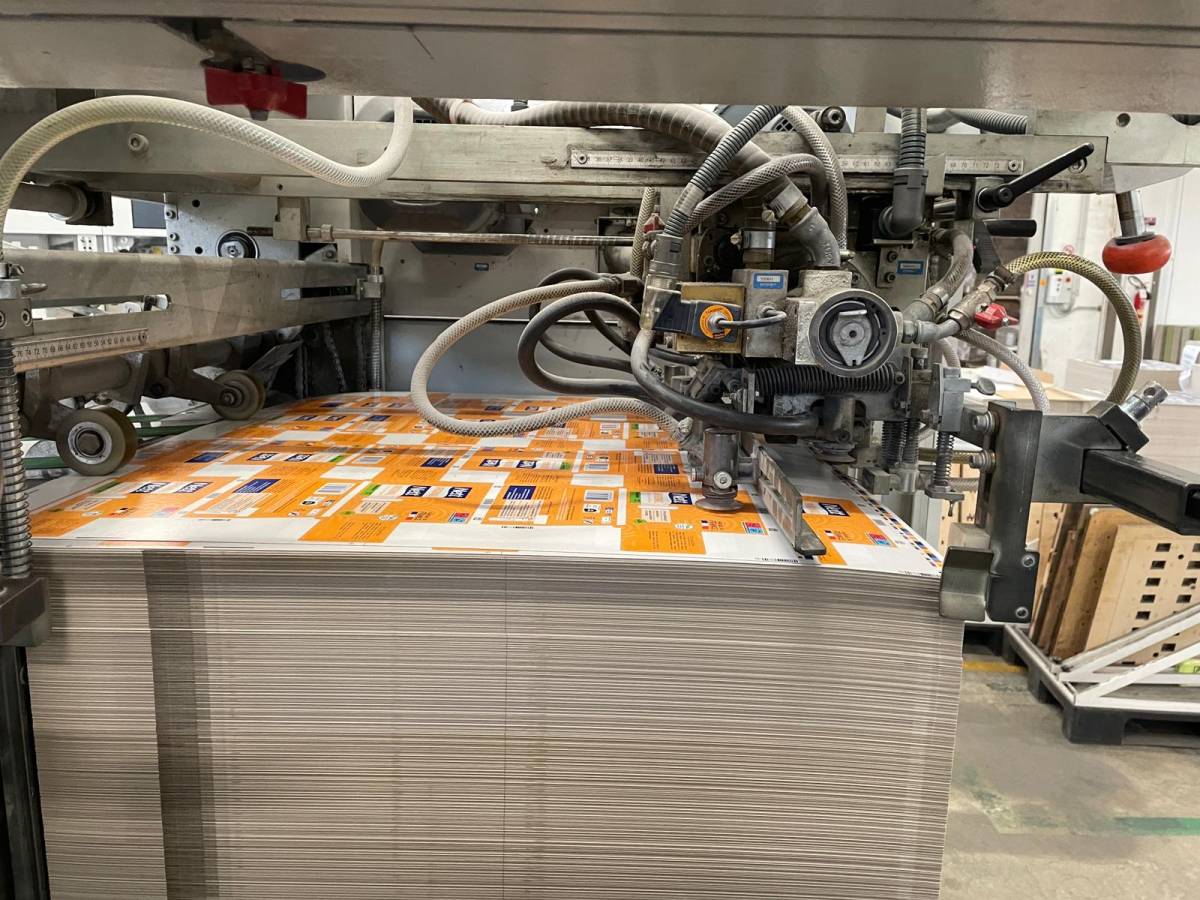

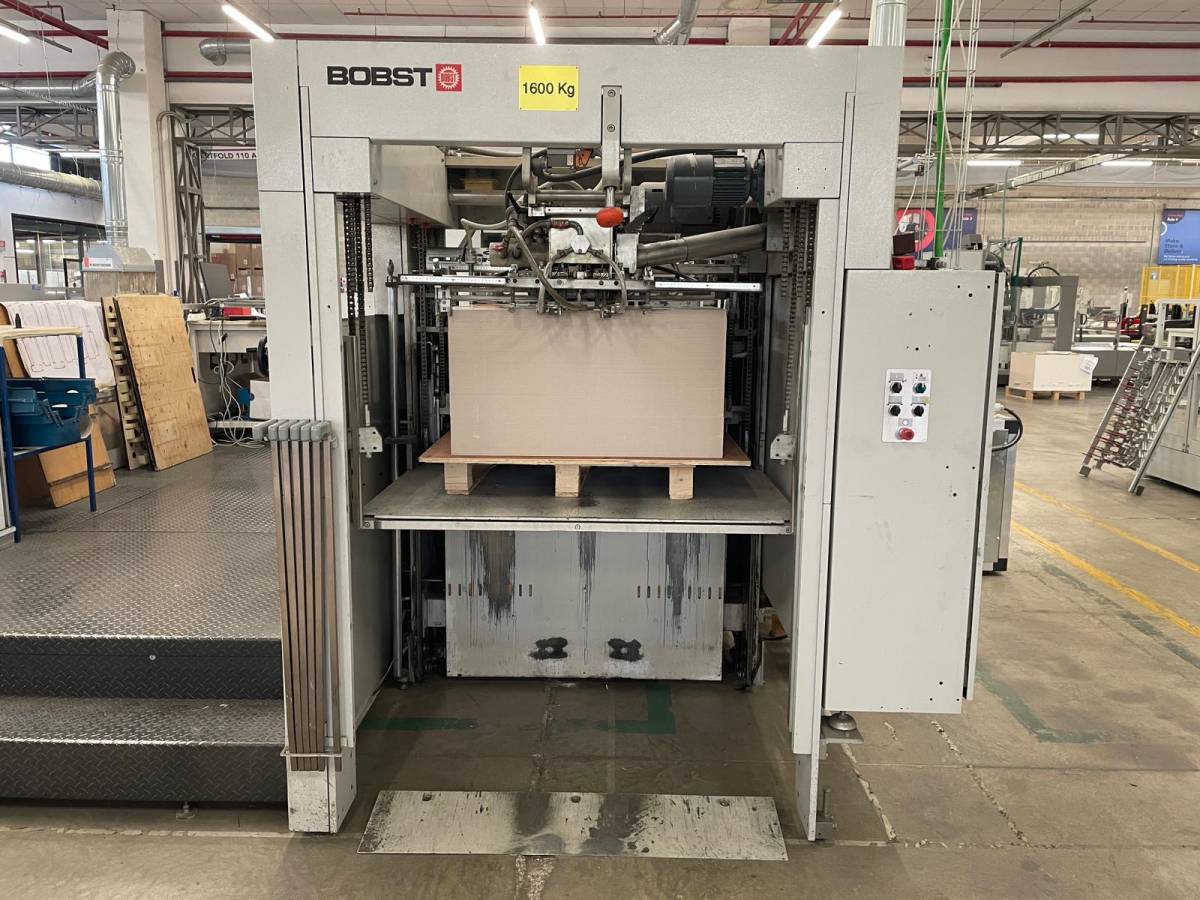

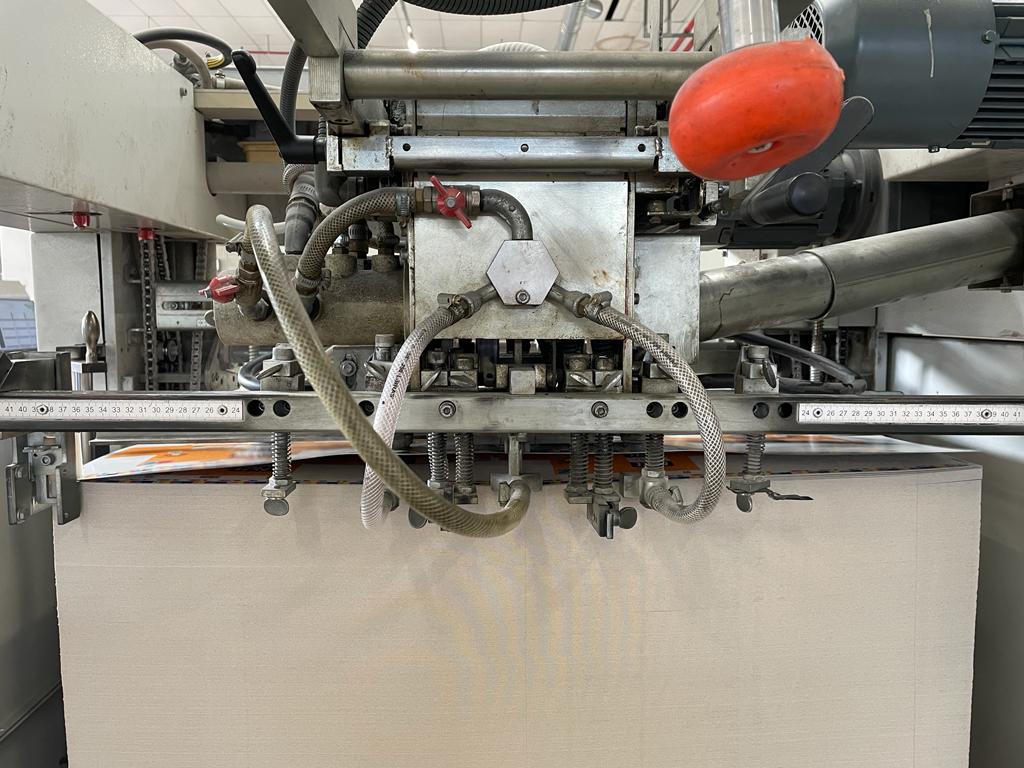

- Feeder
- Pull lay operator side
- C-4 NON-STOP FEEDER MANUAL DEVICE
- C-5 SYNCHRONIZATION DEVICE TIMING THE SHEET ARRIVAL AGAINST THE FRONT LAYS WHEN THE MACHINE IS AT A STANDSTILL
- Platin
- Grippers re-opening device (Platin)
- Cutting plate with micrometric adjustment for 1 mm thin plates
- Equipment centering and locking on platin
- Synthetic material supporting plate on platen (Thickness 23.5 mm (0,925")
- 1 Die-cutting chase
- E-5 COMPENSATING PLATE. THICKNESS 4 MM. IN GROUND STEEL
- E-55 ADJUSTABLE SUPPORTING PLATE CENTERINGS

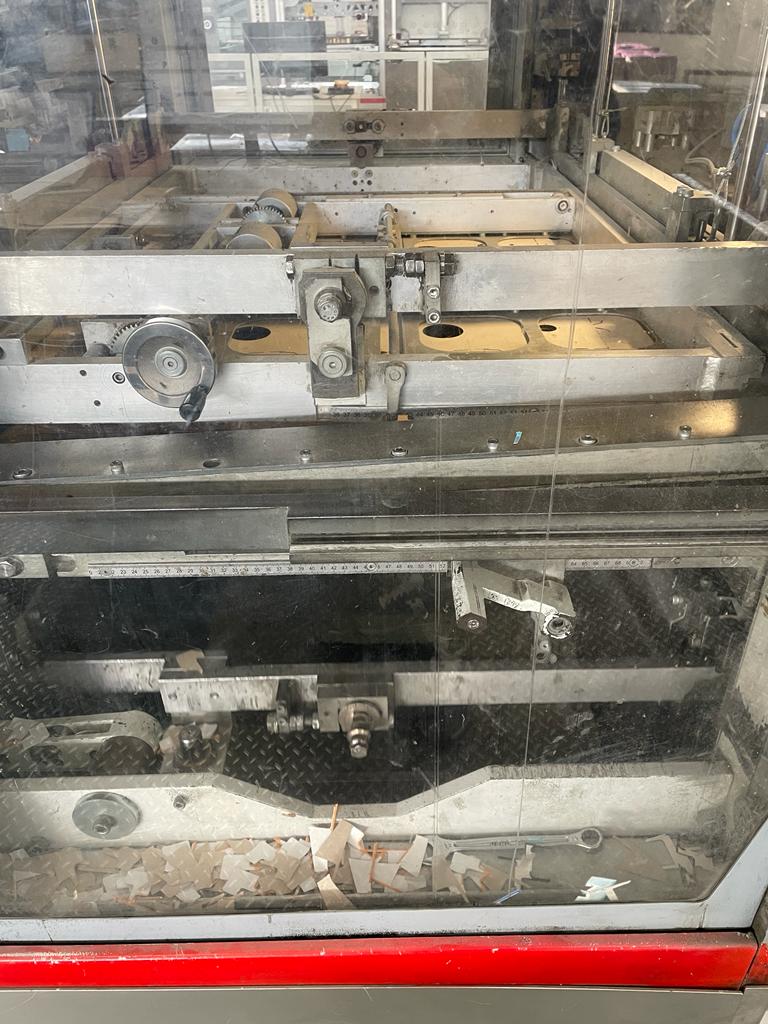

- Stripping Station
- Lower stripping equipment for waste stripping including crossbars, pins and supports (This equipment mounts on central pull-out frame quick-lock)
- Outside table for the preparation of the stripping unit
- 1 central stripping quick lock
- 1 upper pull-out frame quick lock

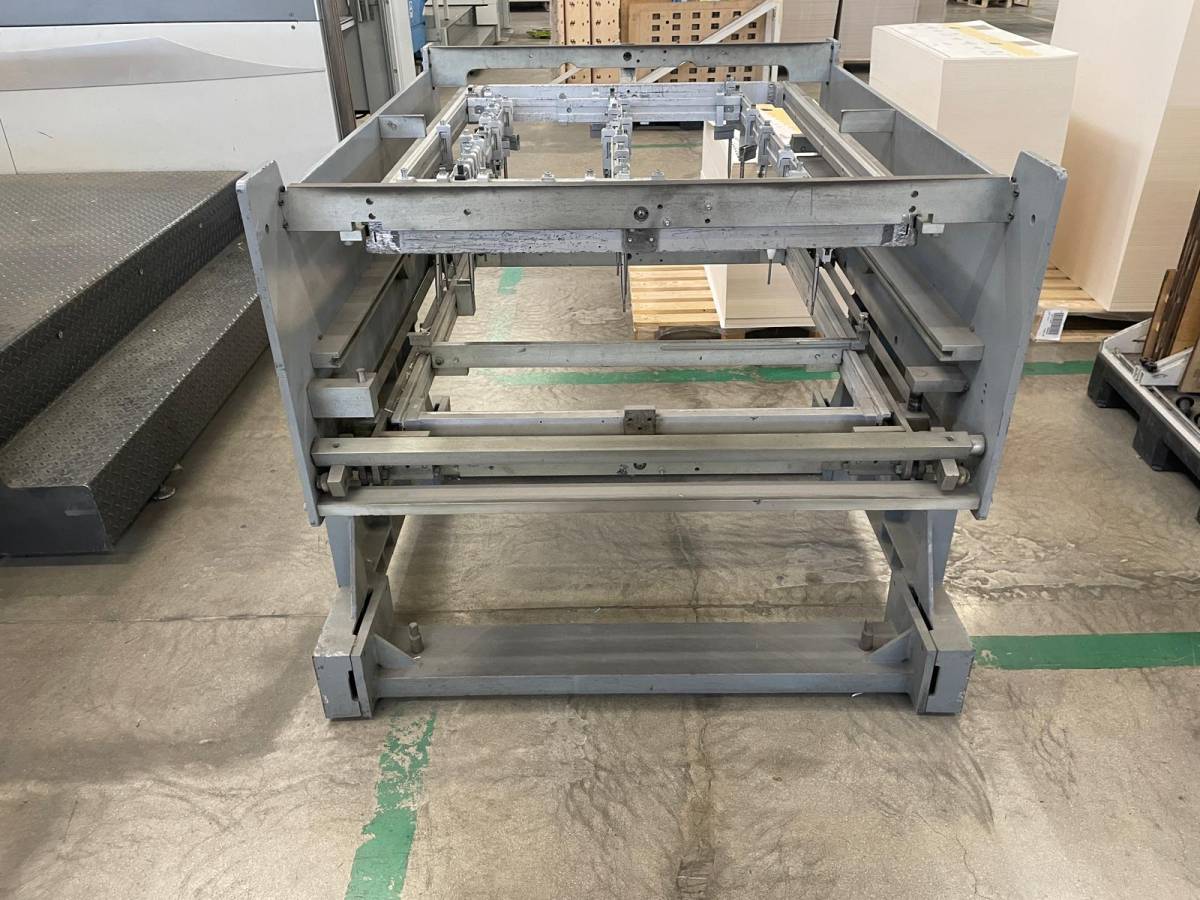

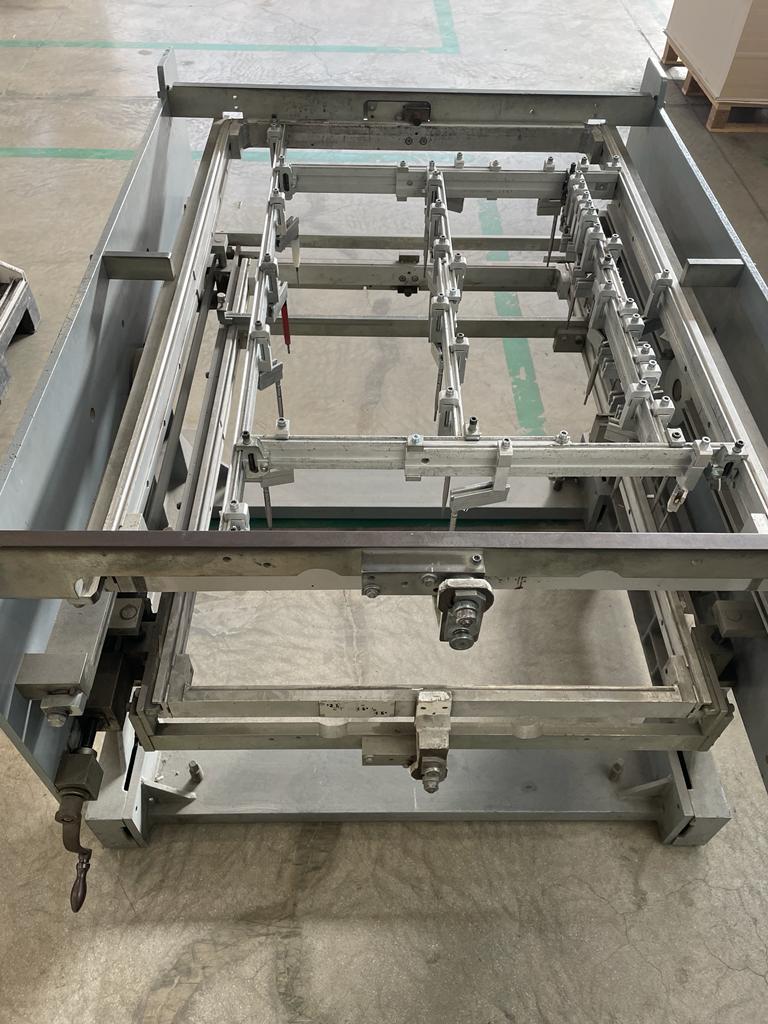

- 1 Upper stripping pull-out frame
- 1 Lower central pull-out frame quick-lock (Stripping Station)
- 1 Lower stripping pull-out frame with all its tools
- 1 Upper stripping equipment required to create a waste stripping tool, including crossbars, clamps, stripper holders and stripping pins of 3, 5 and 10 mm of diameter
- F-9 SETTING TABLE (MASKED PREPARATION FOR NEXT JOB EJECTION)
- E-3 1 UPPER CHASE QUICK-LOCK: FIXED BOTTOM PLATE, THICKNESS 2 MM, AND MAKE-READY PROTECTION PLATE MADE OF SYNTETHIC MATERIAL, THINCKNESS 1 MM.
- F-31 UPPER PULL-OUT FRAME QUICK LOCK DEVICE FOR STRIPPING ((decreases extraction tool assembly times. the quick-closing device allows the tool to be changed in the machine)
- F-8 1 LOWER STRIPPING PULL-OUT FRAME WITH ALL ITS TOOLS
- F-81 LOWER STRIPPING EQUIPMENT for waste stripping INCLUDING crossbars, pins and supports (installed on central pull-out frame F-8)

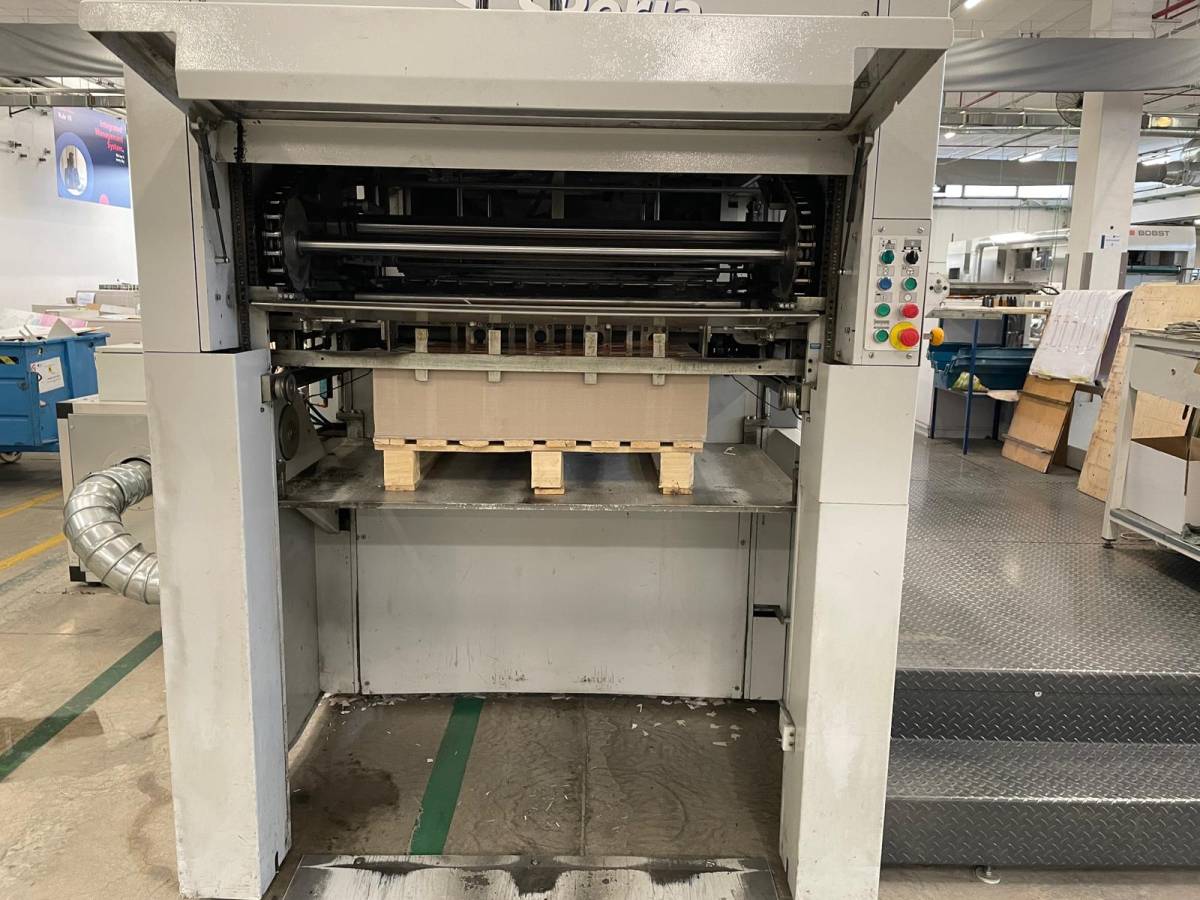

- Delivery
- Adjustable rear and side joggers with Centerline marks in delivery
- G-5 AUTOMATIC NON-STOP BELT : it is automatically introduced on delivery when the pile of sheets is finished
- Peripherals

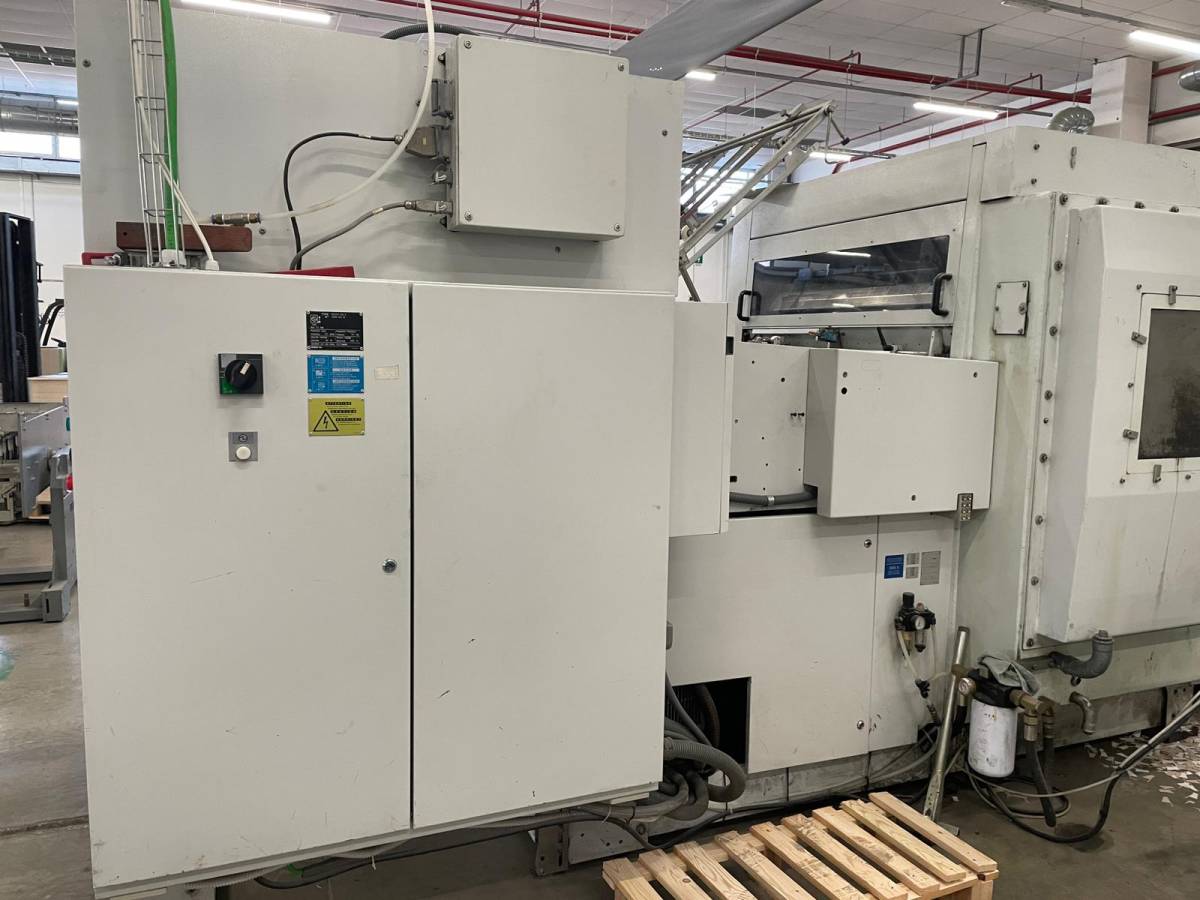

- Control cabinet cooling unit
- Various
- Cutting force 260 TON
- Electronic device for sheet travel control
- 7.700 speed/h (depending on cardboard and type of iob feature)
- Board quality processable : carta (min. 80g/m²); cartone (250/2000 g/m²); corrugate* (3 - 4 mm.) ( * ) Carton acceptable warp : 4% of the widthwise sheet
- Compliant with European Directives for essential safety and health standards relating to design and construction and with American standards UL 508 and NFPA concerning industrial equipment

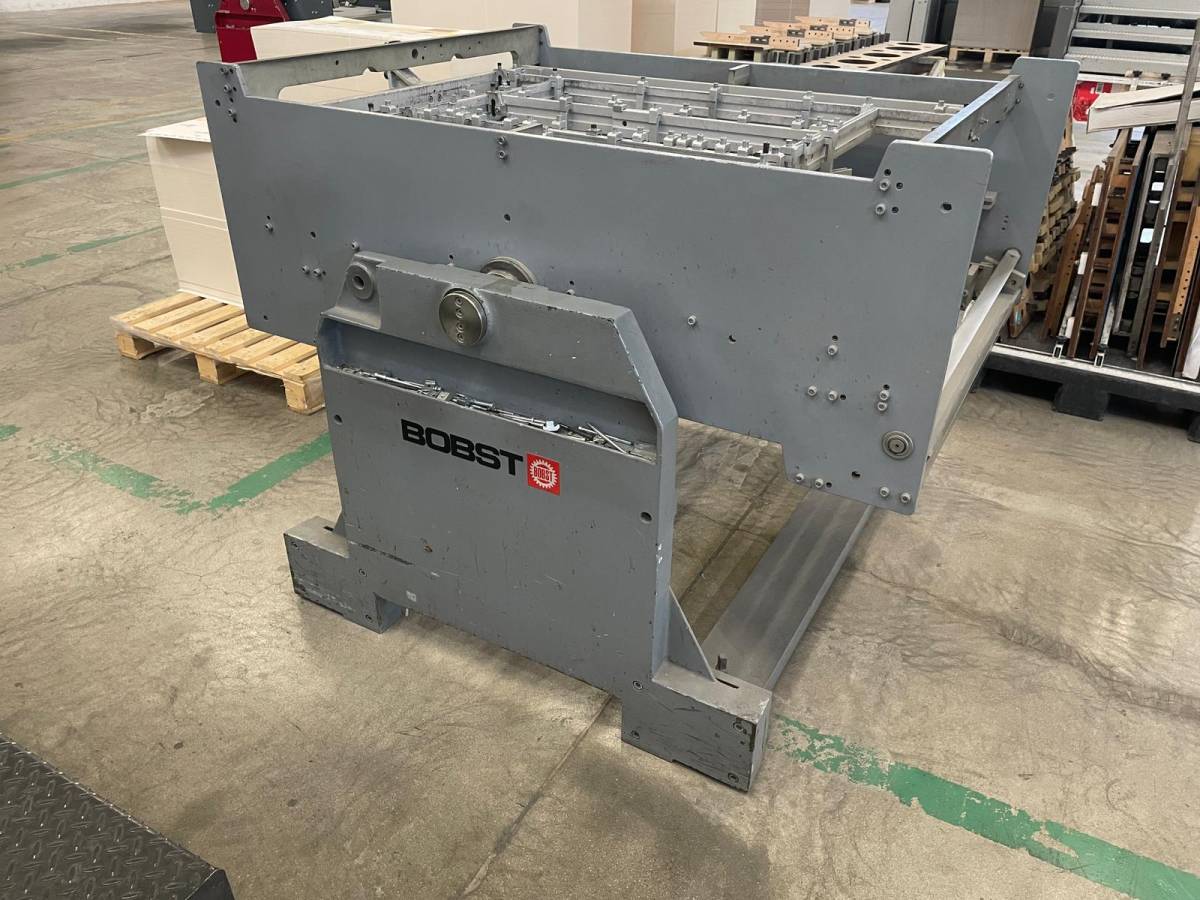

- M-5 CHASE CHANGER : allows the change and preparation of the chase and the die cutting corresponding to the next job (Includes an increase in the surface of the platform)
- B-7 PLATFORM

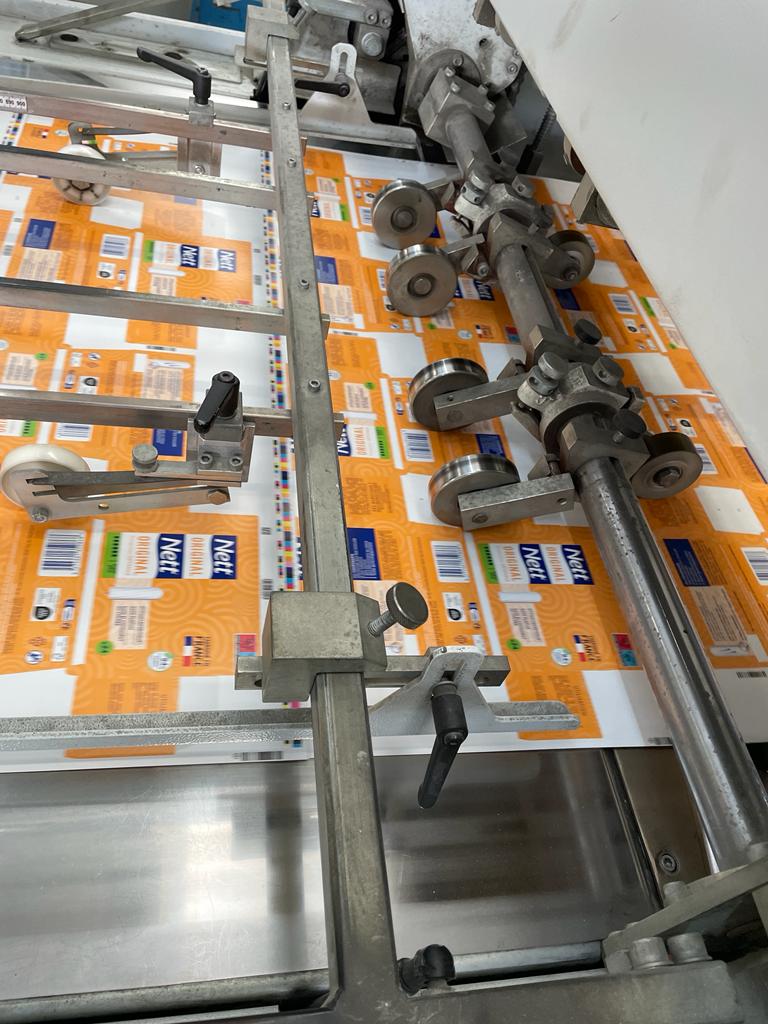

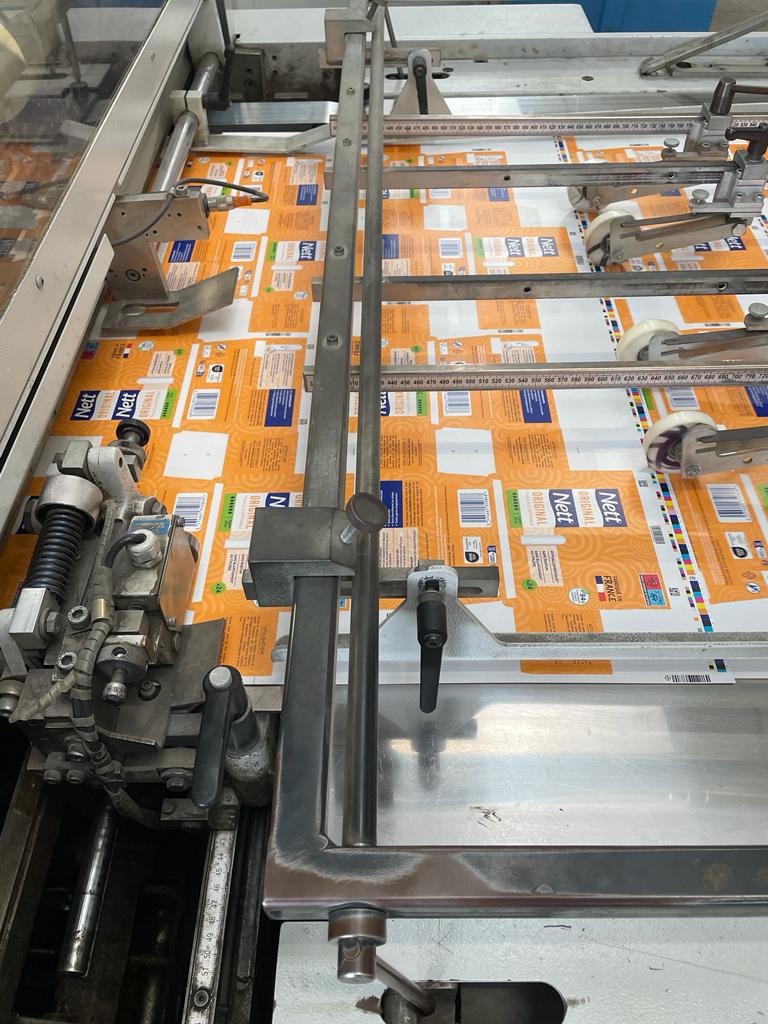

- Tavolo di introduzione

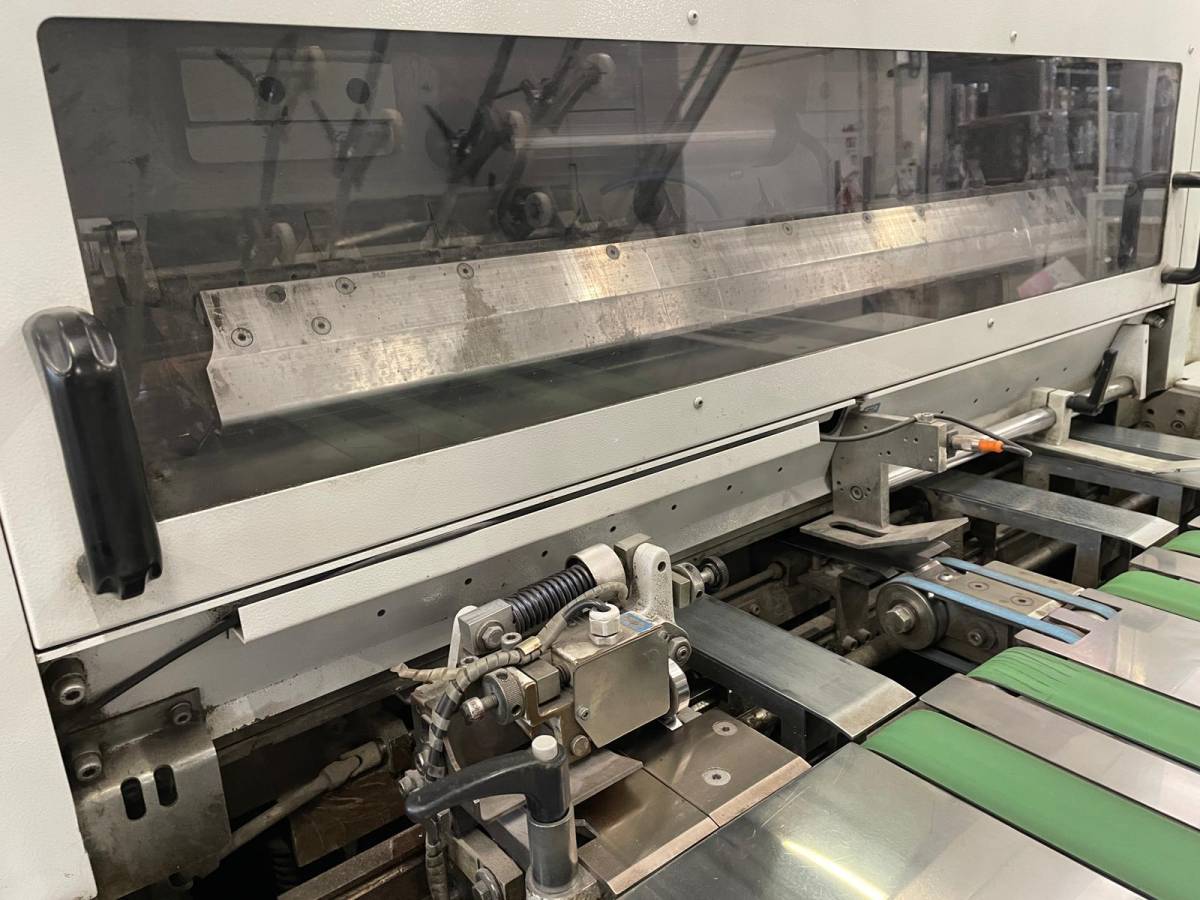

- Feed table with 4 front lays, adjustable in pairs with front register control

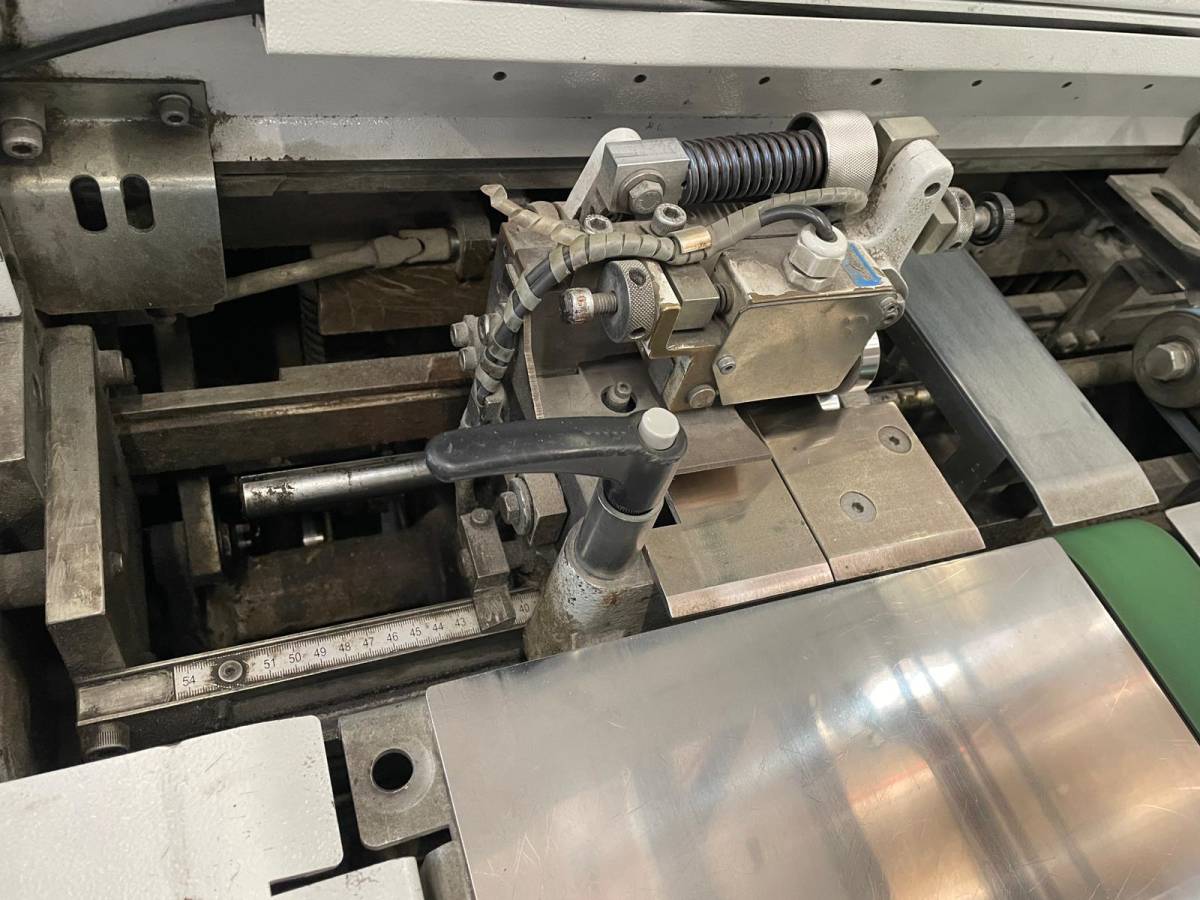

- Feed table with "Pull" guide (OS) adjustable according to Centerline marks, with side register control
- Feed table with double sheet detector. Mechanical, integrated on pull guide (OS)
- Feed table with sheet-hold down device (guiding the sheets to front lays)

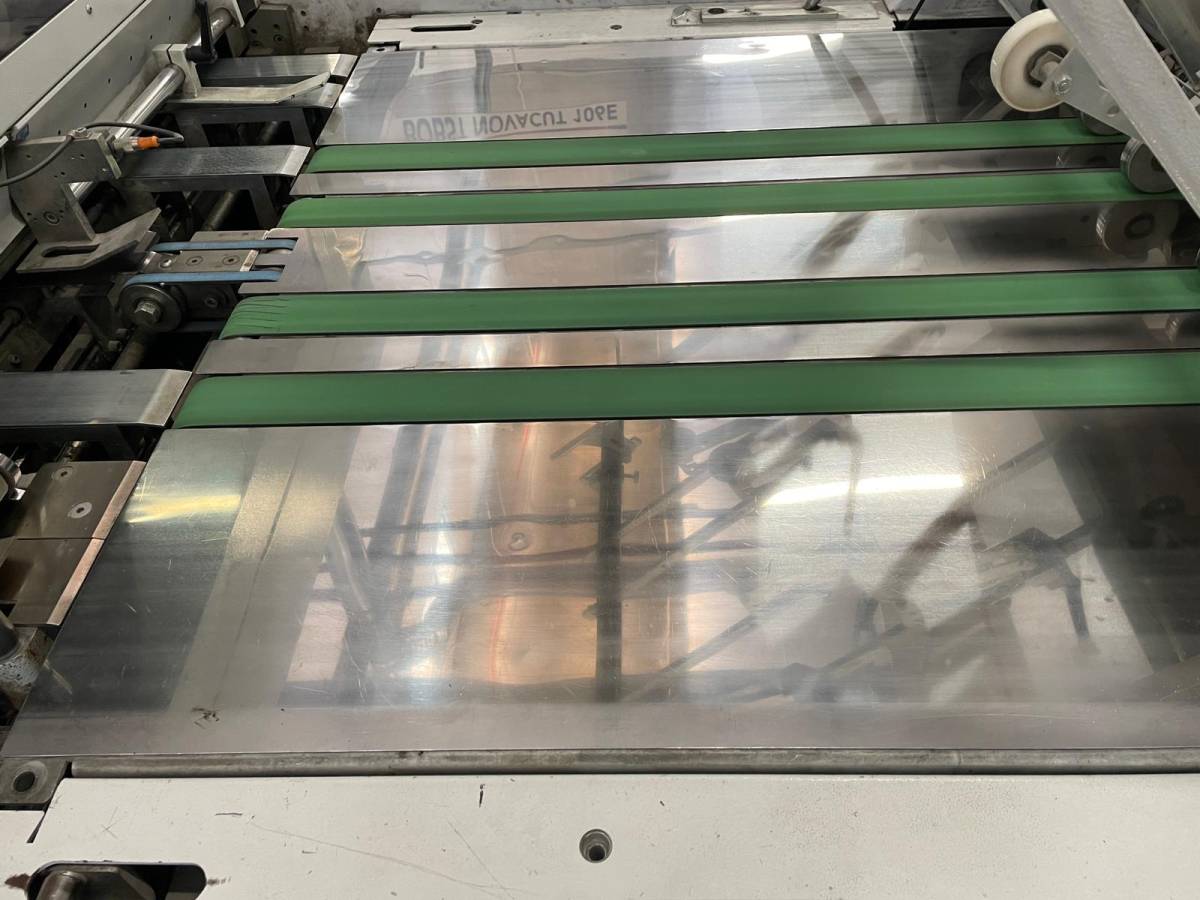

- Feed table with upper transport equipment for paper, paperboard and corrugated board
- Feed table with transport belts (with lateral guidance and automatic tensionning system)

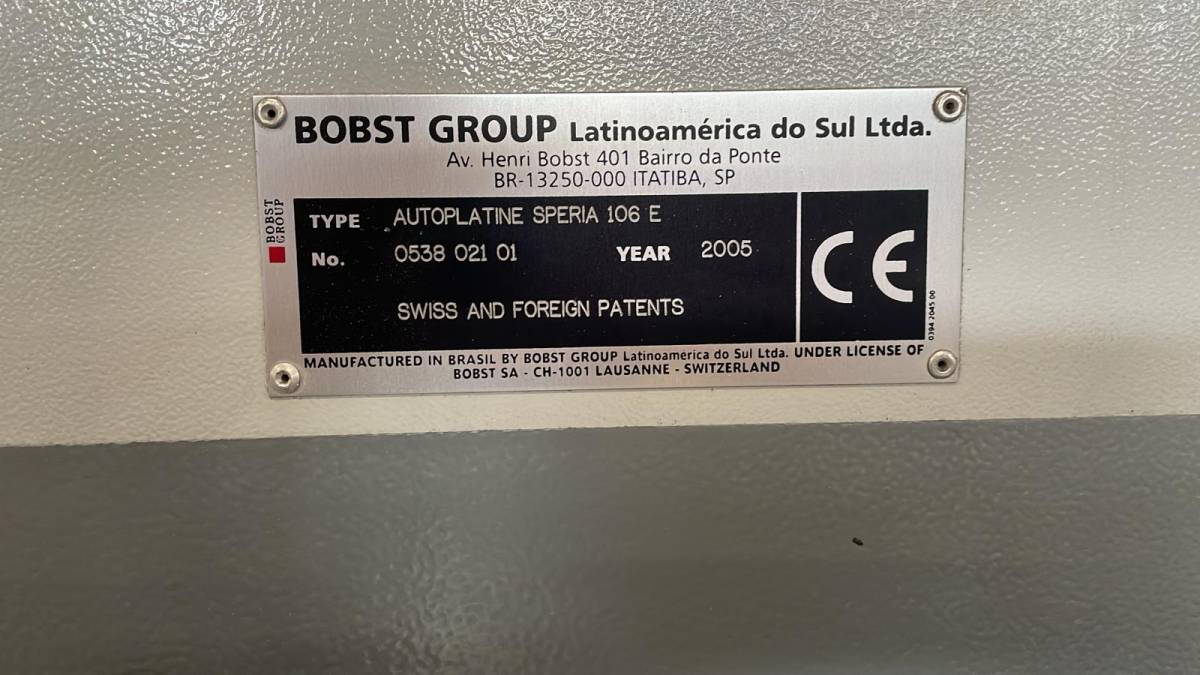

Machine overview

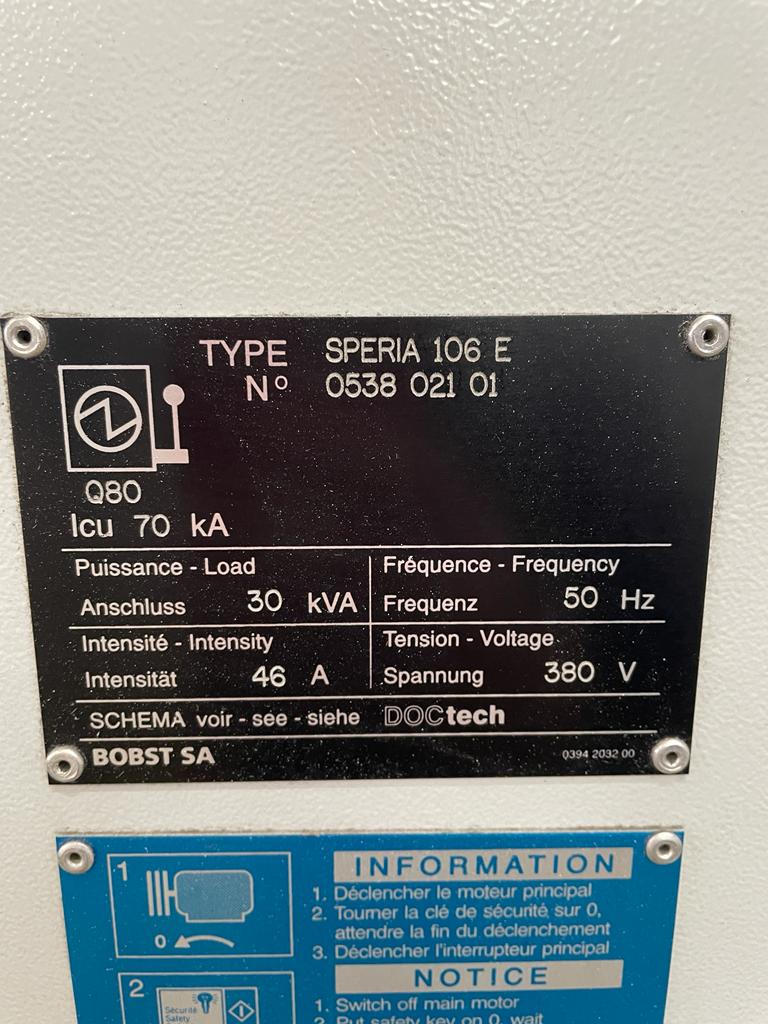

| Year | 2005 |
|---|---|
| Serial Number | 053802101 |
| N.of Impressions | 110.0 mio. |
“EXTRA” Accessories Overview
- C-4 NON-STOP FEEDER MANUAL DEVICE
- C-5 SYNCHRONIZATION DEVICE TIMING THE SHEET ARRIVAL AGAINST THE FRONT LAYS WHEN THE MACHINE IS AT A STANDSTILL
- E-5 COMPENSATING PLATE. THICKNESS 4 MM. IN GROUND STEEL
- E-55 ADJUSTABLE SUPPORTING PLATE CENTERINGS
- Lower stripping equipment for waste stripping including crossbars, pins and supports (This equipment mounts on central pull-out frame quick-lock)
- Outside table for the preparation of the stripping unit
- 1 central stripping quick lock
- 1 upper pull-out frame quick lock
- 1 Lower central pull-out frame quick-lock (Stripping Station)
- F-9 SETTING TABLE (MASKED PREPARATION FOR NEXT JOB EJECTION)
- E-3 1 UPPER CHASE QUICK-LOCK: FIXED BOTTOM PLATE, THICKNESS 2 MM, AND MAKE-READY PROTECTION PLATE MADE OF SYNTETHIC MATERIAL, THINCKNESS 1 MM.
- F-31 UPPER PULL-OUT FRAME QUICK LOCK DEVICE FOR STRIPPING ((decreases extraction tool assembly times. the quick-closing device allows the tool to be changed in the machine)
- F-8 1 LOWER STRIPPING PULL-OUT FRAME WITH ALL ITS TOOLS
- F-81 LOWER STRIPPING EQUIPMENT for waste stripping INCLUDING crossbars, pins and supports (installed on central pull-out frame F-8)
- G-5 AUTOMATIC NON-STOP BELT : it is automatically introduced on delivery when the pile of sheets is finished
- M-5 CHASE CHANGER : allows the change and preparation of the chase and the die cutting corresponding to the next job (Includes an increase in the surface of the platform)
- B-7 PLATFORM
Reference Overview
| Reference | 24036406 |
|---|---|
| Visible | Sbm Rebuilding Center of Robecco sul Naviglio (MI) |
| Availability | Immediately |
