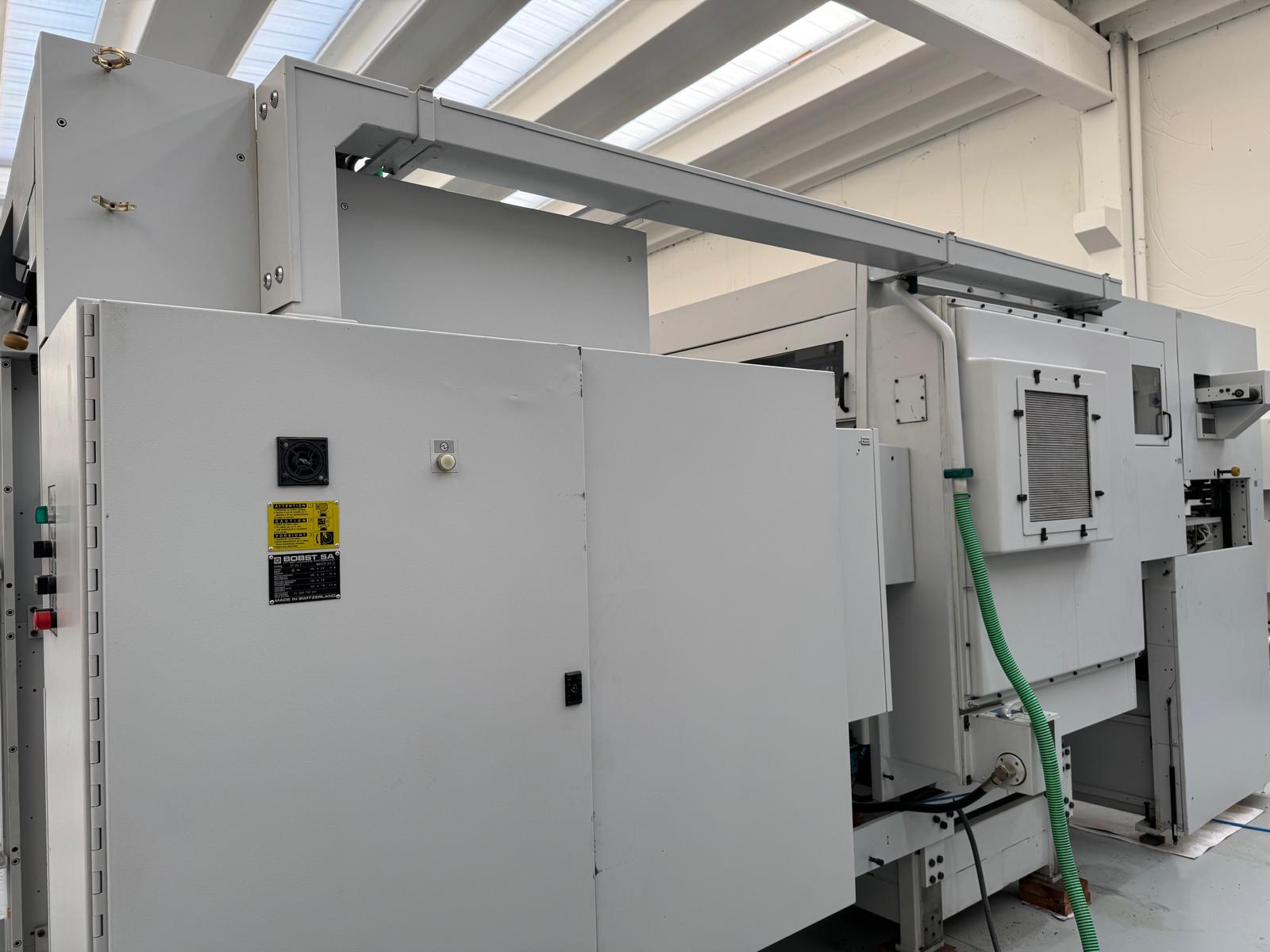

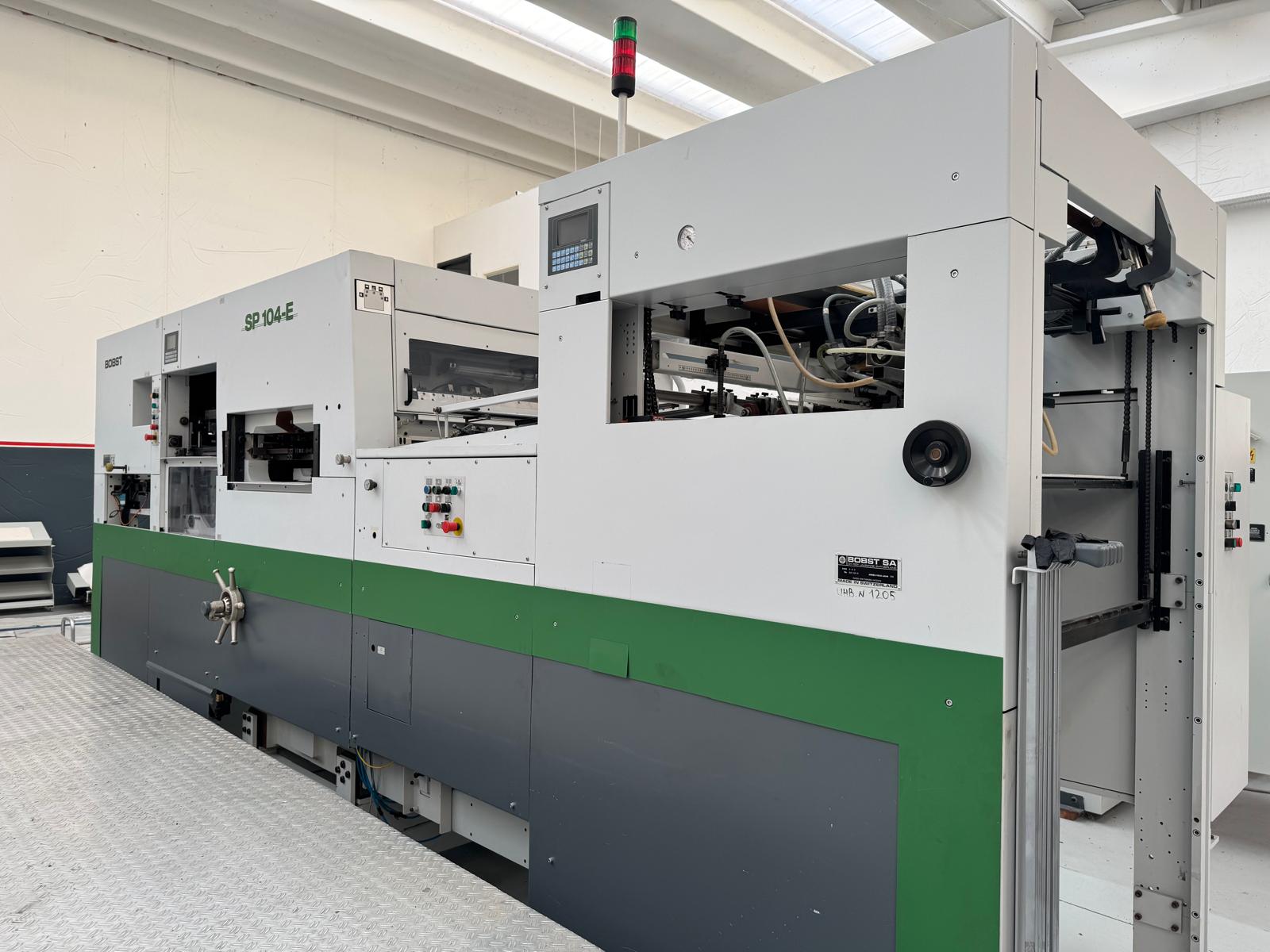

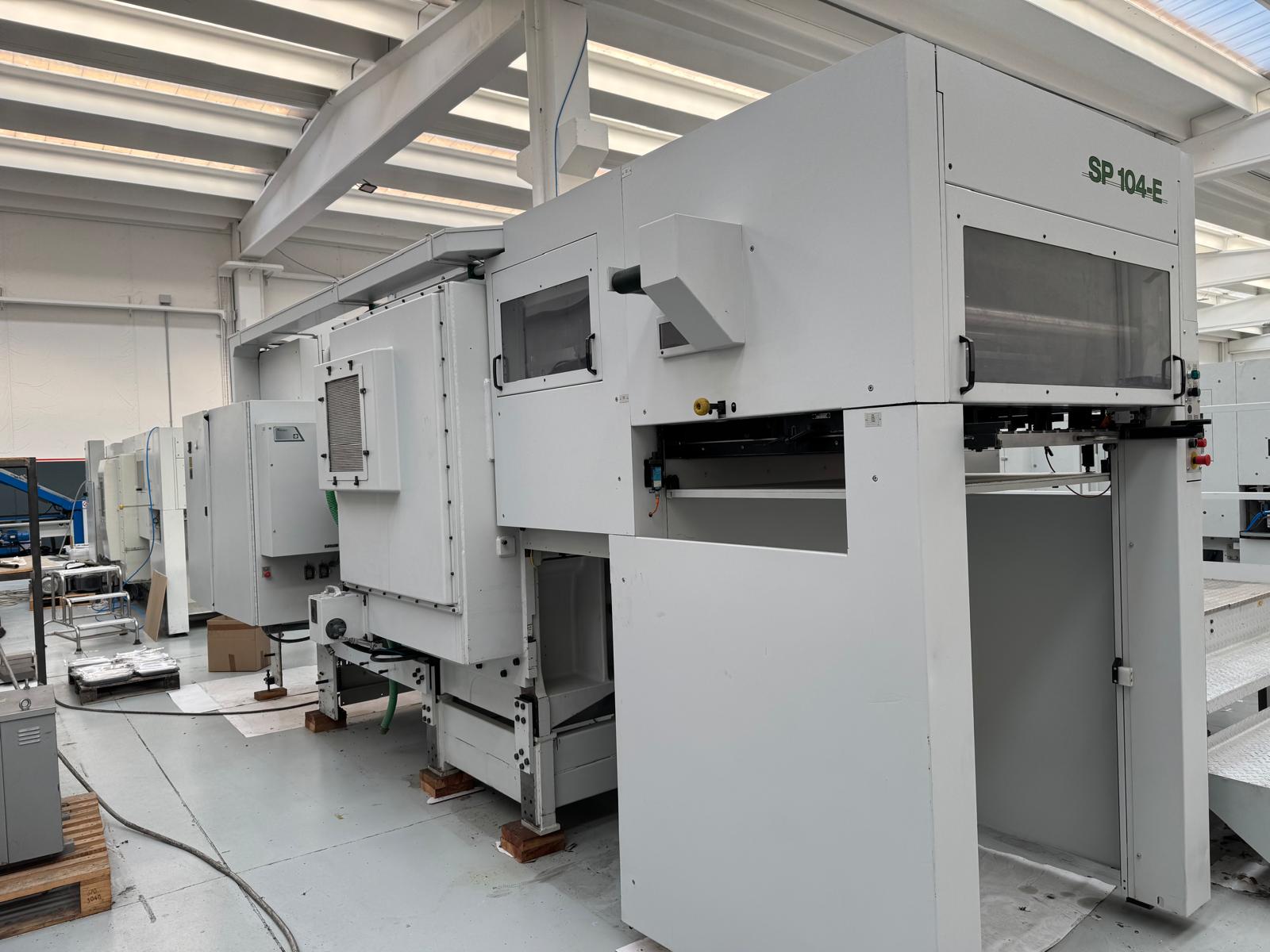

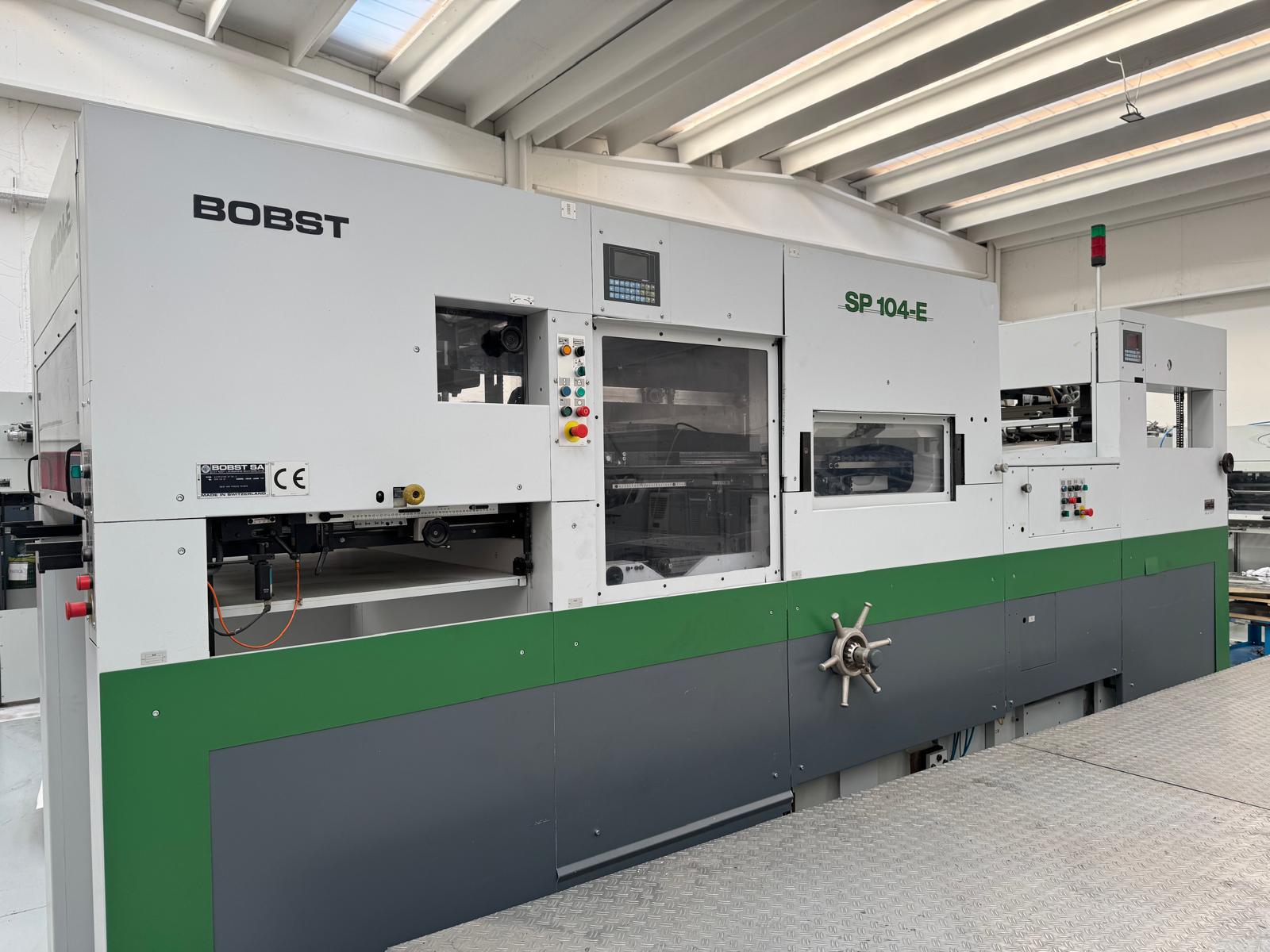

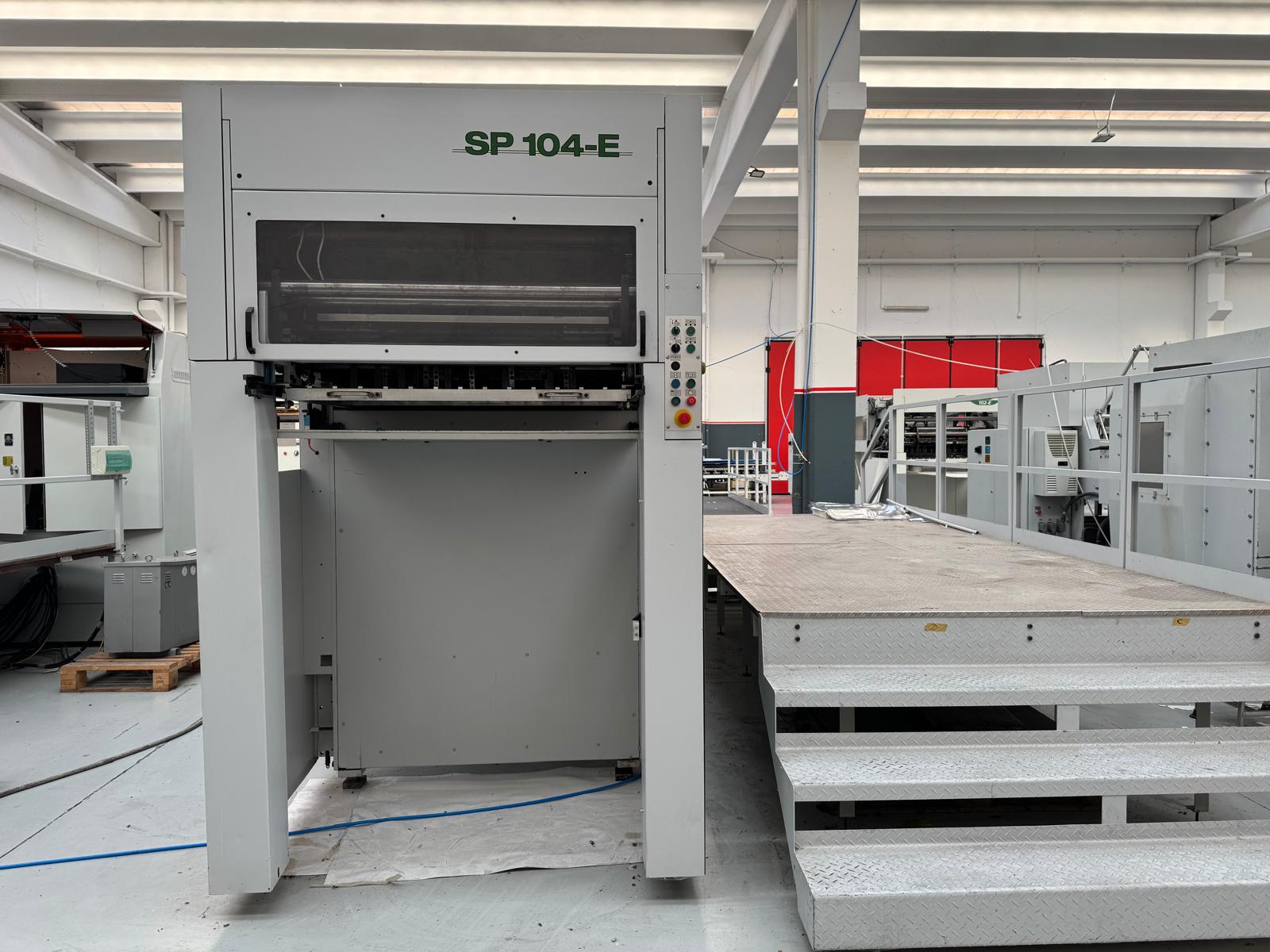

Bobst SP 104 E
| Reference | 23036313 |
|---|---|
| Type | Die Cutting/fustellatrici |
| Manufacturer | Bobst |
| Model | SP 104 E |
| Year | 1998 |

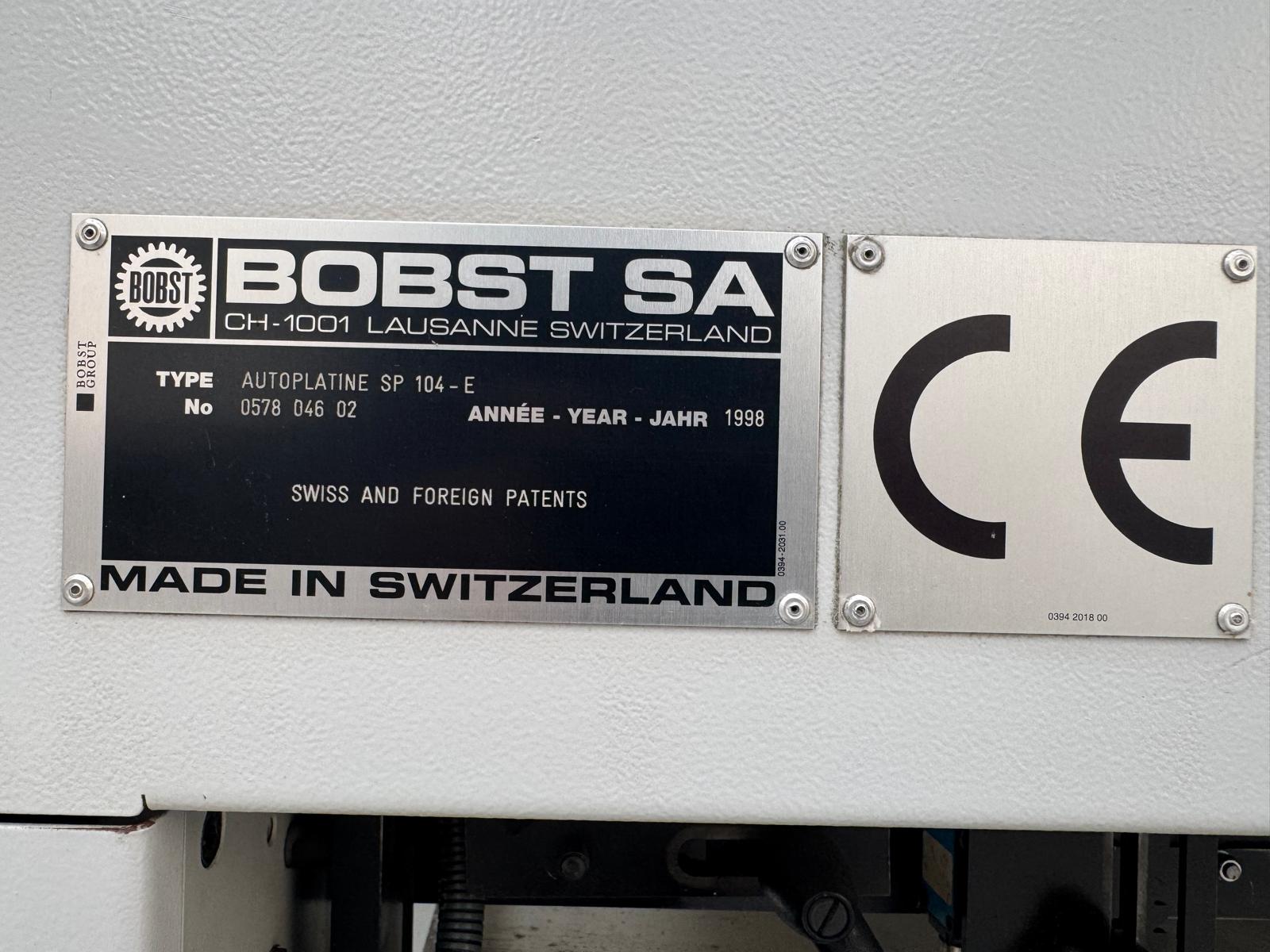

| Serial Number | 057804602 |
DETAILS
| Visible | Sbm Rebuilding Center of Robecco sul Naviglio (MI) |
|---|---|
| Availability | 30/05/2023 |
| Max sheet size | 104 x 74 |
| Min sheet size | 35 x 40 |
Accessories

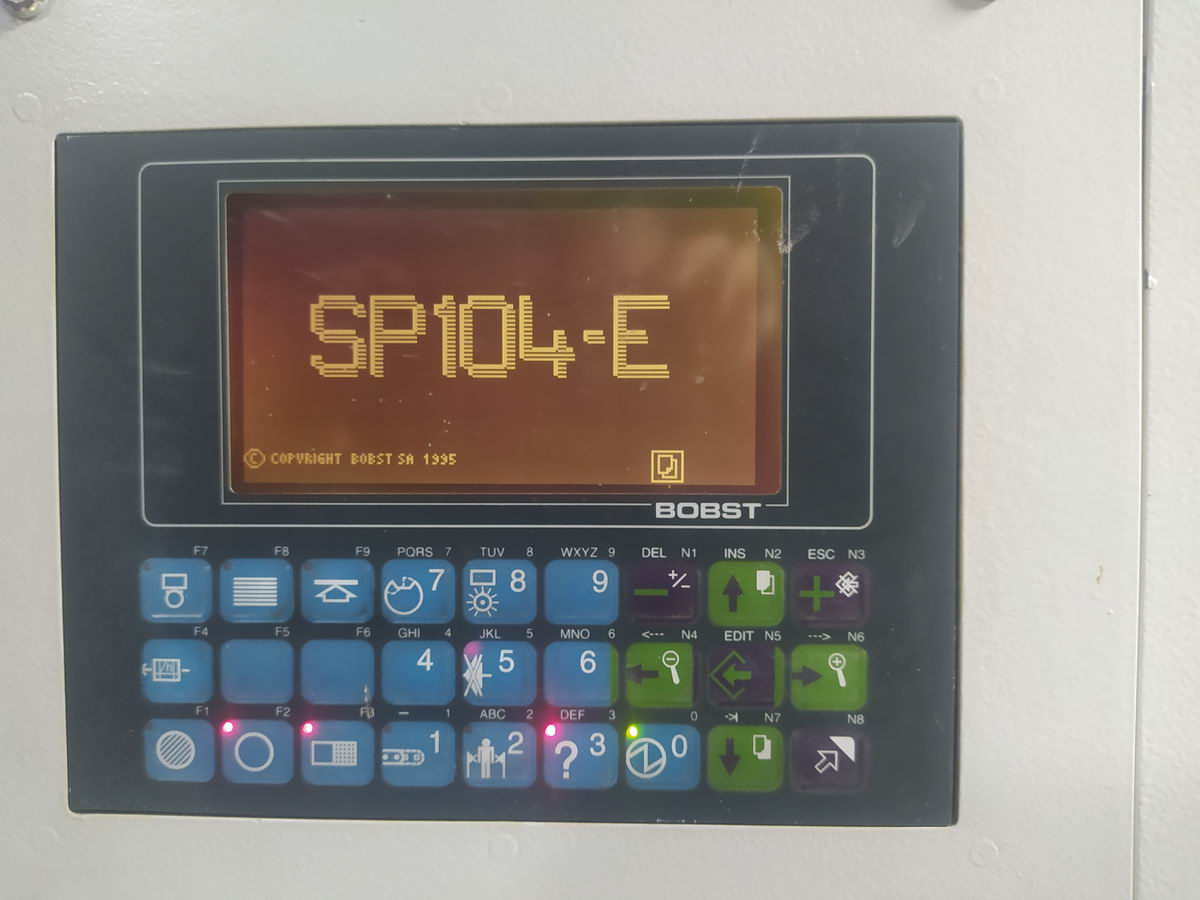

- No. 2 CUBE control system (One to the Stripping unit and one to the feeder unit)

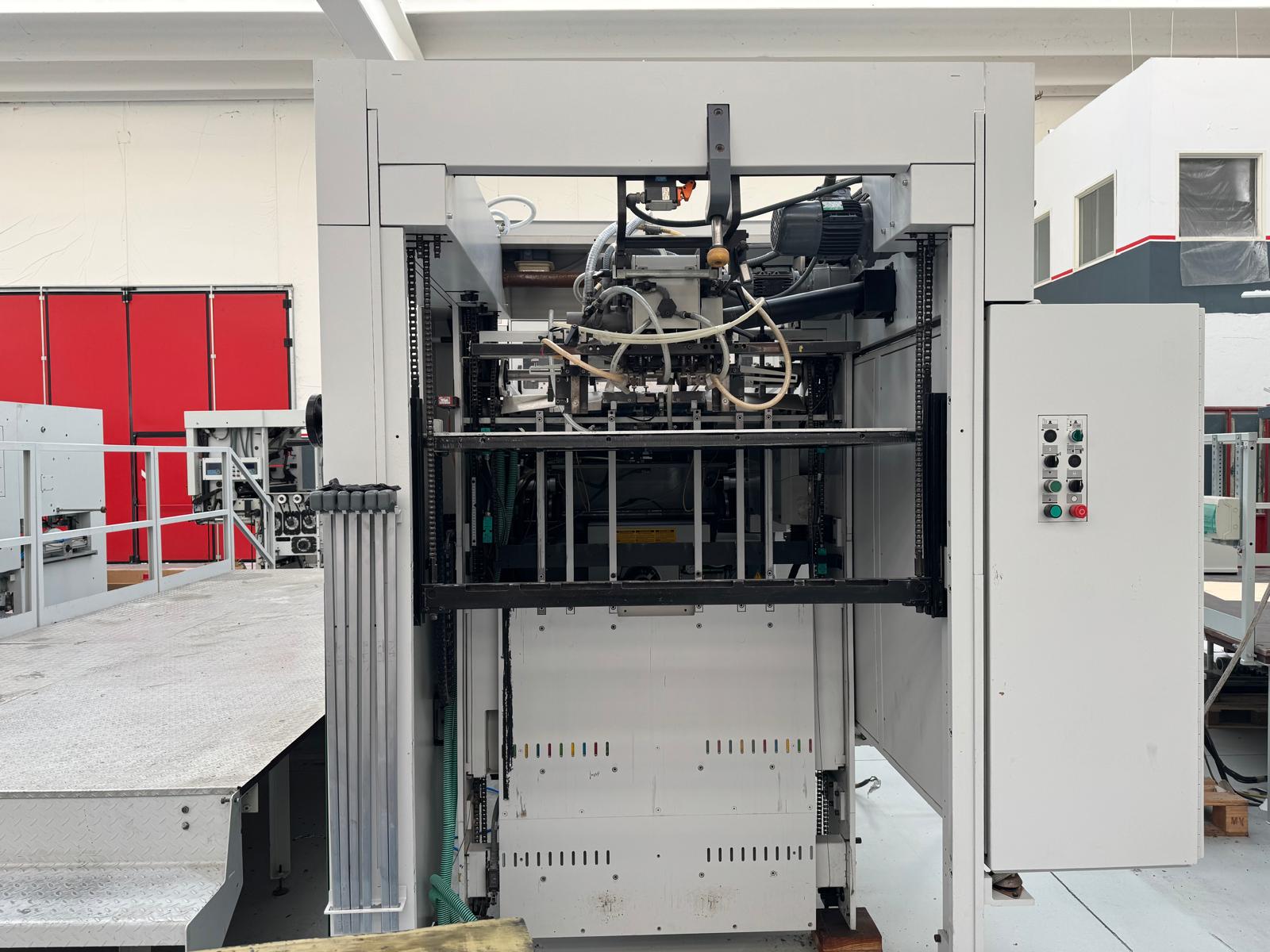

- Automatic Universal feeder with Non-stop facility
- Standard Feeder with all its equipment

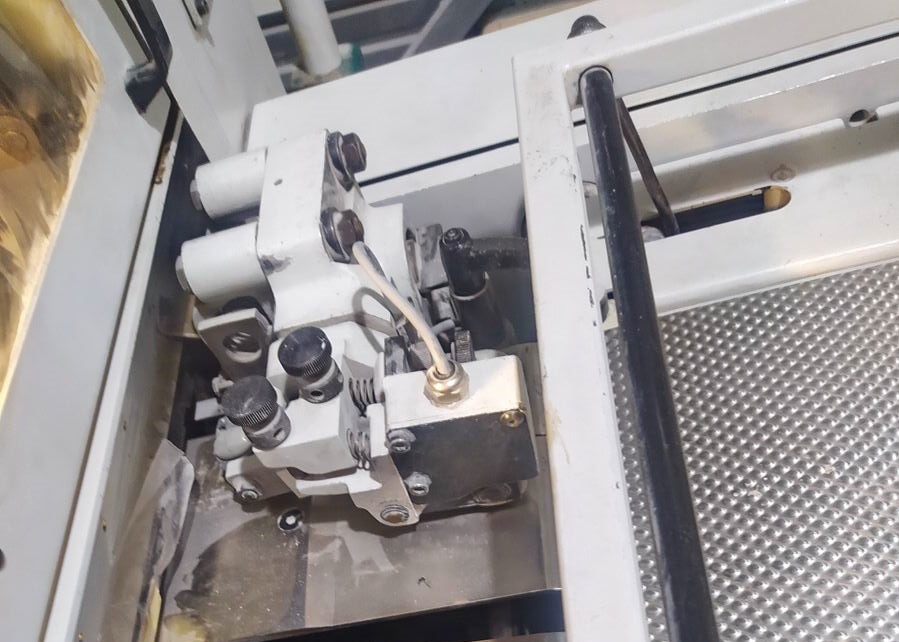

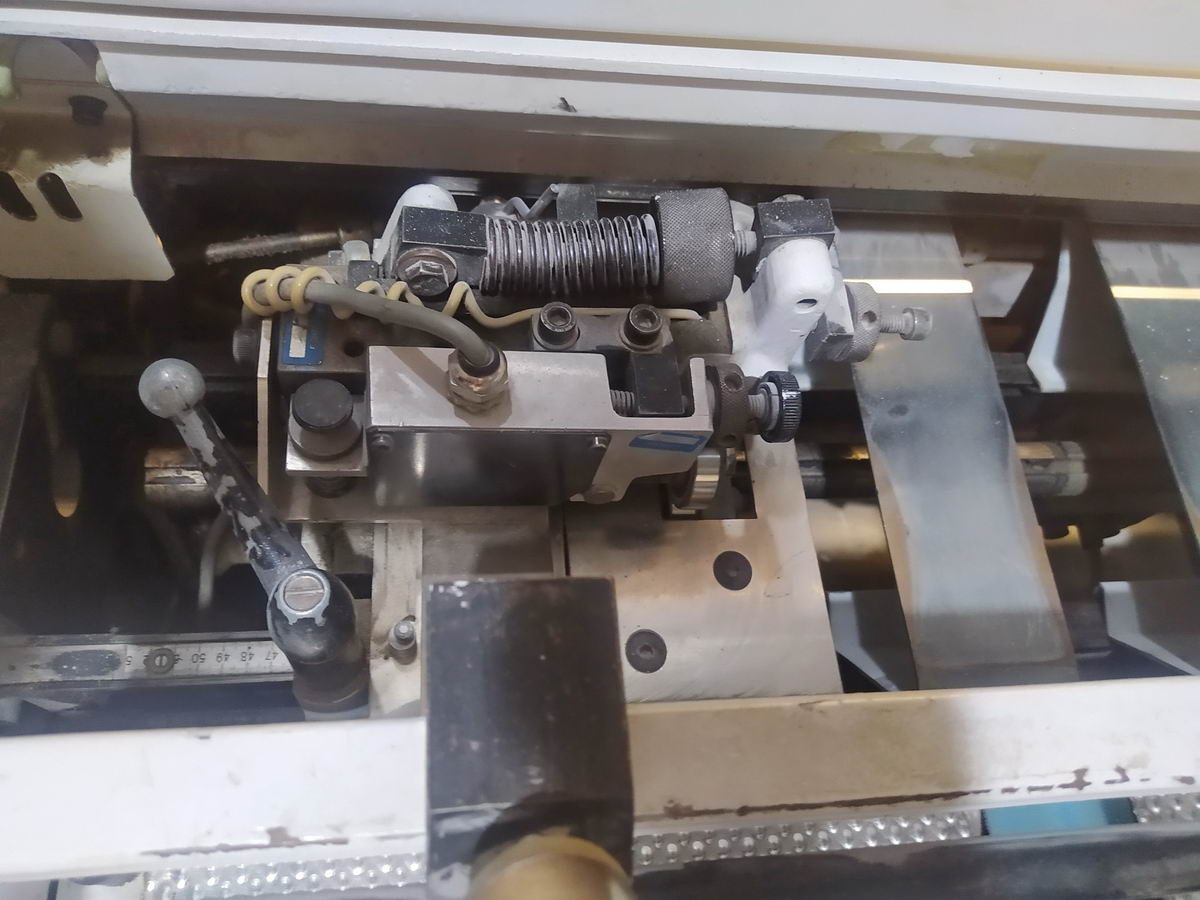

- Pull lay operator side
- Push lay opposite operator side
- Non-stop on feeder with swords
- Automatic lateral pile adjusting
- E 55 ADJUSTABLE SUPPORTING PLATE CENTERINGS : micromeric screws allow fine adjustment of counters mounted on the cutting plate with respect to the die (+/- 0,9 mm lengthwise and crosswise.
- Cutting plate with micrometric adjustment for 1 mm thin plates
- 1 die-cutting closed bottom frame with quick tightening

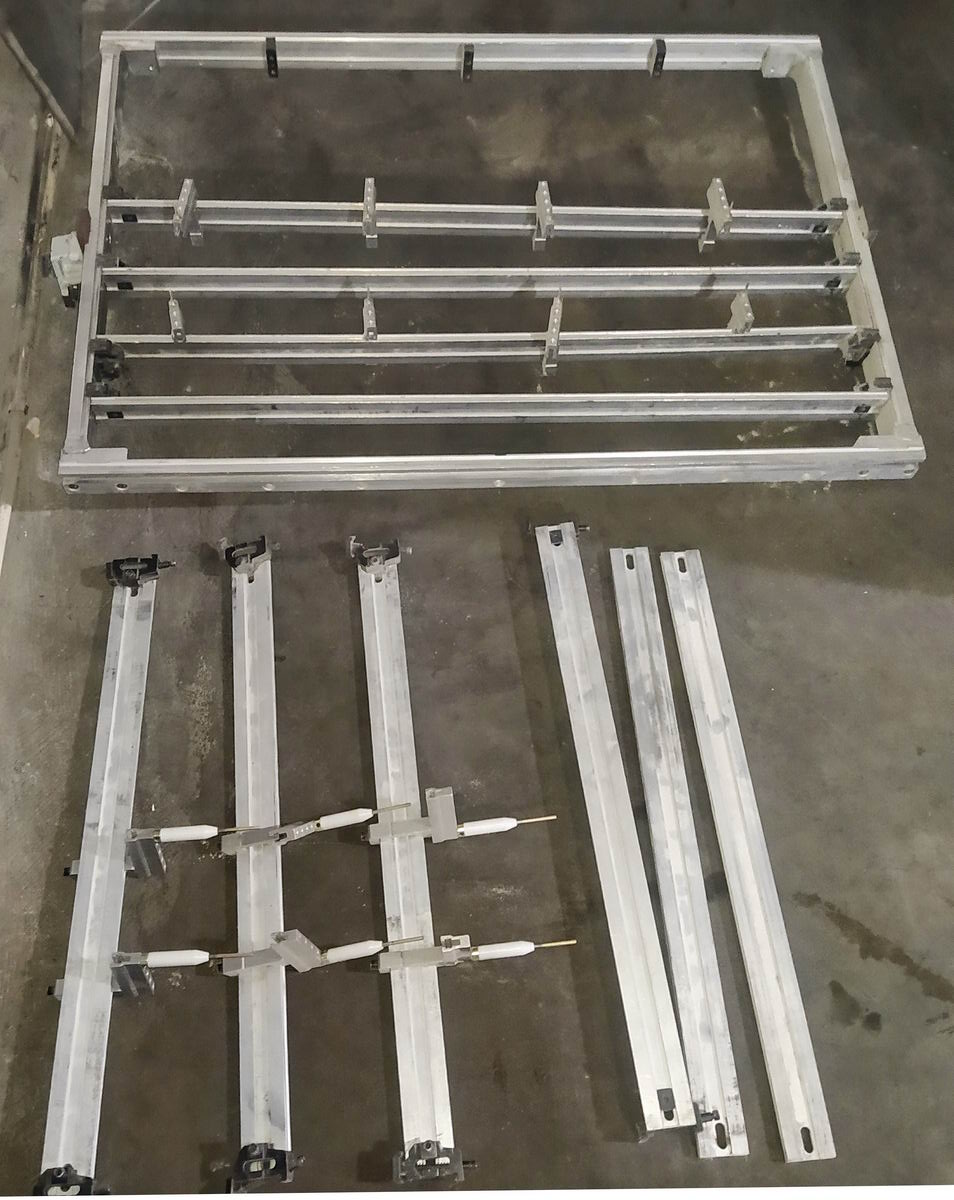

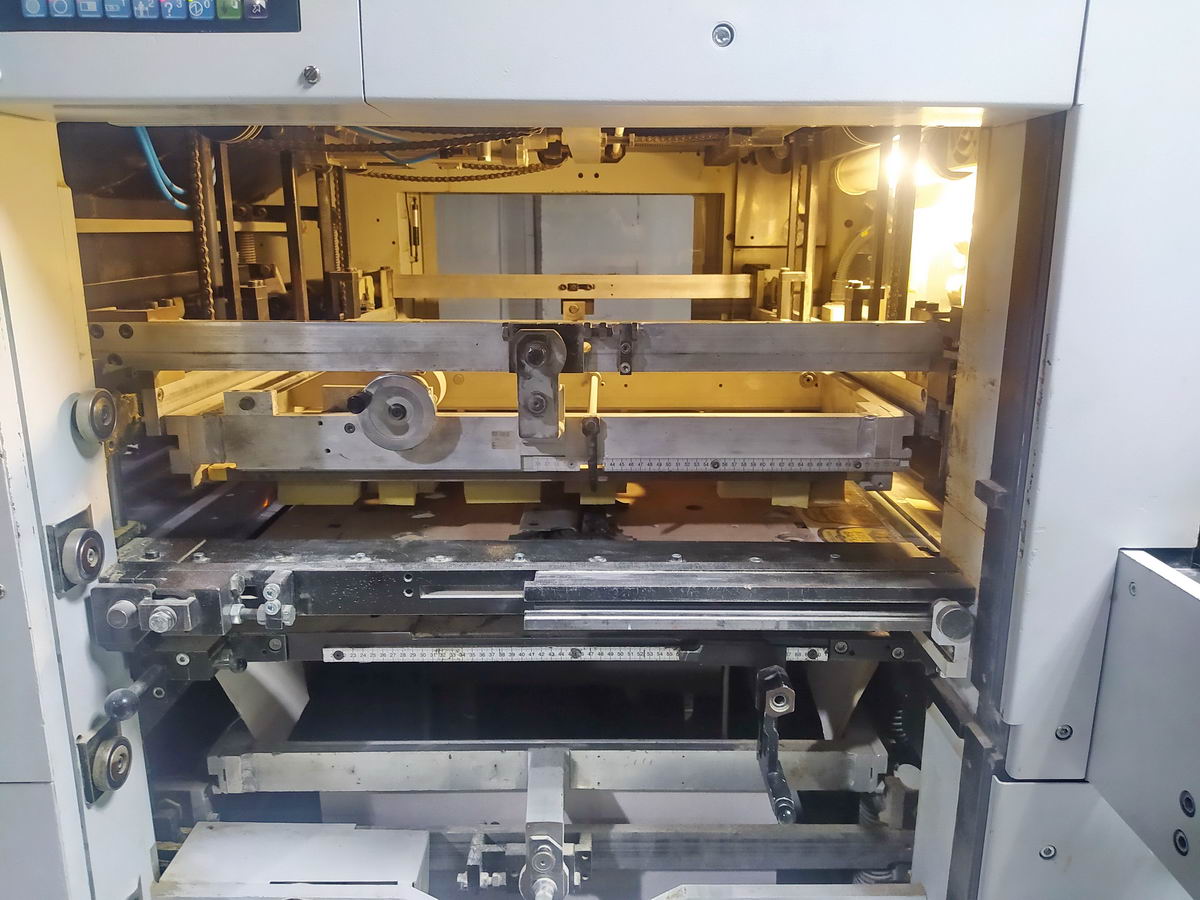

- 1 die-cutting upper stripping frame with Quick Lock
- 1 central stripping frame quick lock
- 1 lower stripping frame with all its standard equipment
- Non-stop delivery with grill

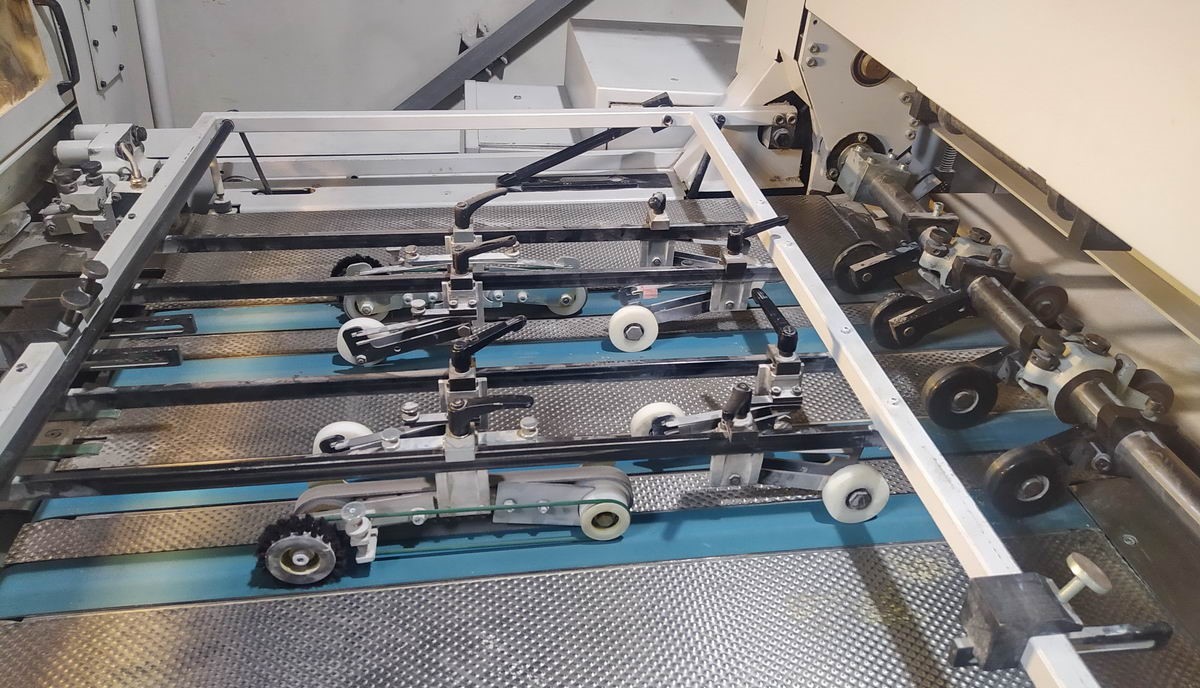

- Pivoting joggers for sheet control
- G-4 FRONT TRIM ELIMINATION DEVICE with evacuation belt on the operator opposite side
- Speed 8.500 s/h
- Elevated 410 mm
- Centerline system for quick job changeover
