Used Post-Press machines for Sale
BOBST HEIDELBERG POLAR STAHL
Enlarge

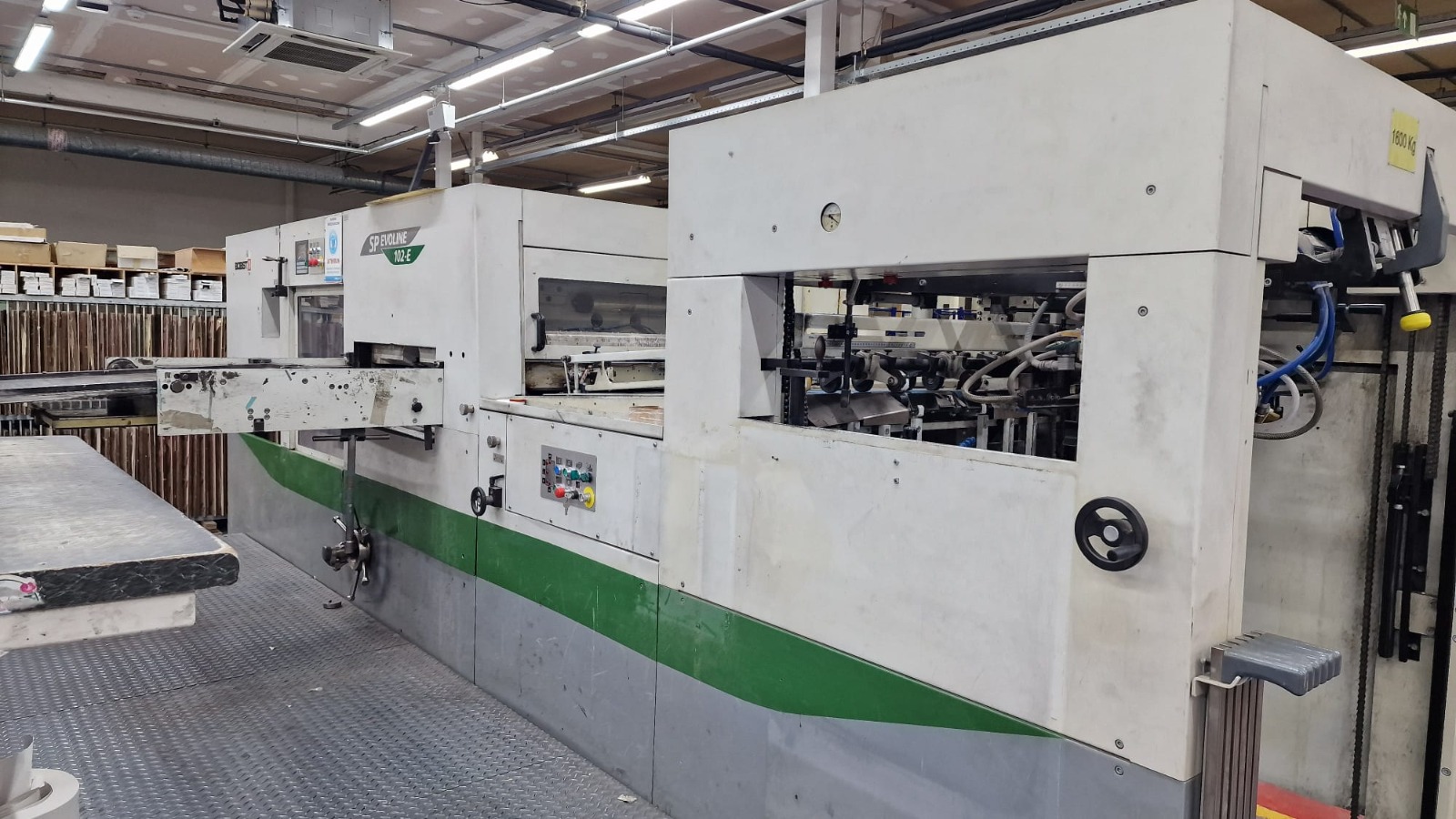

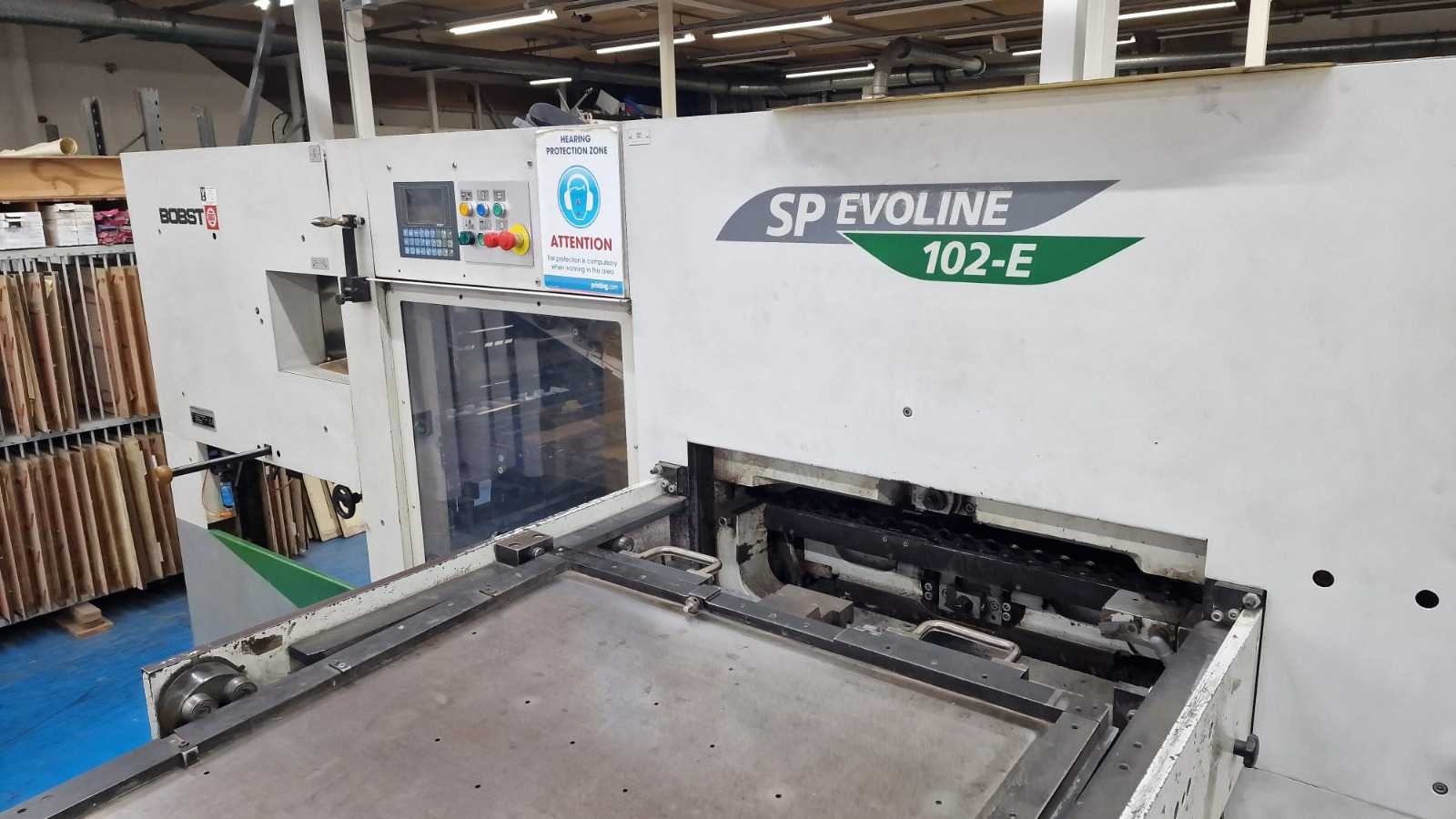

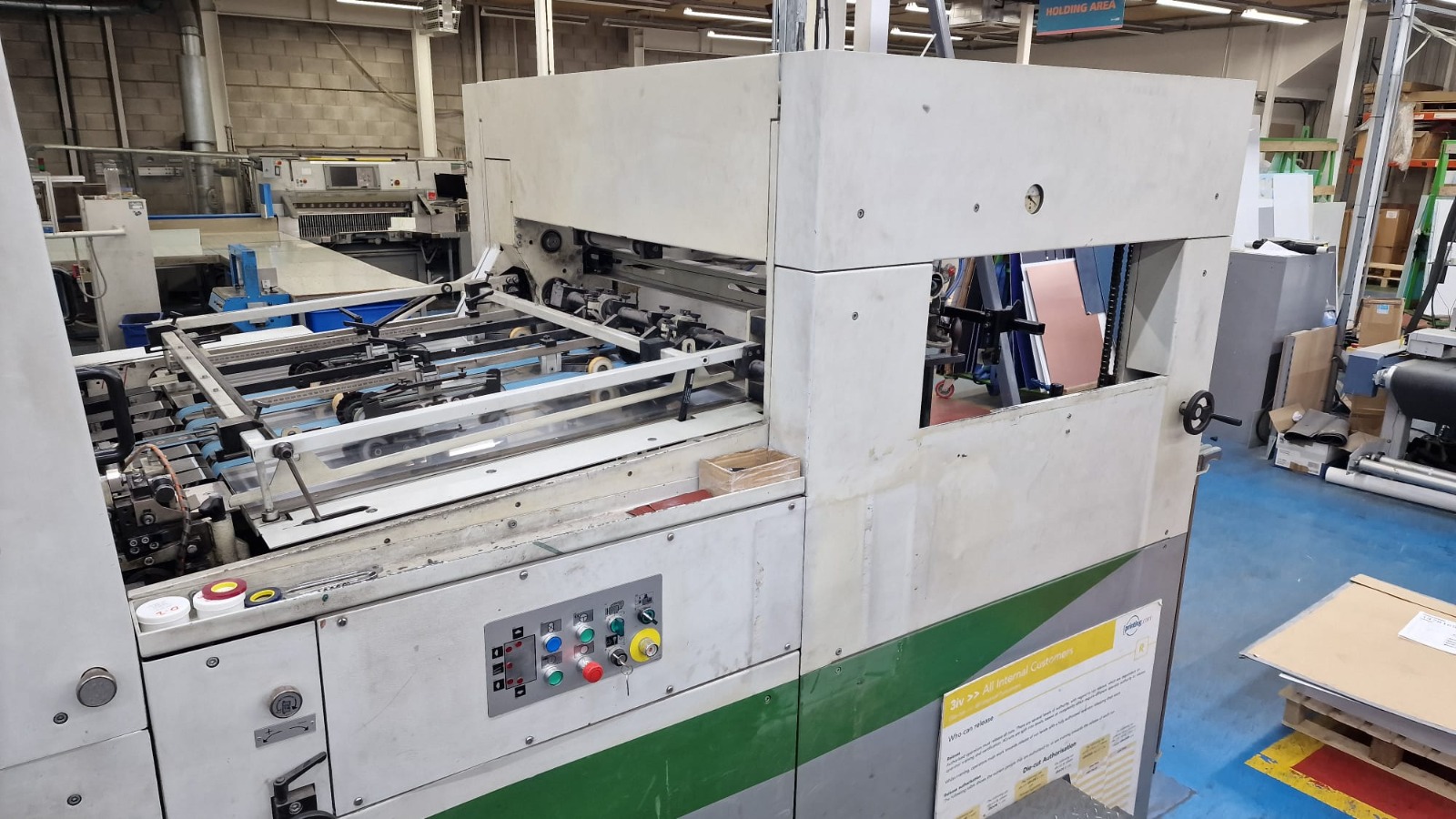

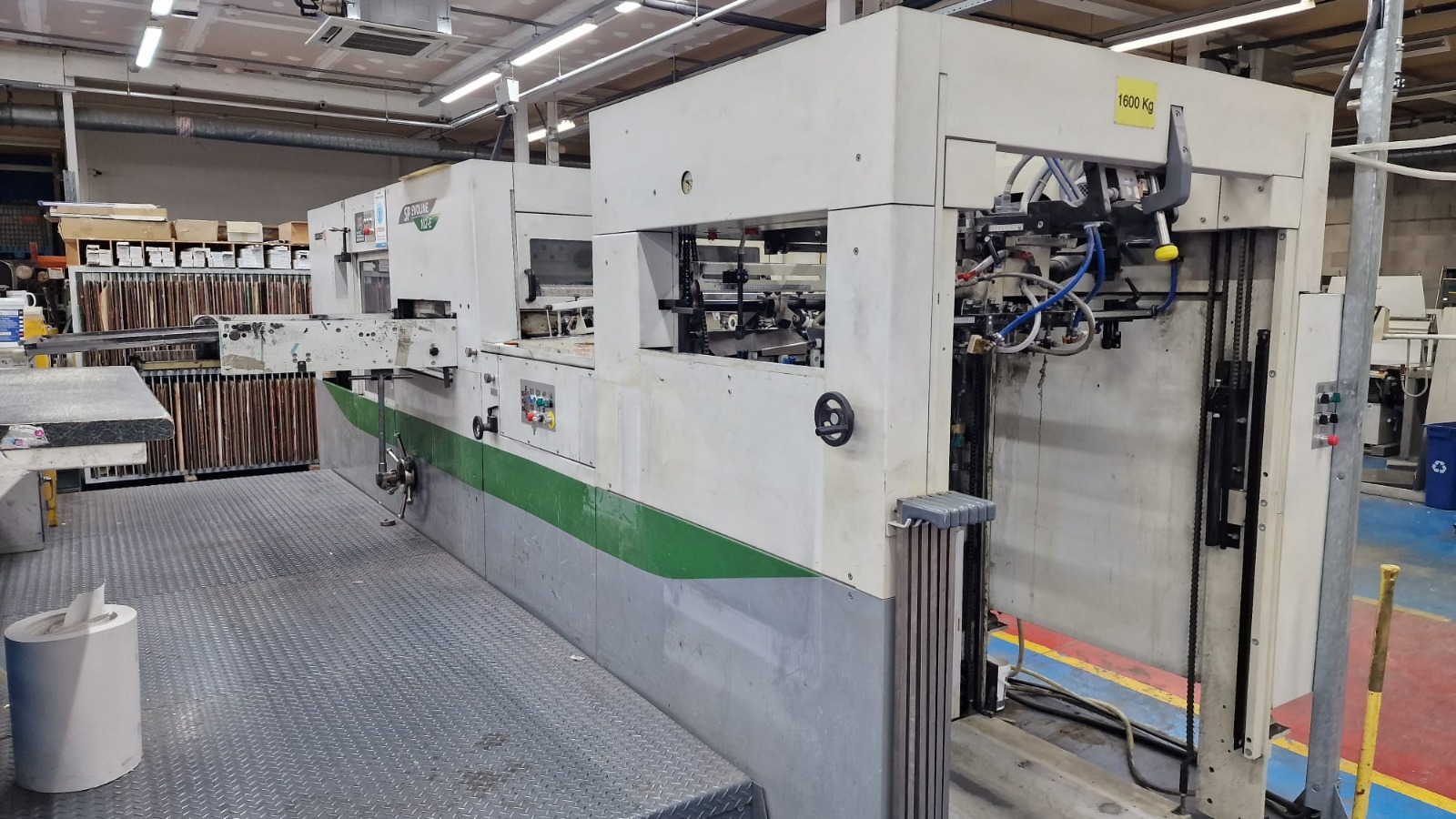

Bobst SP EVOLINE 102-E
The machine was selected and carefully inspected by our engineers prior to purchase.
MACHINE SPECIFICATION
| Manufacturer | Bobst |
|---|---|
| Model | SP EVOLINE 102-E |
| Type | Die Cutting/fustellatrici |
TECHNICAL DATA
| Max sheet size | 720 x 1020 |
|---|---|
| Min sheet size | 400 x 350 |
Accessories
- Machine
- Centerline system for quick job changeover
- Console
- CUBE control system
- Feeder
- Pull lay operator side
- Standard Feeder with all its equipment
- Non-stop device on feeder
- Platin
- Micrometric system with compensation plate 3 mm and 1 mm small sheet metal
- Diecutting chase (fixed bottom plate)
- Stripping Station
- CENTRAL PULL-OUT FRAME QUICK LOCK ON STRIPPING UNIT WITH ALL ITS TOOLS
- 1 lower stripping frame with all its standard equipment
- Delivery
- Non-stop delivery with grill
- Various
- Cutting force 250 TON
- Board quality processable : carta (min. 80g/m²); cartone (250/2000 g/m²); corrugato "E" e "B" (max 4 mm.)
- Cutting size: with frontal cut (max. 705 x 1020 mm.); without front cut (max. 720 x 1020 mm.)
- 7.500 speed/h (depending on cardboard and type of iob feature)
- Pile height at feeder : With non-stop system (max. 1100 mm.) - Without non-stop system (max. 1.400 mm.)
- Complete with aluminium bars, supports for noddles and noddles
- CE Machine
- All books, electrical scheme, manual instruction books, spare parts books and standard tools
- Adjustable gripper grip from: 9 - 17 mm
Machine overview

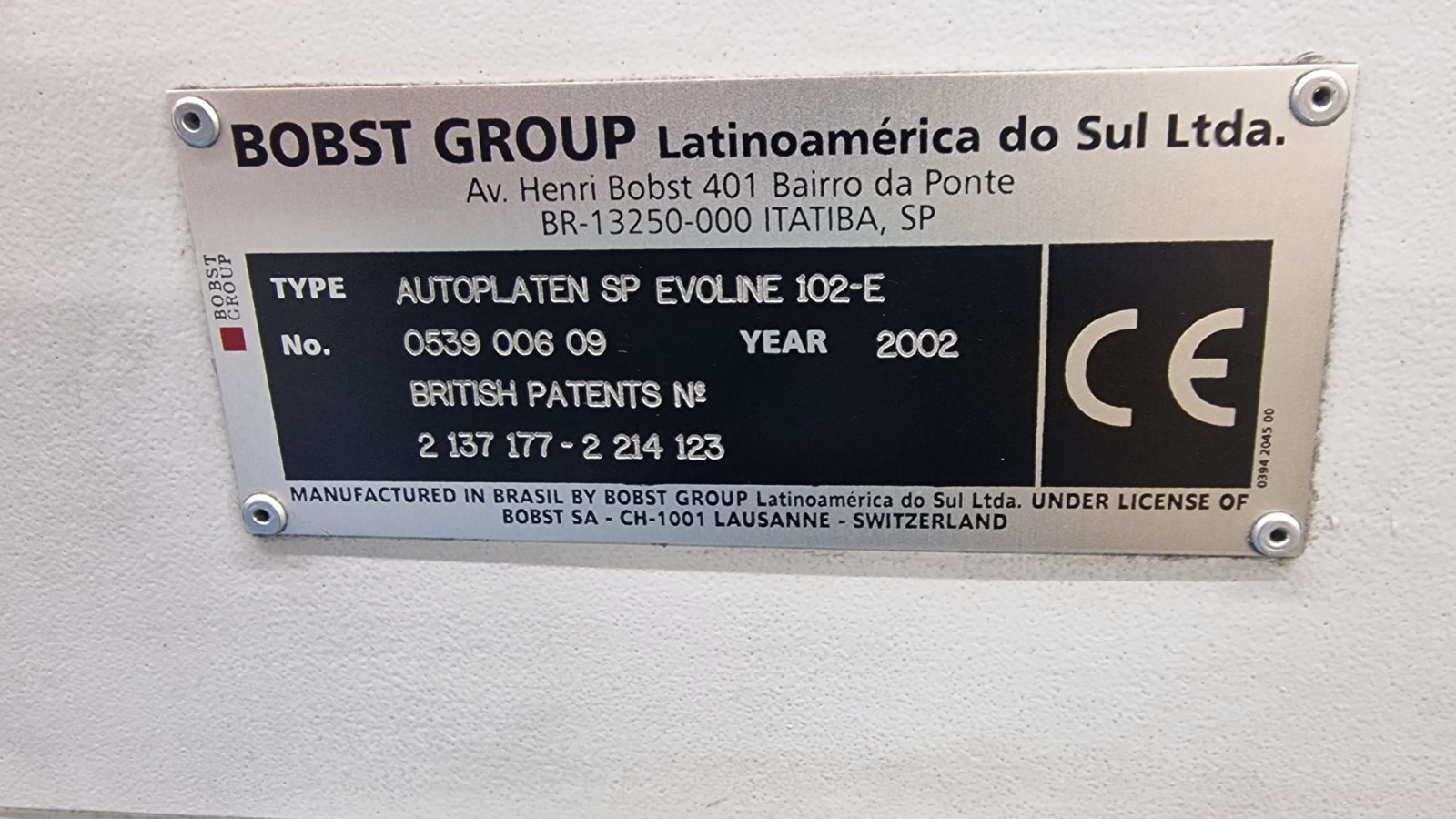

| Year | 2002 |
|---|---|
| Serial Number | 053900609 |

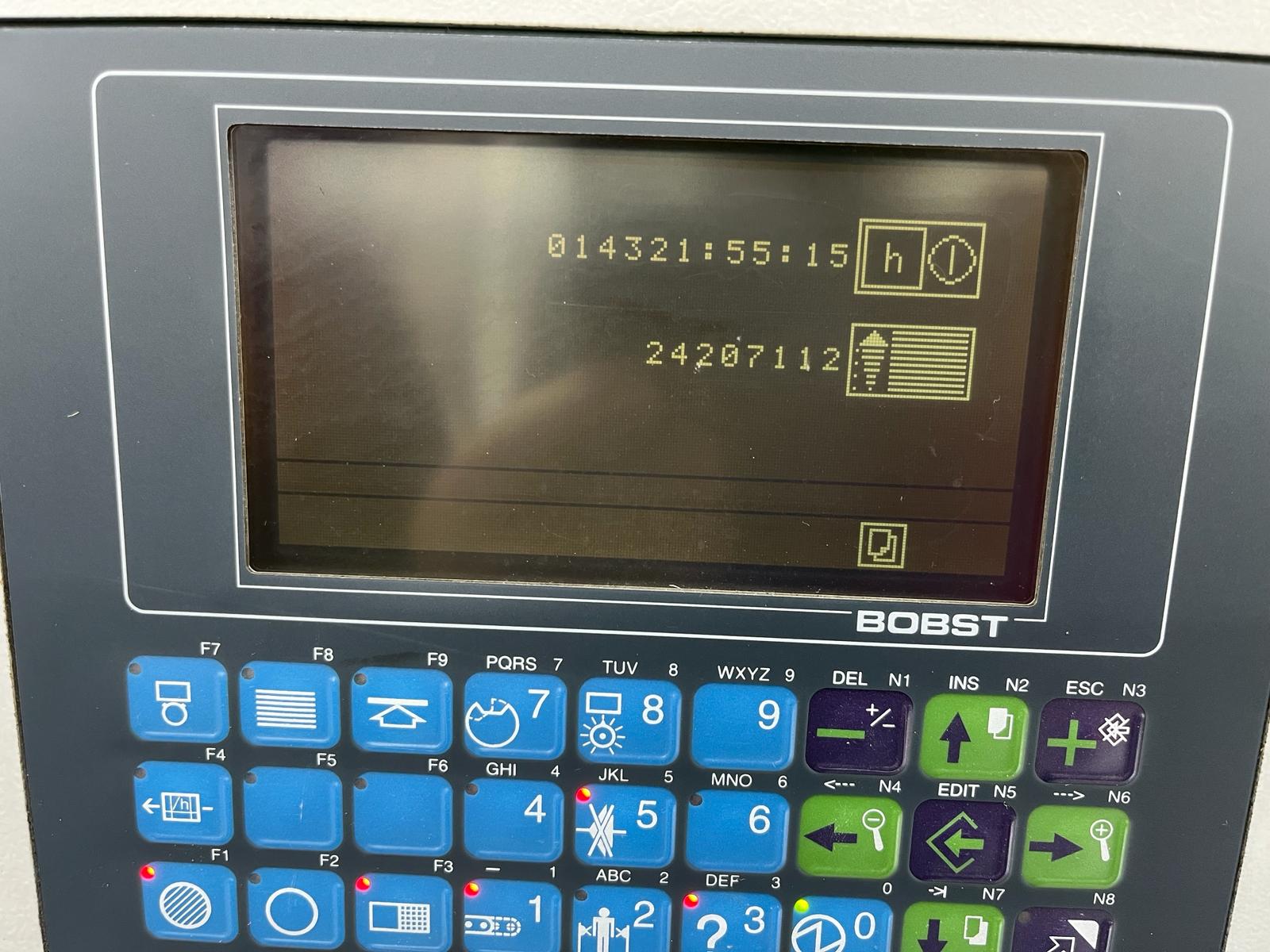

| N.of Impressions | 24 mio. |
| N.of working hours | 14000 |
“EXTRA” Accessories Overview
- Micrometric system with compensation plate 3 mm and 1 mm small sheet metal
- CENTRAL PULL-OUT FRAME QUICK LOCK ON STRIPPING UNIT WITH ALL ITS TOOLS
- Non-stop delivery with grill
Reference Overview
| Reference | 24036417 |
|---|---|
| Visible | Sbm Rebuilding Center of Robecco sul Naviglio (MI) |
| Availability | Immediately |
